1325 wood carving cnc router 3kw water cooling
- 200 Set / Sets per Month
- Qingdao ( Ningbao Tianjin Shenzhen is also ok)
- T/T Credit Card
Product Details
Condition: | New | Laser Type: | CO2 | Applicable Material: | Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood |
Cutting Thickness: | 15mm wood for laser, 30mm for CNC router | Cutting Area: | 1300x2500mm | Cutting Speed: | 0-30000mm/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | RD/Leetro 6525 |
Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Shandong, China | Brand Name: | SUKE |
Model Number: | SK1325 | Certification: | CE, Other, CE, FDA | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

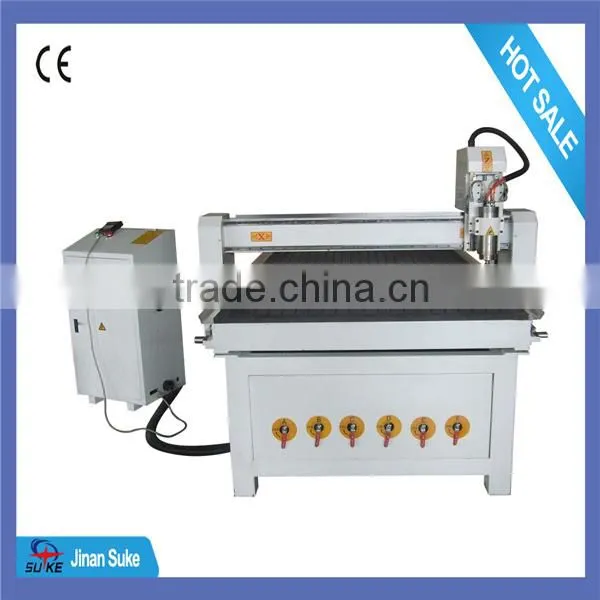

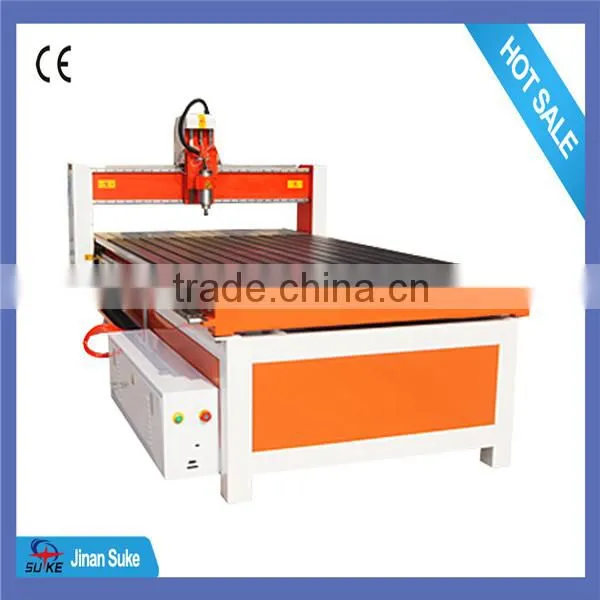

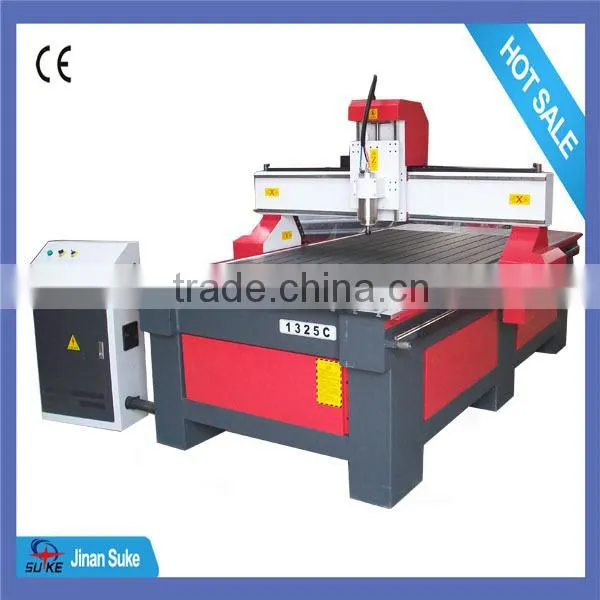

1325 wood carving cnc router 3kw water cooling
One machiine is a combination of CNC ROUTER and CO2 laser engraving cutting machine.
Laser machine parts can engrave and cut nonmetal materials with her slim laser beam. While CNC router can cut big thickness by her high power.
CNC router Part
Technical Parameter | |
Model | SK1325 |
Working area (x*y*z) | 1300*2500*200mm |
Vacuum system | Steel Structure lathe bed and T-slot of sectional material |
Work holding | By Vacuum table |
X Y movement | Rack and gears |
Z movement | Ball screw/ German |
Guide/rail | High precision Square rail, 20mm width |
Precision (mm) | 0.07 |
Positioning accuracy (mm) | 0.02 |
Repeatability (mm) | 0.02 |
Idling speed (mm/min) | 20000 |
Working speed (mm/min) | 15000 |
spindle | 3 kw air cooling (0-18000rpm) |
Available tools (mm) | Φ3.175~Φ12.7 |
Motors | Stepper motor |
Driver | Leadshine 860 |
Working voltage | AC220V±30V, 50HZ |
Command code | G code (*.nc,*.mmg, 8.u00, etc.),*.eng |
Control system | DSP system |
Software | ArtCam/ Wentai software |
Auto lubrication system | Yes |
Y axis | Double motor for Y axis |
Compatible software | Compatible with any software generating G code file in window 98/XP/7 |

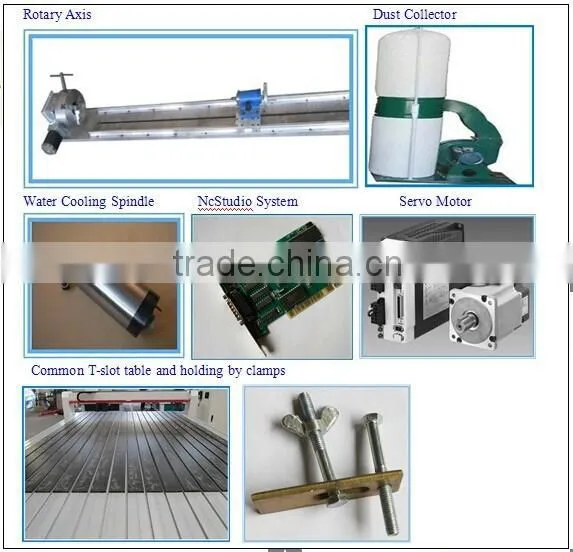

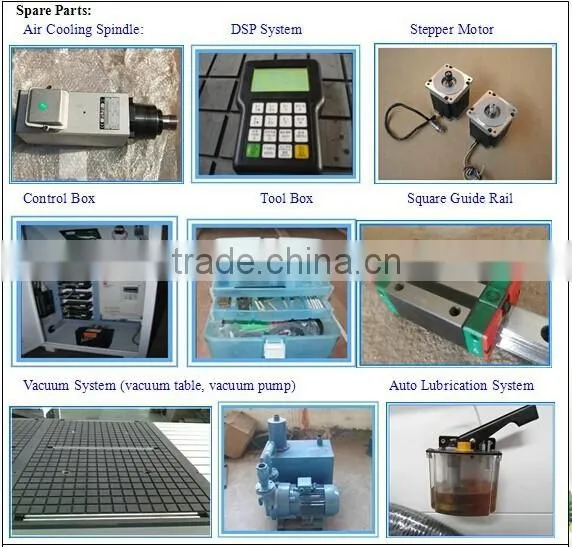

Spare parts of CNC router
Optional Parts for CNC router
---------------------------------------------------------------------------------------------------------
Laser machine part
Technical Parameter | |
Model | SK1325 |
Working area(mm) | 1300mm*2500mm |
Laser tube power | Reci Z6 (130w-160w) |
Working life of tube | 10000 hours for Reci laser tube |
Engraving speed | 0 - 60,000mm/min |
Cutting speed | 0 - 30,000mm/min |
Resetting positioning accuracy | 0.01mm |
Laser tuber cooling | Water cooling |
Max power | About 1kw |
Machine control | DSP controlling |
Working platform | Honeycomb table or knife table |
Power supply | AC 110 - 220V , 50 - 60Hz |
Min. shaping character | Chinese 2mm*2mm,English 1mm*1mm |
Supported graphic | BMP, PLT, DST, DXP, and AI |
Driving system | Stepper motor |
Assistant equipment | Exhaust-fans, CW5200 Chiller, air pump |
Software supported | CorelDraw, AutoCAD , Photoshop |
Software | Laser works |
Sample Photo

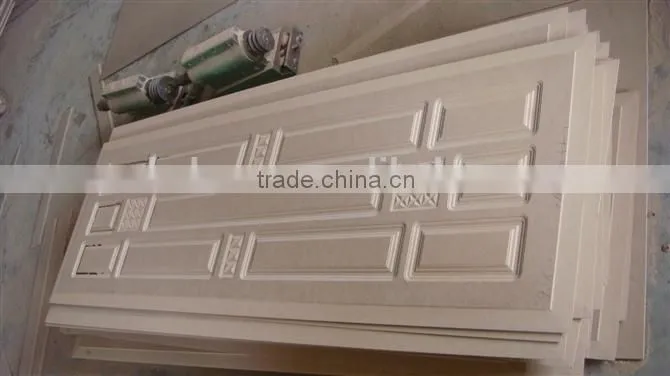

Made by CNC router part
Made by CO2 laser engraving cutting mahcine part
Machine Package

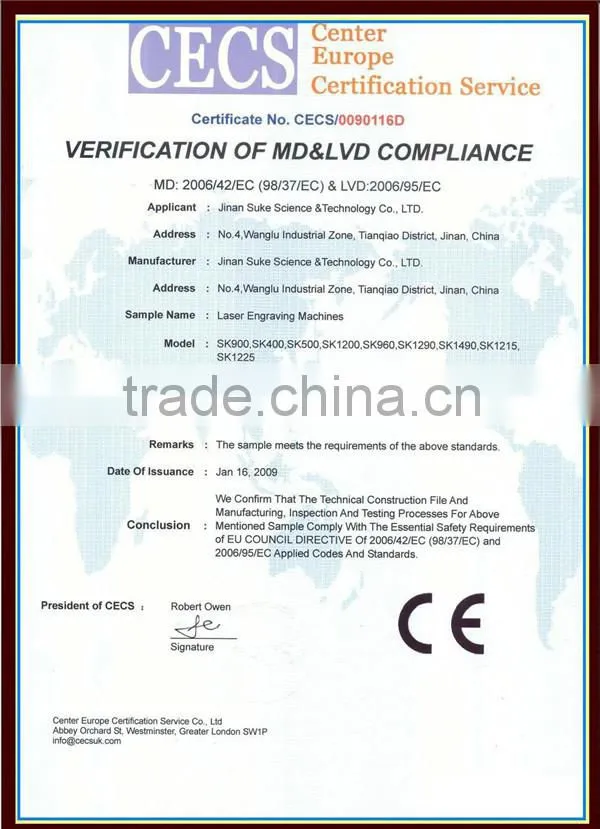

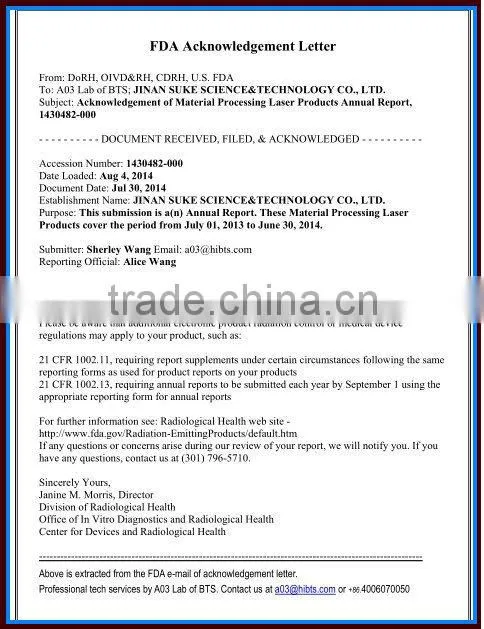

CE & FDA certificate
Warranty Term
1) One year for machine body.
2) 10montys for Reci laser tube
3) 6 months for assistant parts of laser machine, such as chiller, air pump, exhaust fan.
4) 3 months for reflection mirrors and lens.
If any interesting, please don't hesitate to contact us!
My Skype: sukelaser5
WhatsApp: +8615853160596
Best Regards
Wendy
