Specifications
3D engraved cristallum laser artificia1. 2000 Hz diode end pump
2.mass production available
3.5-7 days free training
3D engraved cristallum laser artificia
Applications and materials:
Craftwork, s ouvenir, photography for tourism, hotel, gallery.,etc.
Crystal crafts, acrylic,glass, and other transparent materials.
This is the most suitable for shopping mall, scenic spots, middle-high-end consumer place, exhibition site of crystal laser engraved processing. It can also be used for printing shops, wedding photography, souvenirs and personalized gifts shops, etc
Technical feature:
1. High engraving speed makes production and on-spot customization more efficient, helping customers to improve their production capacity, and expand the volume of business.
2. High resolution (different machine type has different resolution) to ensure the effect of delicate carving, realistic, exquisite which can be compared with original photos or real objects.
3. High Stability. We adopt the advanced End-pump laser technology in the world in order to make the machine more stable, longer life time and lower cost.
4. Intelligent Software. Friendly software interface with multi functions, can read 3D / 2D graphic data processed by point cloud software directly, no need to use a third-party software to convert format, easy to use.
Parameter:
Model | SK-602A |
Laser medium | YAG |
Laser wavelength | 532nm (green laser) |
Max. pulse energy | 1mJ(0.5mJ) |
Max. laser power | 2W |
Frequency | 2000 Hz
|
Pump source | Diode/USA |
Pump source lifetime useful life | 20000hours |
Original place of Laser medium | German |
F-theta lens(mm) | German F:160
|
Laser heads | 1 |
Resolution (DPI) | 800-1200 |
Engraving speed (dots/min) | 100,000-140,000/min |
Working way | 1 scanner |
Drive System | servo motor ( Japan) |
Engraving range(mm)
| 100*100*100 F-theta lens 160 |
Engraving time | 558 crystal(400,000points) About 2.5 min. |
321keychain(140,000ponits) About 1 min. | |
Repeated location accuracy | 5μm |
Continuous working time | >12hours |
Power consumption | 1KW |
Cooling way | Air Cooling/ Water cooling |
Power supply | 220V or 110V±10% 50Hz or 60Hz |
Warranty | 1 year |
Machine dimension (mm) of Whole machine(mm)
| 550 ×580×700 |
Total Weight (kg) | 120( machine 80KG with package, Camera 40KG with package) |
Computer | CPU:P4 2.8G, Memory 1G,Harddisk 80G,17”LCD |
Software | Laser photo, Laser image, Laser control (The software is developed by lead laser) |
Circumstance temperature | 15-30°C |
Relative humidity | <75% |
Training time | 3 days |
Laser class laser | 4 |
Laser class system | 4 |
Remark | This quotation included 1 set engraving system, one operating computer for machine, carry metal box for machine, operating software installed in the computer, more than 2000pcs 2D/3D images data installed, free training at our side, whole life maintenance and technological support, manual and spare parts. |

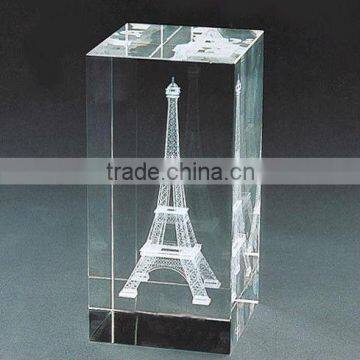

Sample:
If you are interested in our machine,please feel free to contact with me,I'll reply as soon as possible.
skype:sukelaser3
