Four Heads Laser Cutting Machine 1610

Name: Four Heads Laser Cutting Machine 1610
Brand: suke
SKU: 128045753
Availability: InStock

Jinan Suke Science & Technology Co., Ltd.

US$ 10,000 - 30,000 MOQ: 1 Set

Key Specifications

Laser Type:

CO2

Place of Origin:

Shandong, China

Brand Name:

suke

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Laser Type CO2

Place of Origin Shandong, China

Brand Name suke

Model Number sk1610

Specifications

Four Heads Laser Cutting Machine
1.CE&FDA
2.USB laser cut
3.DSP offline operated
4.LCD panel

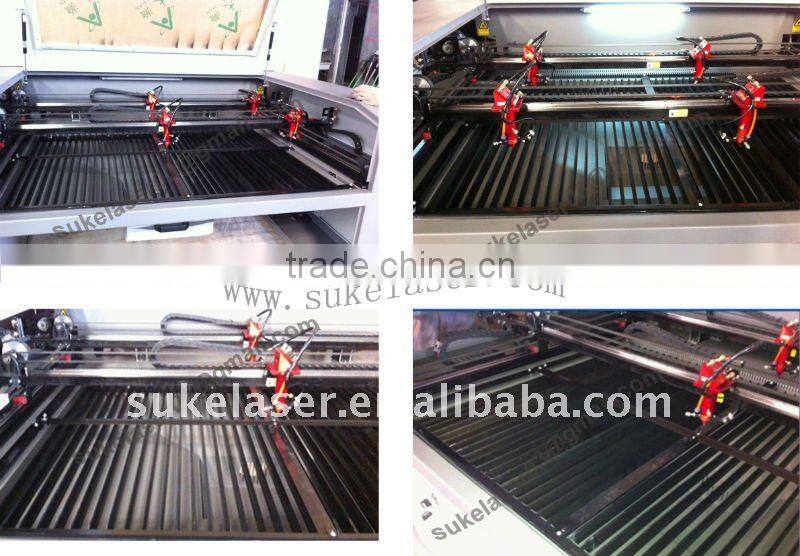

Four Heads Laser Cutting Machine

Features:

Double X axis, Four laser head, more efficient!
The distance between each laser head can be adjustable,easy to change;Support only one or two laser head working.
Equipped with imported square linear guide and focusing lens,have higher precison,and the cutting edge is smooth.
Use high quality reci tube,more stable and durable. With 10000 hours lifespan and 9 month warranty for laser tube.
Use double three-phase driver and motor for X axis. (Japanese Panosonic servo motor for optional)

Machine:

Technical parameters:

Working area(mm)	1600*1000mm
Laser tube power(laser source)	80w /100w/130w/150w RECI tube
Laser heads	4, double X axis
Working life of tube	10000 hours
Engraving speed	0 - 60000mm/min
Cutting speed	0 - 30000mm/min
Resetting positioning accuracy	0.01mm
Laser tuber cooling	Water cooling
Laser type	Herietic and detached co2 laser tube
Z axis moving	Automatic
Max power	Less than 1kw
Machine control	DSP controlling
Display Panel	LCD display showing current file name, total working time, laser power, engraving speed, files loaded into memory buffer, setup and diagnostic menus
Electricity	AC 110 - 220V , 50 - 60Hz
Min. shaping character	Chinese 2mm2mm,English 1mm1mm
Supported graphic	BMP, HPGL, PLT, DST, DXF, and AI
Driving system	Stepper motor
Assistant equipment	Exhaust-fans, water pump air pump.
Computer interface	Standard printer port and USB port
Software supported	CorelDraw, AutoCAD , Photo shop
Additional parts	Rotary attachment
	Red dot
	Water chiller
	One set of Lens and mirrors
Software	Laser cut
Operating temperature	0°C~45°C
Operating humidity	5%~95%
English manual	Tell you how to run the laser machine and also the problems and solutions
