Help CenterDie Board Laser Engraving Cutting Machine
Related Products
Specifications
Die Board Laser Engraving Cutting Machine1.DSP control system
2.USB interface
3.Sealed CO2 laser glass tube
4.10-15 days

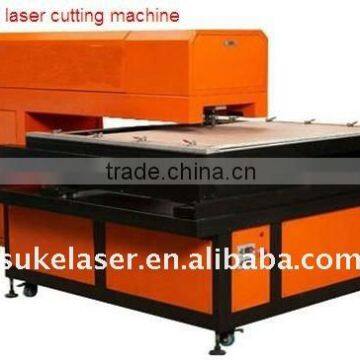

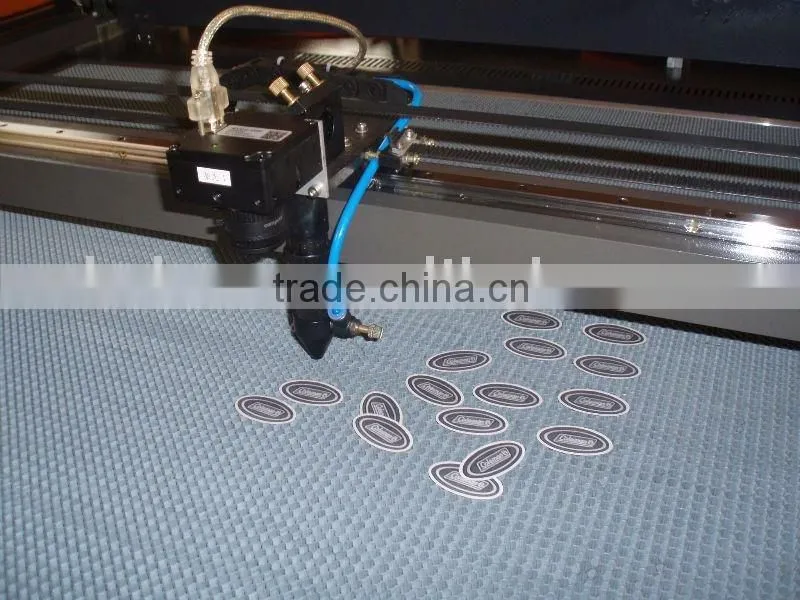

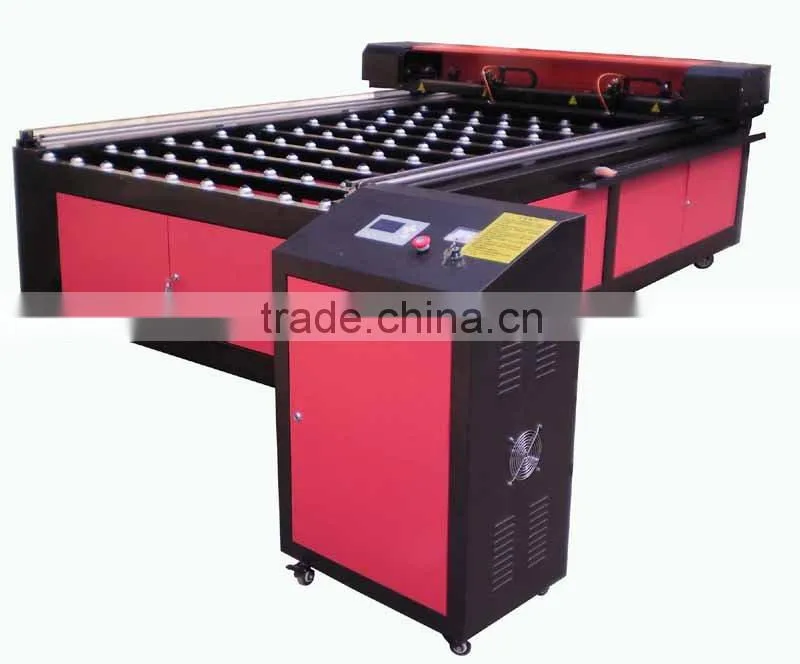

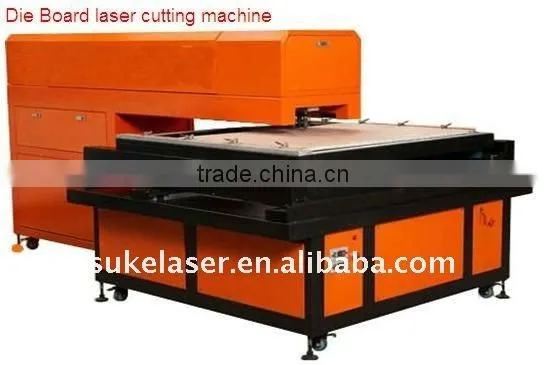

Die Board Laser Engraving Cutting Machine
Applicable industries :
Die cutting, double faced adhesive tape processing ,printing and packing ,advertisement, furniture , package template cutting, advertising material cutting, home decoration, aeromodelling material processing arts and crafts industires and so on.
Applicable materials
Metal ,die board ,wood ,acrylic ,perspex ,MDF ,leather ,film ,compound materials ,etc.
Features:
1.strong, rigid, high precision, reliable and durable.
2. High-performance driven motor to ensure that the machines high speed and accuracy
3. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred
4.Fast speed, good quality5.Use imported optical parts---reliable and stable
6.Die cutter design software
7.Compatility,compatible Type 3/Artcam/Castmate/Wentai,and so on a variety of CAD/CAM design software.
8.Good quality and high precision, Laser die cutting process is controlled by computer.
Technical parameters:
| Model | SK1512 Die board Laser Engraving Cutting Machine |
| working area | 1500*1200mm |
| Laser power | 350W-4000W |
| Laser type | Sealed CO2 laser glass tube with high quality |
| Engraving speed | 1000mm/s |
| Cutting speed | 500mm/s |
| Cutting depth | 0-30mm(depend on materials) |
| Position precision | 0.01mm |
| Control system | DSP |
| Interface | USB |
| Working system | windows XP/2000 |
| Cooling system | Water cooling and protection system |
| supported graphics | *.plt,*,dst,*.dxf,*bmp,*dwg,*.al.*.las, support AutoCAD, CorelDraw |
| Transmission mode | imported precision ball screw transmission |
| Max gross power | 2KW |
| Working temperature | 5°-35° |
| Relative hunidity | 35%-75% |
Machine:
After-sale service:
1. 1 year for the whole machine
2. 3 months for laser tuber,lens and mirror
3. 6 months for equipments outfit, such as water pump, fan, air pump,ect
4. Detailed manual and video to guide the uses how to use the machine and maintenance, also
supply the specification settings for the speed and power to engrave or cut various material.
5. Other parts like electric power is broken, we can give you a new one.But for the control card,
we need you send the broken one to us and we reback you a new one.
6. If you meet the problems, we can solve it with pictures, videos ect .
7. Lifely and fast technical guide and solution within 24 hours by email and web,msn
