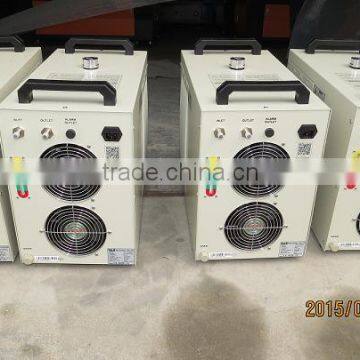

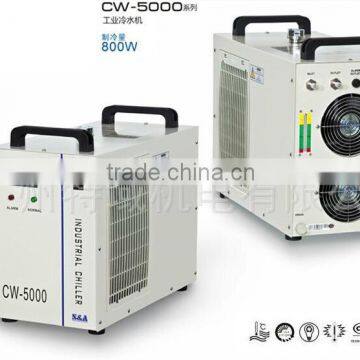

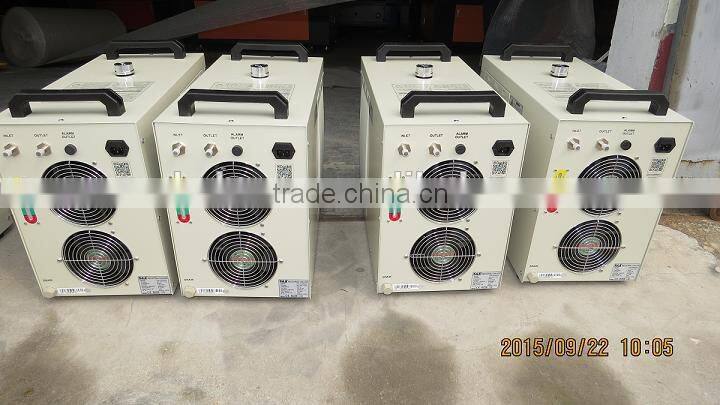

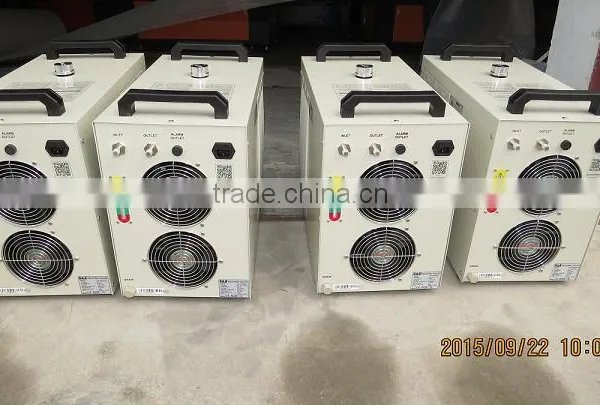

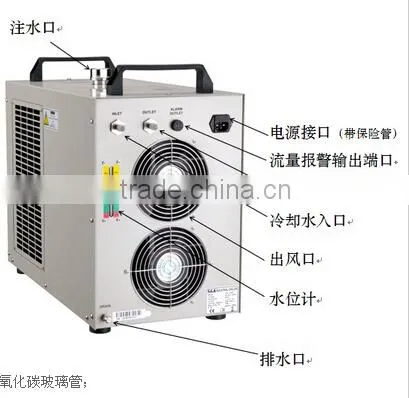

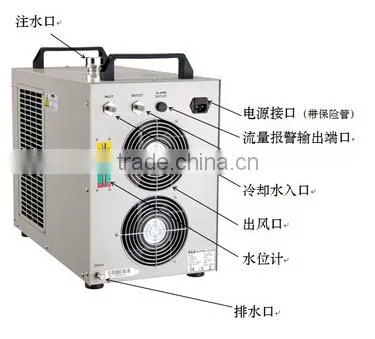

CW5200 water filter system for 100w 150w laser tube
CW-5200 is refrigeration type industrial water chiller of 1400W cooling capacity. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted. There are 2 specifications as 1 water outlet/inlet and dual water outlet/inlet, applicable to cool single laser glass tube.
Industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
Features
1. 1400W cooling capacity; optional environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.3℃ precisely temperature control;

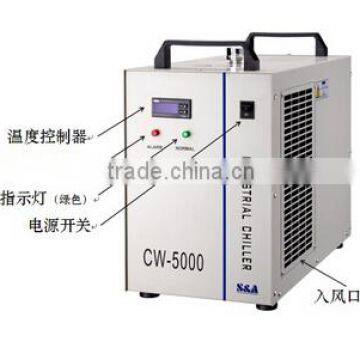

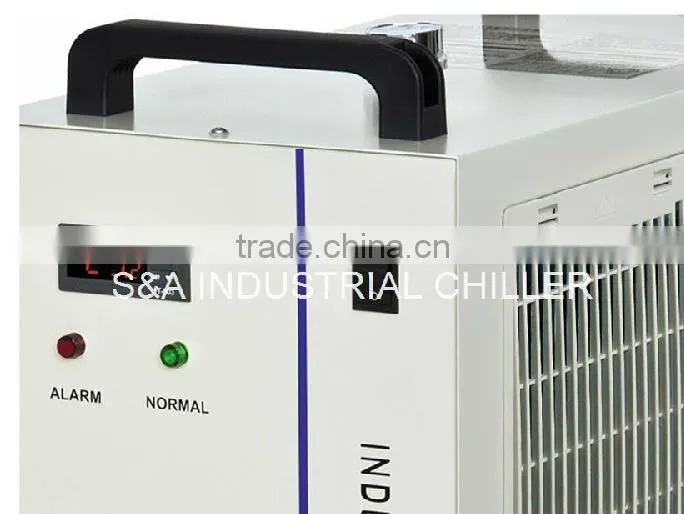

4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE approval;RoHS approval;
7. Optional heater and water filter.
Specification
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically
switch to appropriate operating temperature.
CW-5200AG: applied to cool a single 130W CO2 laser tube
CW-5200AH: applied to a cool a single 8KW CNC spindle, welding equipment or two 100W CO2 laser tubes.
CW-5200AI: applied to a cool single 50W-75W laser diode, a single15W-30W solid-state laser or a single 30W RF laser tube;
Optional: CW-5202 dual water inlet and outlet series; heat booster; water filter.
| Model | CW-5200AG | CW-5200BG | CW-5200DG | CW-5200TG |
CW-5200AH | CW-5200AI |
CW-5200BI | CW-5200DI | ||||
Voltage |
220V | 220V | 110V | 220V | 220V | 220V | 220V | 110V | ||||
Frequency |
50Hz | 60Hz | 60Hz | 50/60Hz | 50Hz | 50Hz | 60Hz | 60Hz | ||||
Current |
2.4~3.1A | 2.6~3.3A | 4.5~6.5A | 2.4~3.3A | 2.4~3.1A | 2.4~3.1A | 2.6~3.3A | 4.5~6.5A | ||||
Compressor power |
0.52KW | 0.5KW | 0.68KW | 0.49/0.57KW |
0.52KW | 0.52KW | 0.5KW | 0.68KW | ||||
| 0.71HP | 0.68HP | 0.93HP | 0.66/0.77HP |
0.71HP | 0.71HP | 0.68HP | 0.93HP | |||||
| Refrigeration capacity | 5084Btu/h | 4982Btu/h | 5186Btu/h | 4825/5797Btu/h |
5084Btu/h | 5084Btu/h | 4982Btu/h | 5186Btu/h | ||||
| 1.49KW | 1.46KW | 1.56KW | 1.41/1.70KW |
1.49KW | 1.49KW | 1.46KW | 1.56KW | |||||
| 1281Kcal/h | 1256Kcal/h | 1307Kcal/h | 1219/1465Kcal/h |
1281Kcal/h | 1281Kcal/h | 1256Kcal/h | 1307Kcal/h | |||||
| Refrigerant | R-22 / R-134a / R-410a | |||||||||||
| Refrigerant charge | 360g | 380g | 350g | 360/380g | 360g | 360g | 380g | 350g | ||||
Precision |
±0.3℃ | |||||||||||
| Reducer | Capillary | |||||||||||
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm | |||||||||||
Pump power |
0.03KW | 0.05KW | 0.1KW | |||||||||
Tank capacity |
6L | |||||||||||

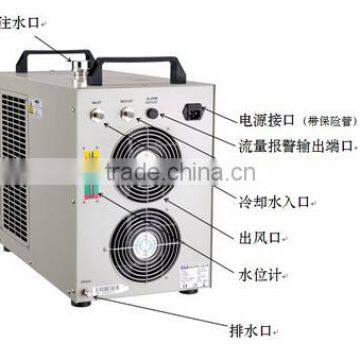

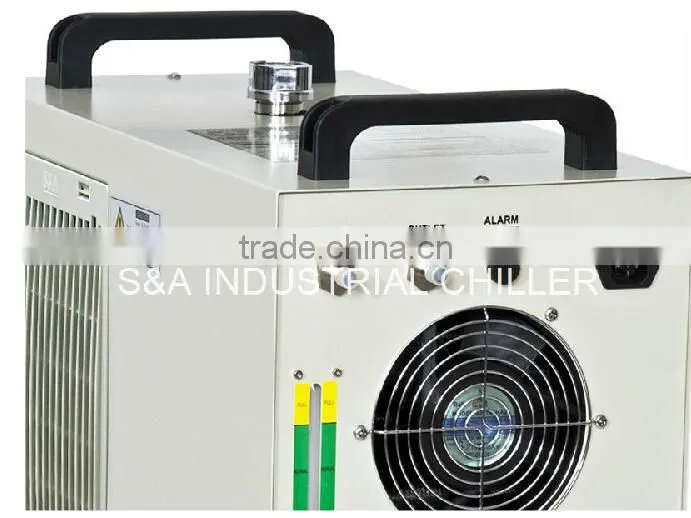

Inlet and outlet |
External Φ10mm brass connector | Φ10mm speedy connector | ||||||||||
Max. lift |
10 M | 12M | 25M | |||||||||
Max. flow |
10 L/min | 13L/min | 16 L/min | |||||||||
| N.W | 26 Kgs | |||||||||||
| G.W | 29 Kgs | |||||||||||
Dimension |
58 X 29 X 47 cm (L X W X H) | |||||||||||
Package dimension |
70 X 43 X 58 cm (L X W X H) | |||||||||||
