Specifications
1.ZFZJ-8-152.Super Steel Structure Design,the body is more stable and reliable.
3.Full use of PLC intelligent control
concrete block machine
Description:
New semi-closed hopper,inner machine has straight line reciprocating mesh,put material into block
machine molds quickly and uniform.Maximize the use of effective vibration,balance-of-will spread to Die me ministries, greater density and to improve product life-me.
Features:
1.ZFZJ-8-15
2.Super Steel Structure Design,the body is more stable and reliable.
3.Full use of PLC intelligent control and man-machine interface dialogue system.Easy random signal analysis,
fault diagnosis and various parameter settings to ensure the best running machine.
4.Brick machine without burning,Efficient, super excitation system design,the use of computer-controlled hydraulic
system flow pressure to achieve vertical synchronous vibration,frequency,brakes,and double-end composite output,
balanced efficiently vibration excitation force to the mold box ministries,greatly improved product density and mold
box of life.
5.Feeding System:Take a semi-closed mesh rotation forced feeding,feeding evenly and quickly,to ensure consistent
product strength.
6.Fitted with special brick yards board machines,can easily achieve high production,automated production,saving a
lot of manpower,maintenance yard and liquidity of investment.
Specification:
Model |
ZFZJ-8-15 |
Main machine size |
6100*2800*2660 mm |
Forming size |
900*800 mm |
Forming height |
32-200 mm |
Forming time |
11-18 s |
Tray size |
950*850 mm |
Main machine weight |
13 T |
Main motor |
37.5kw |
Capacity list:
Product name |
Specification |
PCS/Tray |
PCS/Shift |
PCS/Year |
Remarks |
Standard Brick |
240*115*53mm |
42 |
76,800 |
46,080.000 |
8Hrs/day 2 shift |
Hollow block |
390*190*190mm |
8 |
17,280 |
10,368.000 |
|
Holes Brick |
240*115*90mm |
20 |
38,400 |
23,040.000 |
|
Pathway Brick |
200*100*60mm |
22 |
42,240 |
251,420.000 |

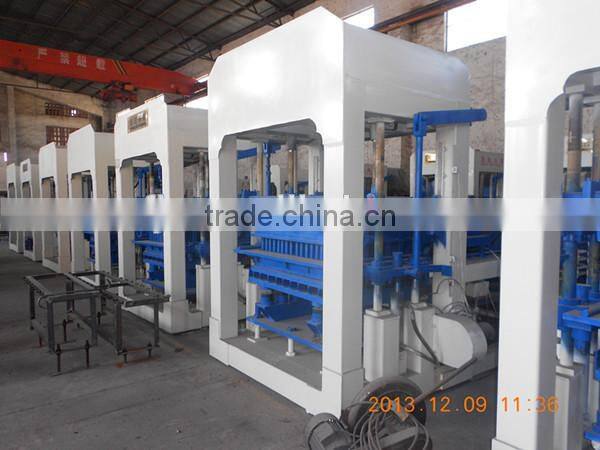

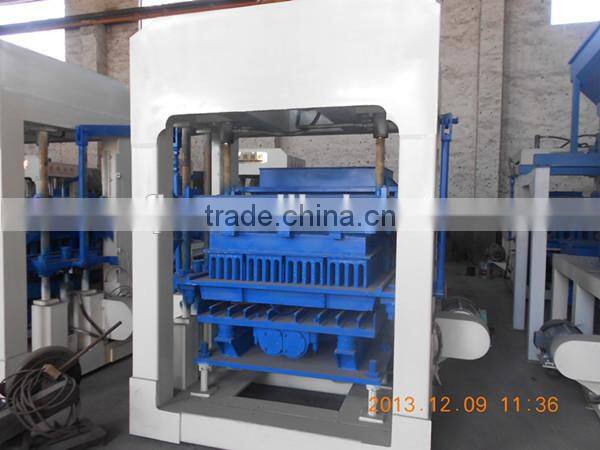

Pictures:

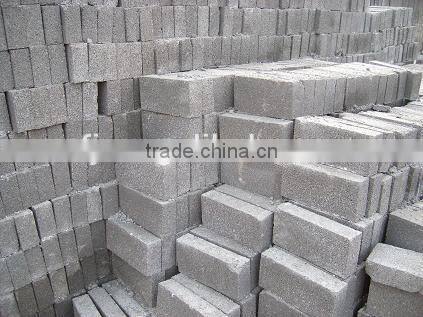

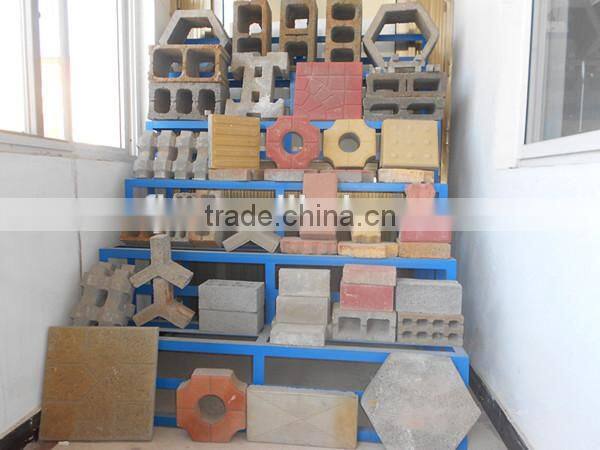

End products:
