Home > Products > Brick machine > brick molding machine website:annezf1
brick molding machine website:annezf1
- 500 Set / Sets per Month
- Qingdao
- T/T Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cinder |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 153600PCS/day | Place of Origin: | Henan, China | Brand Name: | Zhoufeng |
Model Number: | ZFXQ10-15 | Voltage: | 380V | Power: | 37.5kw |
Dimension(L*W*H): | 6100*2800*2660 mm | Certification: | ISO | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Super Steel Structure Design,the body is more stable and reliable.2.Full use of PLC intelligent control
brick molding machine
1.Main configuration:
ZFXQ10-15 Brick making machine host |
Automatic feeding board machine |
Automatic out board machine |
Distributor |
Computer control cabinet |
hydraulic pressure station |
8 m conveyor |
forced mixer |
Automatic palletizer |
Ingredients warehouse |
Cement tank(Containing 80 tons of cement pump 6 m) |
one thousand pallets |
2.Technical parameters:
Production Scale | ||||
standard | Brick size(mm) | pieces/layer board | Capacity (8hours) | Forming period (in seconds) |
Standard Brick | 240x115x53 | 51 | 100 thousand | 13-15 |
hollow block | 390x190x190 | 10 | 20000 | 13-15 |
Small eight hole brick | 240x115x90 | 25 | 50000 | 13-15 |
bloated brick | 200x100x60 | 25 | 50000 | 15-20 |
Technical parameters | |
Main machine size | 6100*2800*2660(mm) |
Forming Area | 1040*800(mm) |
Forming height | 32-200(mm) |
Molding Cycle | 15(s) |
Size of Rocking Plate | 1100*850*30(mm) |
Main machine’s weight | 14(t) |
Main power | 40kw |
3.brick machine Features:
1.the machine frame: high-strength steel and special welding technology, is extremely strong.
2.guide posts: The super special steel, chrome plated with good torsional and wear ability.
3.brick machine mold head: electromechanical hydraulic synchronous drive, the same minimum height error pallet
products, product consistency.
4.the distributor: The sensing and hydraulic proportional drive technology, forcing centrifuged at swing cloth car
action blowdown, rapid and uniform fabrics, multi-hole wall Duibu products in particular.
5.vibrators:electro hydraulic technology-driven, multi-source vibration system, the computer-controlled hydraulic drive generated by the vertical synchronous vibration, frequency auxiliary adjustable,
low frequency feeding, high frequency molding works of different materials available good tap effect, vibration
acceleration level up to 17.5.
6.the control system: brick plc computer control, human-machine interface, with international brands of appliances, integrated control program 15 years of actual production
experience, combined with the international trend, design written in order to meet national conditions, to achieve
without the professionals, just simple training can operate, powerful memory may need to upgrade equipment.
7.storage material separating devices:
computer-controlled material supply, to avoid external pressure within the material by ensuring uniform feeding,
so that products intensity error is minimal.

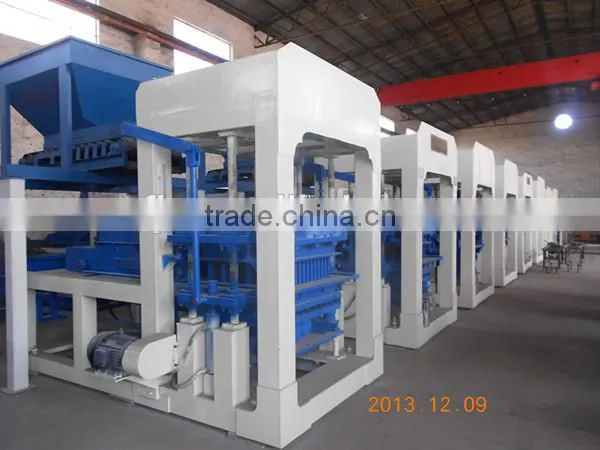

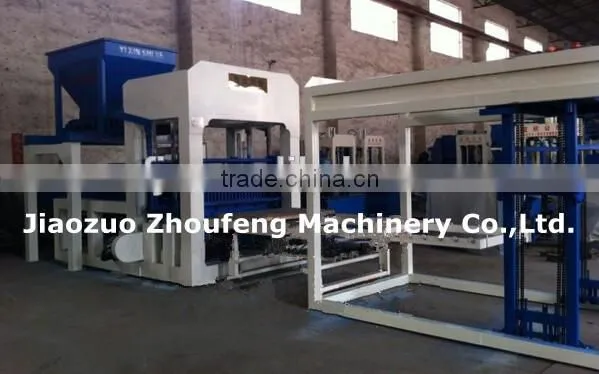

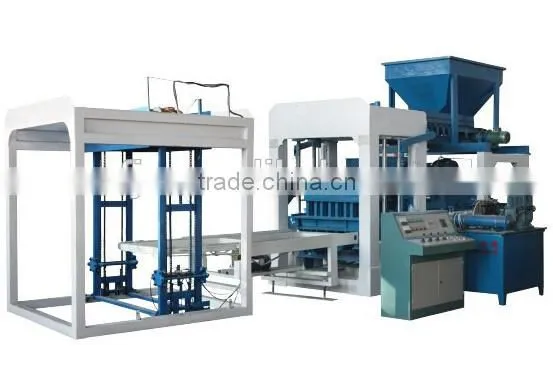

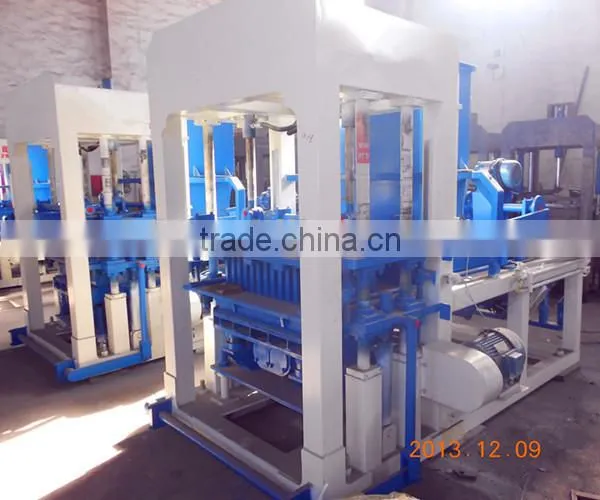

Pictures:

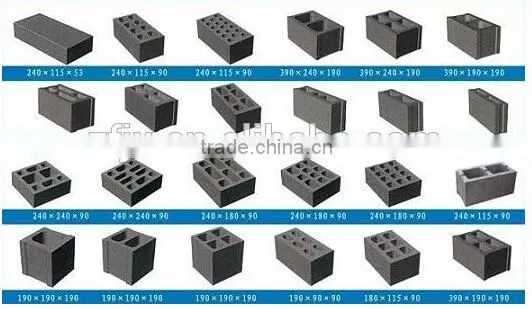

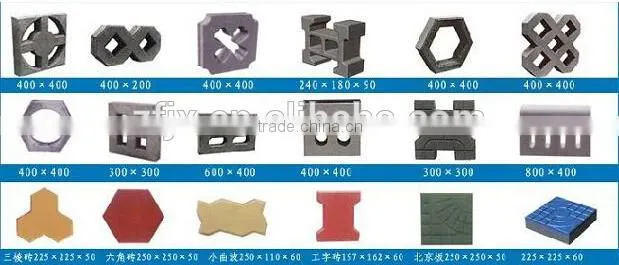

End products:
