CO2 Laser Type Metal Laser Cutting Machine 1325 Laser With 150w

CO2 Laser Type Metal Laser Cutting Machine 1325 Laser With 150w photo-1
CO2 Laser Type Metal Laser Cutting Machine 1325 Laser With 150w photo-2
CO2 Laser Type Metal Laser Cutting Machine 1325 Laser With 150w photo-3
CO2 Laser Type Metal Laser Cutting Machine 1325 Laser With 150w photo-4

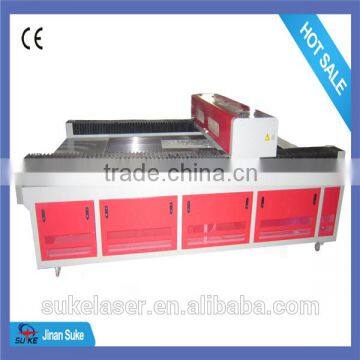

CO2 Laser Type Metal Laser Cutting Machine 1325 Laser With 150w photo-5

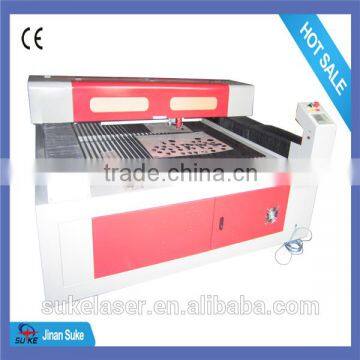

CO2 Laser Type Metal Laser Cutting Machine 1325 Laser With 150w photo-6
US$ 8,500 - 9,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Engraving Area:
1300*2500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Laser Type CO2
Engraving Area 1300*2500
Engraving Speed 0-60000mm/min
CNC or Not No
Cooling Mode Water Cooling
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Other, Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, other nonmetal materials
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Other, AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, CDR
Place of Origin Shandong, China
Brand Name SUKE
Model Number SK1325
Certification CE, Other, CE, FDA
After-sales Service Provided Engineers available to service machinery overseas

CO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150w

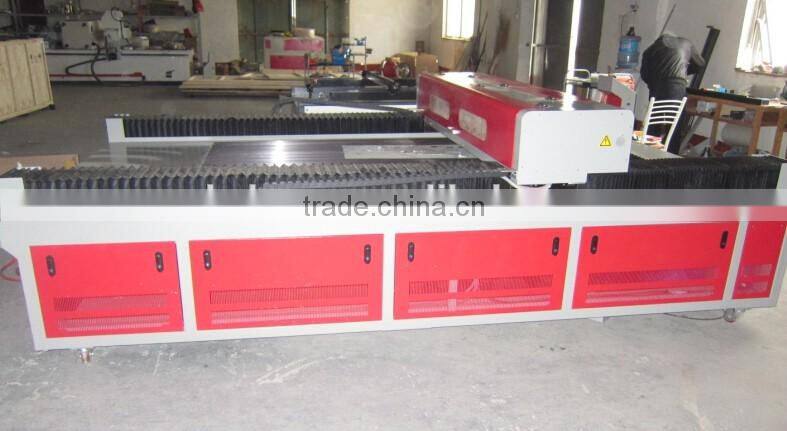

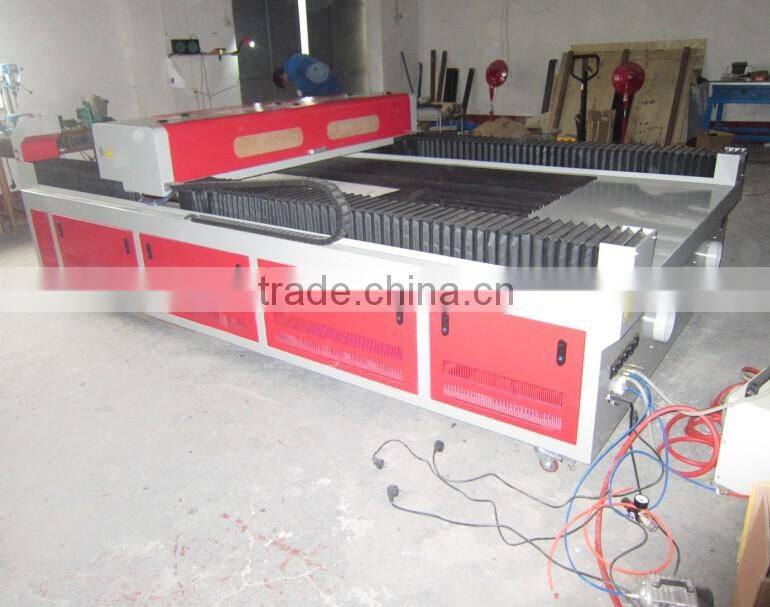

Machine pictures of the model 1325 :

CO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150wCO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150w



Technical parameter:



Technical parameters

Terms

SK1325

Working area(mm)

1300*2500mm

Laser tube power

150W Reci tube

 laser stype

Sealed CO2 laser tube, water-cooling, 10.6um

Working life of tube

10000 hours lifespan, 10 months warranty

Max Engraving speed

0 - 60,000mm/min

Cutting speed

0- 30,000mm/min

Location precison

≤0.01mm

Resetting positioning accuracy

0.01mm

Resolution ratio

≤4000 dpi

Laser tuber cooling

Water cooling with chiller CW-52000

Power supply

AC 110 - 220V , 50 - 60Hz

Min. shaping  character

Chinese 2mm*2mm,English 1mm*1mm

Supported graphic

BMP, CDR  PLT, DST, DXP, and AI

Driving system

Stepper motor

360° slope engrave

Yes

Cooling system

Water-cooling and protection system

Operating system

Windows98/ME/2000/XP/VISTA/2007

Standard accessories

(01)laser engraving cutting software --laser cut 5.3(English version)

(02)User manual of machine(English  version)

(03) User manual of software

(04)USB cable

(05)communication cable

(06) air exhaust fan

(07)air pump

(08)3 reflecting mirrors (has been installed in the machine)

(9)one focus lens(has been installed in the machine )

(10)one laser tube(has been installed in the machine)

(11) tool box that you need to repair or maintenance

(12) USB port LED panel(has been installed in the machine)

Software supported

CorelDraw,  AutoCAD , Photo shop

Operating temperature

0°C~45°C

Operating humidity

5%~95%

Gross power

≤1000w

Computer interface

USB port and Standard printer port

English manual

Tell you how to run the laser machine and also the problems and solutions

Packaging & Shipping

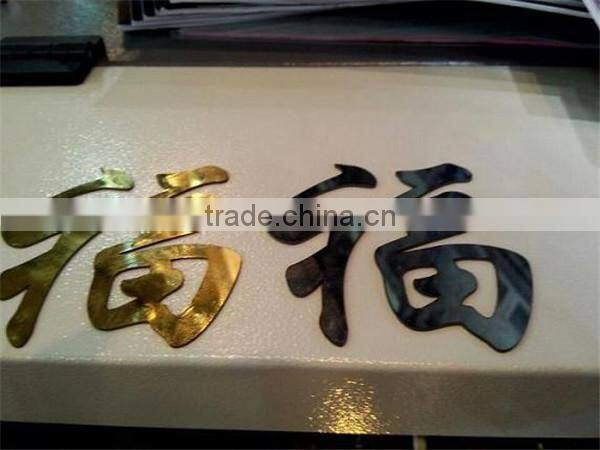

Sample pictures:

CO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150w

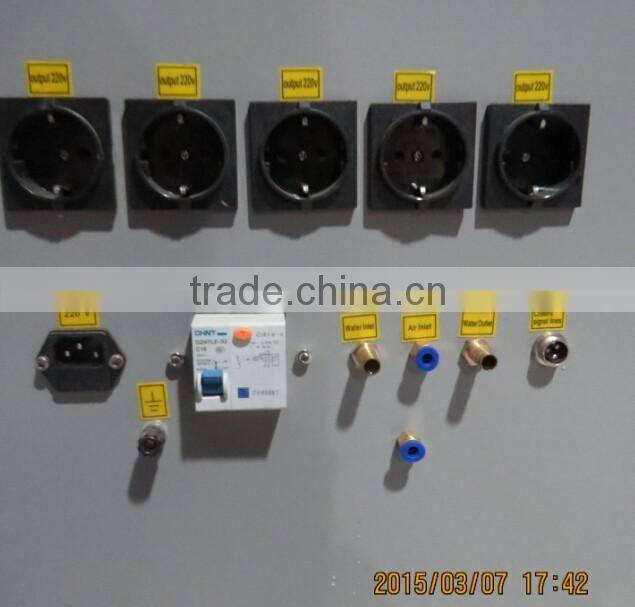

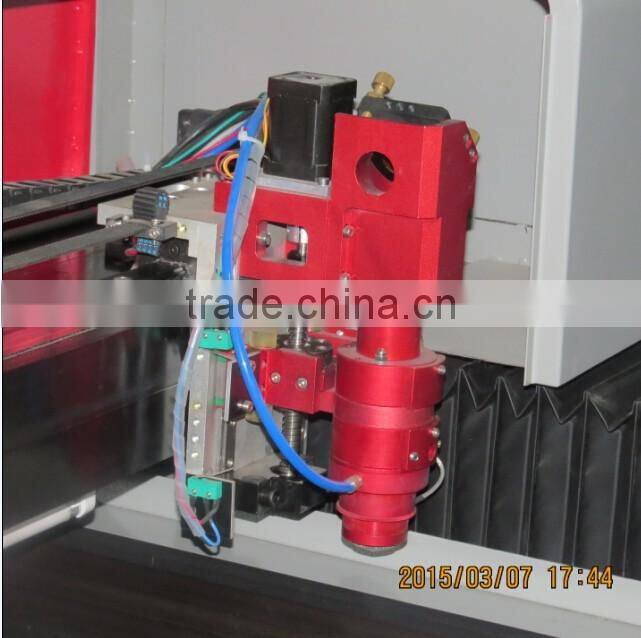

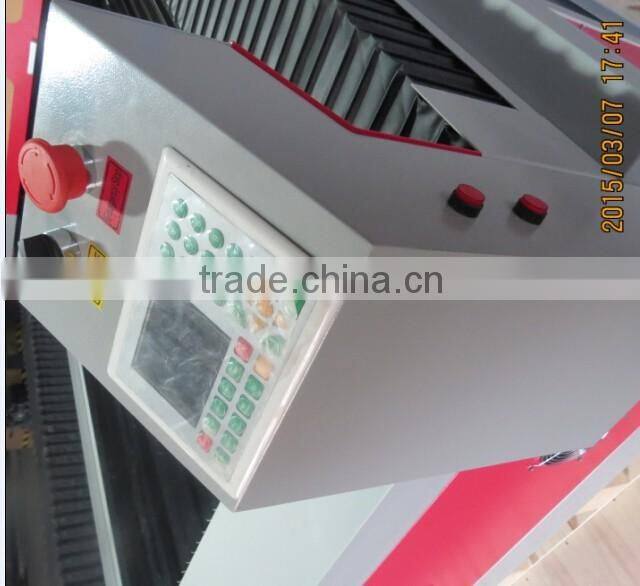

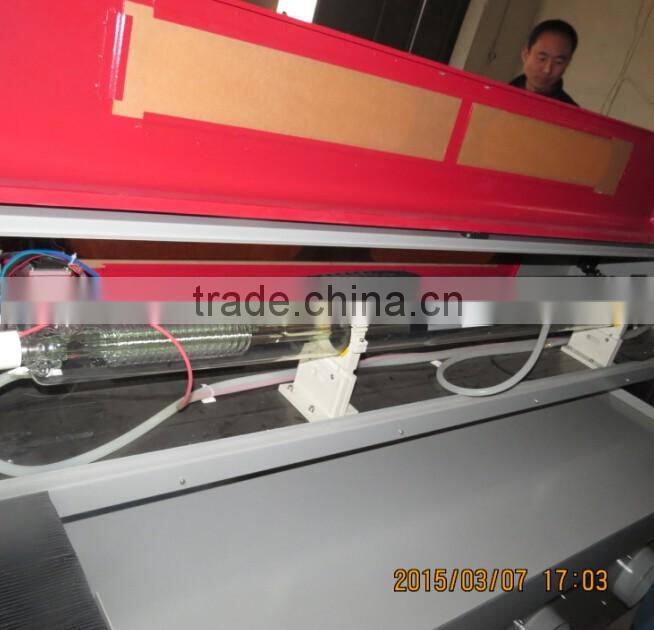

Details of the machine:

CO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150wCO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150w

CO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150w



CO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150w

Our Services



1. 1 year for the whole machine

2. 3 months for laser tuber,lens and mirror

3. 6 months for equipments outfit, such as water pump, fan, air pump,ect

4. Detailed manual and video to guide the uses how to use the machine and maintenance, also

    supply the specification settings for the speed and power to engrave or cut various material.

5. Other parts like electric power is broken, we can give  you a new one.But for the control card,

     we need you send the broken one to us and we reback you a new one.

6. If you meet the problems, we can solve it with pictures, videos ect .

7. Lifely and fast technical guide and solution within 24 hours by email and web,msn or skype!

8. We can solve all the problem that you will meet, for we are manufacturer of the laser machine

and we are familiar with the laser machine!

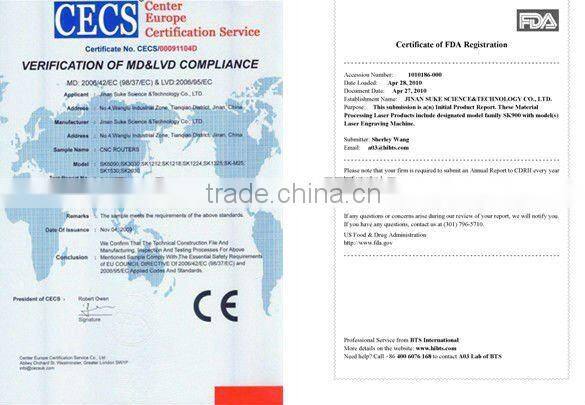

Certification:

CO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150w



FAQ



What's the guarantee, in case the machine breaks down?

The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

How about the documents after shipment?


 After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


How long is the delivery time?


For standard machines, it would be 5-7 days; for non-standard machines and customized machines according to client s specific requirements, it would be 7 to 10 days.



How's the payment?

Telegraphic Transfer(T/T).


Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

How is the packing?

 Water-proof plastic film package with foam protection in each corner

Solid Seaworthy Wood Box Package with Steel Belt


Save space as much as possible for container loading

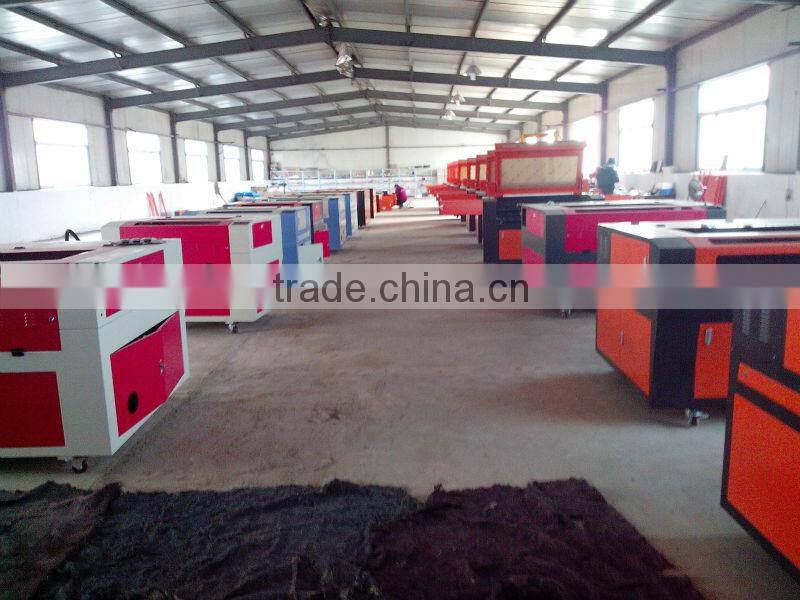

Company Information

 Our sale in Exhibition:

CO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150w

CO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150w

Please also notice that we have more laser engraver/cutter machines with different watts laser power.



SK9060

*60watts

900x600mm work area

SK1290

*80/100watts

1200x900mm work area

SK1490

*80/100watts

1400x900mm work area

SK1525

*80/100/120watts

1500x2500mm work area

SK1610

*80/100/120watts

1600x1000mm work area

SK1630

*80/100/120watts

1600x3000mm work area

]
CO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150w

CO2 Laser Type Metal Laser Cutting Machine 1325 laser with 150w
