Water Well Drilling Machine

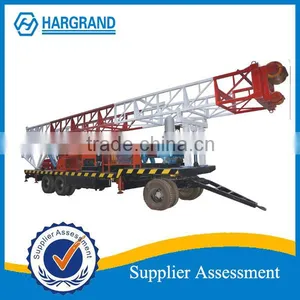

Water Well Drilling Machine thumbnail-1
Water Well Drilling Machine thumbnail-2
Water Well Drilling Machine thumbnail-3
Water Well Drilling Machine thumbnail-4

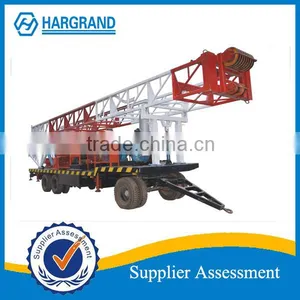

Water Well Drilling Machine thumbnail-5
Water Well Drilling Machine thumbnail-6
Water Well Drilling Machine photo-1

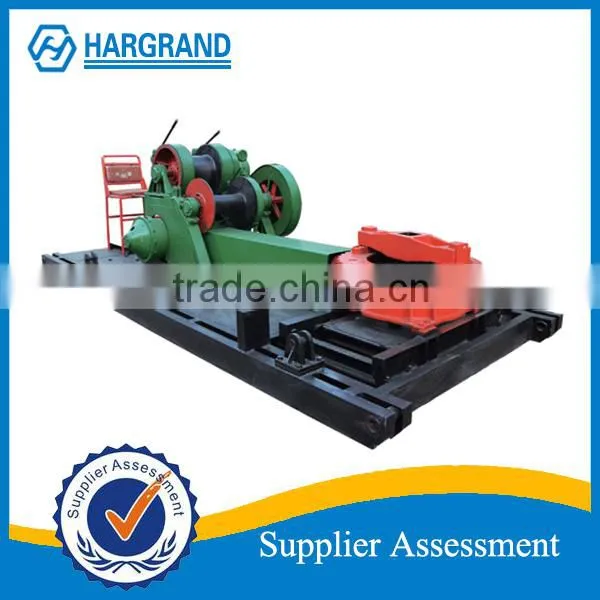

Water Well Drilling Machine photo-2

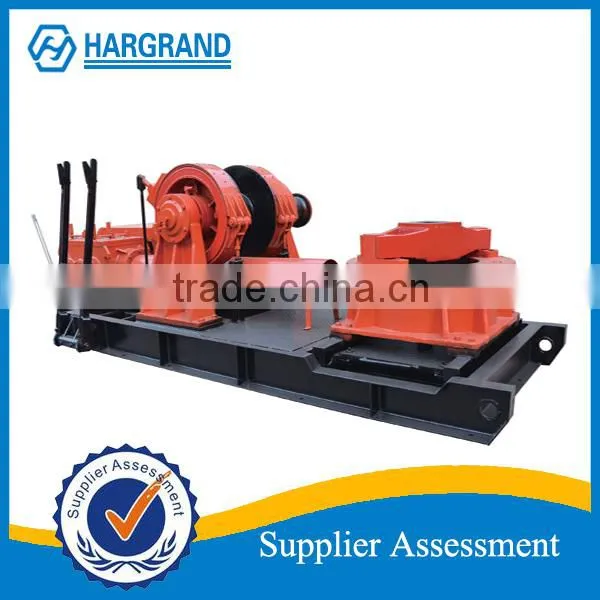

Water Well Drilling Machine photo-3

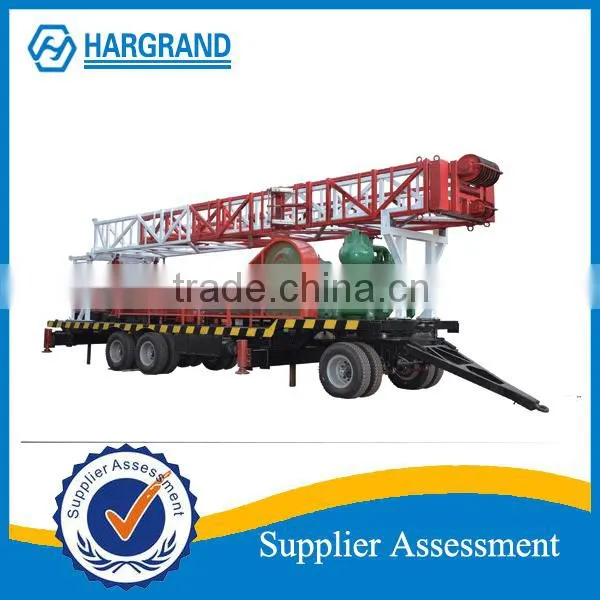

Water Well Drilling Machine photo-4

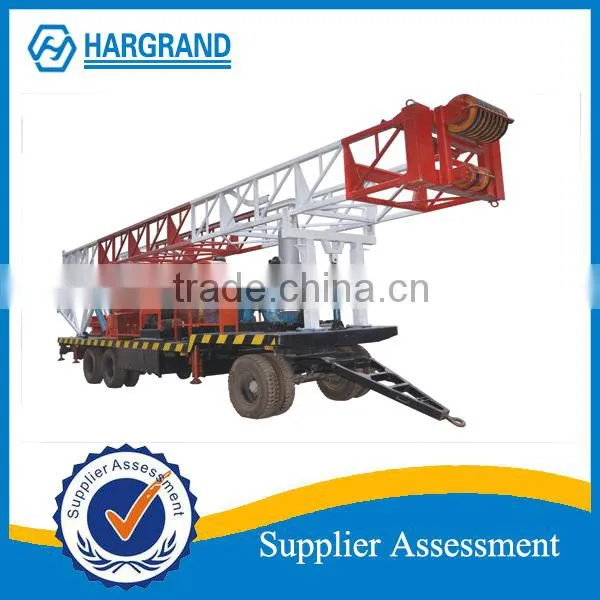

Water Well Drilling Machine photo-5

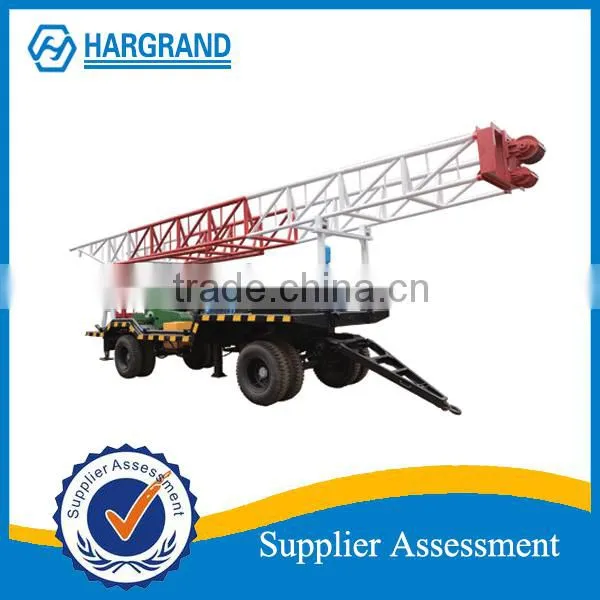

Water Well Drilling Machine photo-6
US$ 48,000 - 140,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Sanhe Hargrand Drilling Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Beijing, China
Brand Name HARGRAND
Model Number SP-300, 400, 600,
Usage Other, waterwell drill
Voltage 220v
Power(W) 37kw
Dimension(L*W*H) 7.7*2.5*11.5m
Weight 7500kg
Certification ISO-9001
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

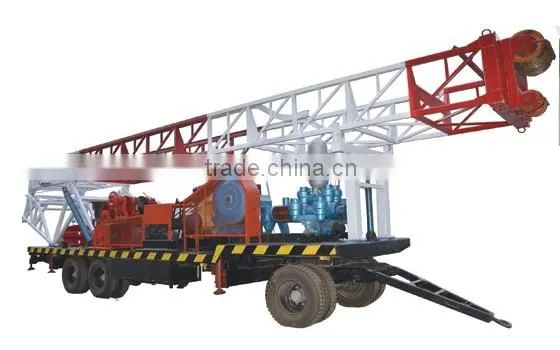

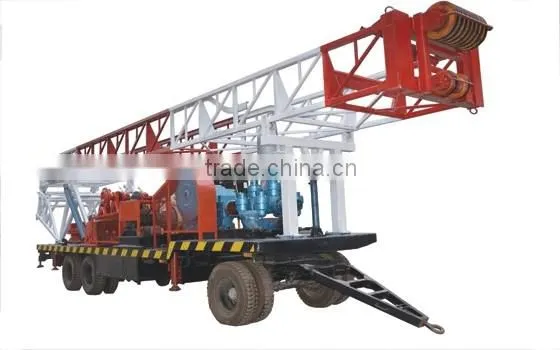

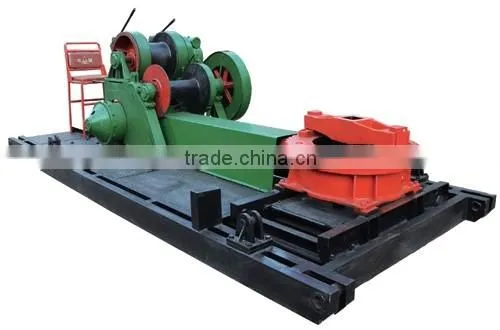

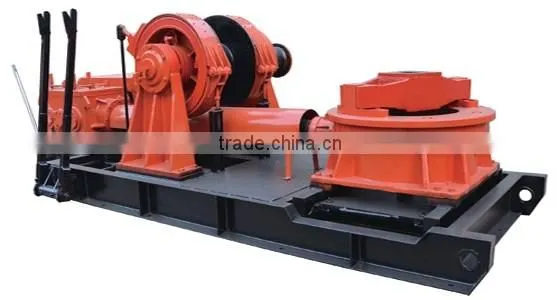

SPT-300 drilling rig consists of rotary table, master winch, auxiliary winch, gearbox, mast and chassis. The hydraulic-driven mast allows wide speed range, ease of operation, stable performance, compact structure and convenient dismantling. It is suitable to industrial and agricultural water well drilling, hydro-geological investigation and piling construction.

Standard
SPT-300
SPT-400
SPT-600
SPT-1000
SPT-2000
Diameter of rotary（mm）
Ф530
Ф530
Ф650
Ф650
Ф660
Drilling depth（m）Ф89rods
300
400
600
1000
1500
RPM（r/min）
44，77，140
44，77，140
160，89，41，23
145，84，52，37
145，84，52，37
Rotary Torque（kN·m）
16
16
25
25
25
Hoisting capacity of main winch（kN）
30
30
50
70
90
Disel power（HP）
100
100
150
260
350
Electrical motor（KW）
Y280S-4，75KW
Y280S-4，75KW
Y315S-4,110KW
Y315L2-4,200KW
Y355M2-4,250KW
Drill Mast height（m）
11
15.2
15.2
15.2
15.2
Mast capacity(T)
20
20
36
50
70
Mud pump
BW850/20
BW850/20
BW850/20，BW1000/20
BW850/5A，BW1200/3
BW1200/3，BW1200/7
Dimensions（m）
7.7×2.5×3.6
10×2.5×3.6
10×2.6×3.66
10×2.6×3.66
10×2.6×3.66
Total weight（T）
7.5
12
15
22
26
HARGRAND Service

Pre-Sales Service

* Equipment and tools Inquiry and consulting support.

* View  Factory.

After-Sales Service

* Drilling consulting available for drilling ,how to use  the rigs and  tools.

* Engineers available to service machinery.

Packing & Delivery
Packaging
20' GP
5.69*2.13*2.18m
40' GP
11.8*2.13*2.18m



Packaging Details

The rig can the loaded into 20 or 40' container.

The normal tools and other parts package is fumigated wooden box.
Packaging
Package
fumigated wooden box



Packaging Details


the small rigs use fumigated wooden box.

The normal tools and other parts package is fumigated wooden box.
