YAG Laser Marking Machine for Metal Material

Name: YAG Laser Marking Machine for Metal Material
Brand: SUKE
SKU: 128037583
Availability: InStock

US$ 6,000 - 12,000 MOQ: 1 Set

Key Specifications

Laser Type:

Nd: Yag Laser

Q-Switch:

Yes

Style:

Portable

Jinan Suke Science & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Laser Type Nd: Yag Laser

Q-Switch Yes

Style Portable

Place of Origin Shandong, China

Brand Name SUKE

Model Number SK-YAG-75ZJ-II

Feature Hair Removal, Dark Circles

Specifications

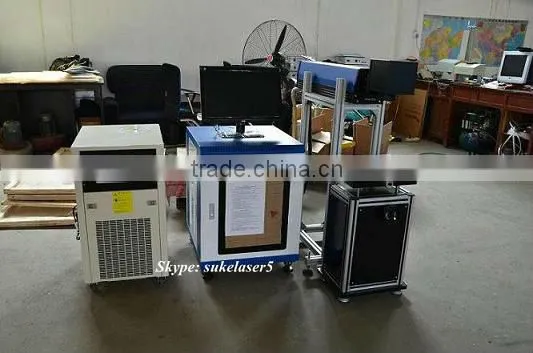

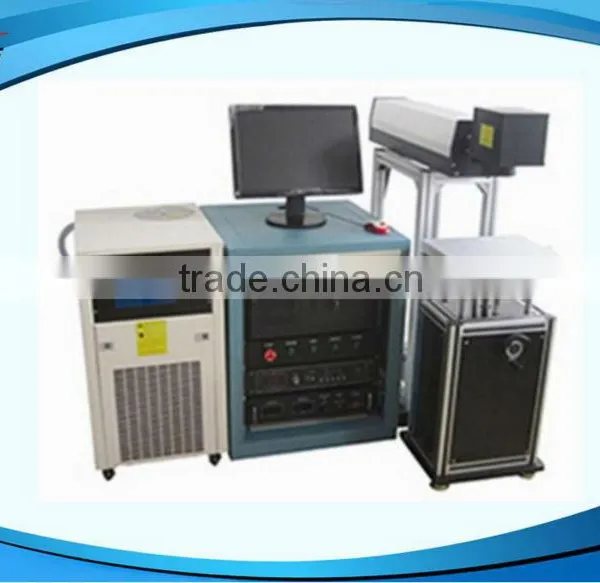

YAG laser marking machine for metal material
1. Water cooling with chiller
2.24 hours continuous operation
3.3d workbench

YAG laser marking machine for metal material

Technical Parameters:

Model Number	YAG-75ZJ-II
Max. Output Power	50W/75W
Laser Wavelength	10.64μm
Beam quality m²	m2<6
Laser repetition rate	≤50KHz
Standard Marking Scope	100mm×100mm(optional)
Carving depth	0.3mm-0.5mm
Marking Speed	≤7000mm/s
Min. Line Width	0.015mm
Min. Character	0.3mm
Repetition Precision	±0.005mm
Machine Power	1.5KW
Electric Power Demand	220V / Single Phase / 50Hz / 15A
Cooling System	Water Cooling
Accessories	3D workbench, a water-cooled machine

Feature:

It adopts the most advanced international technology
It uses the semiconductor light emitting diode pump ND:YAG medium, with the wavelength of 808nm.Causes the medium to produce the massive reverses granule, forms the wave length in under the Q switch function is the 1064nm great pulse laser output.
The electric light transfer efficiency is high.
The volume of this kind of laser is small, which is 1/4 of traditional DP laser machine.
Professional design of the laser resonator so that the output beam quality is better, the smaller laser spot, Marking lines smaller, mark for fine graphic.
At the same time together with the precision XYZ 3D workbench, able to achieve the precision positioning requirements;
Water-cooled system, with high temperature control precision machine long life of work and provides reliable protection.

Software control system

Software control system WINDOWS XP as the operating platform, Chinese interface, compatible with AUTOCAD, CORELDRAW, PHOTPSHOP multiple file output.
Marking bar codes, text, graphics, etc., PLT, DXF, BMP and other file formats, directly using SHX, TTF font.
The system can automatically encoded automatically print the serial number, batch number, date, etc.

Galvanometer scanning system
