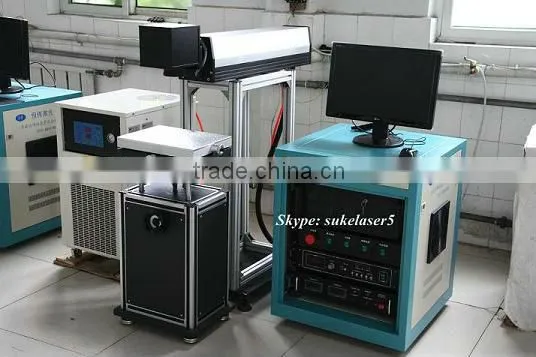

yag 50w laser marking machine

Specifications

yag 50w laser marking machine
1. Water cooling with chiller
2.24 hours continuous operation
3.3d workbench

yag 50w laser marking machine

Technical Parameters:

Model Number	YAG-50ZJ-II
Max. Output Power	50W/75W
Laser Wavelength	10.64μm
Beam quality m2	m2<6
Laser repetition rate	≤50KHz
Standard Marking Scope	100mm×100mm(optional)
Carving depth	0.3mm-0.5mm
Marking Speed	≤7000mm/s
Min. Line Width	0.015mm
Min. Character	0.3mm
Repetition Precision	±0.005mm
Machine Power	1.5KW
Electric Power Demand	220V / Single Phase / 50Hz / 15A
Cooling System	Water Cooling
Accessories	3D workbench, a water-cooled machine



Feature:

• It adopts the most advanced international technology
• It uses the semiconductor light emitting diode pump ND:YAG medium, with the wavelength of 808nm.Causes the medium to produce the massive reverses granule, forms the wave length in under the Q switch function is the 1064nm great pulse laser output.
• The electric light transfer efficiency is high.
• The volume of this kind of laser is small, which is 1/4 of traditional DP laser machine.
• Professional design of the laser resonator so that the output beam quality is better, the smaller laser spot, Marking lines smaller, mark for fine graphic.
• At the same time together with the precision XYZ 3D workbench, able to achieve the precision positioning requirements;
•  Water-cooled system, with high temperature control precision machine long life of work and provides reliable protection.

Software control system

• Software control system WINDOWS XP as the operating platform, Chinese interface, compatible with AUTOCAD, CORELDRAW, PHOTPSHOP multiple file output.
• Marking bar codes, text, graphics, etc., PLT, DXF, BMP and other file formats, directly using SHX, TTF font.
• The system can automatically encoded automatically print the serial number, batch number, date, etc.

Galvanometer scanning system

• Using imported scanning galvanometer scanning accuracy, speed, performance and stability.

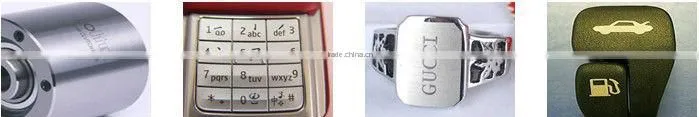

Sample dispay
