Specifications
Metal date marked pin1.Easy to move
2.Work for any metairlals, any character and letter.
3.Windows control

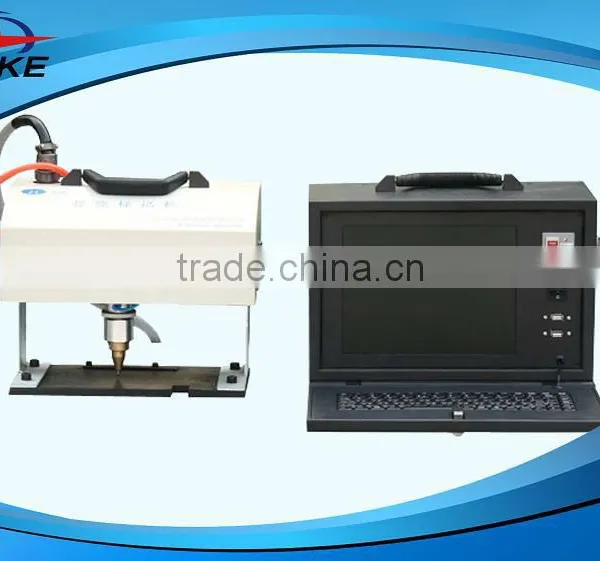

Metal date marked pin
Applications:
Used for marking large-sized workpieces or immovable parts and components on site.
Main performance:
1. Portable structure, marking head is light, easy to move marking.
2. Marking on all kinds of metal (hardness is less HRC85) and non-metal materials (PVC, plastic,
bakelite and so on).
3. Marking various character and graphics.
4. Two-dimensional table adopt precision die casting, linear motion guide, self-closing, self-lubricating
bearings, and high reliability
5. Using the the WINDOWS control software operating system, can automatically print the serial
number.
6. Very suitable for the frame, signs, large or difficult to move the workpiece marking.
Parameter table
Weight |
<20 kg (with solenoid) |
Power |
<300 W (with solenoid) |
Impact Resistance |
0-25 kg |
Operating Temperature |
-10-40 °C |
Operating Humidity |
0-90% (non-condensing) |
Air Pressure |
0.3-0.7 Mpa |
Marking Depth |
0-0.8 mm (adjustable depending on materials) |
Marking Speed |
5-120 characters/min |
Marking Mode |
Pneumatic Printing |
Marking Range |
30*110 mm; 30*130 mm; 90 *150 mm |
Marking Types |
Numbers, English Letters, Common Symbols, Chinese Characters |
||

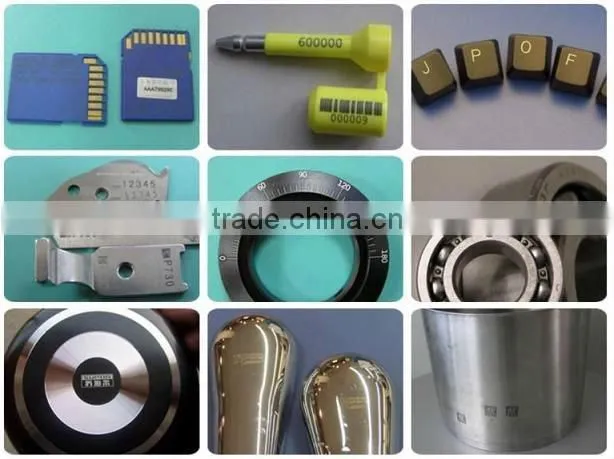

Sample display

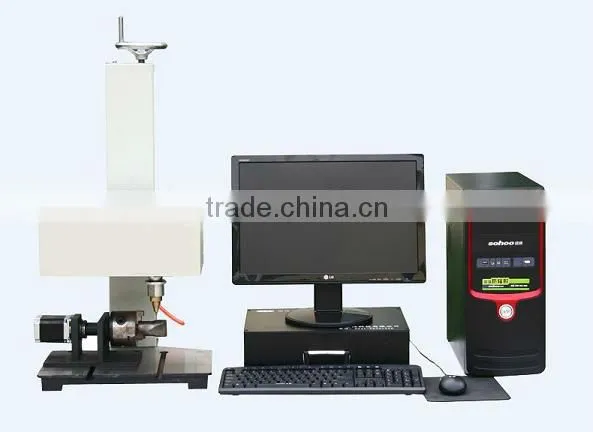

Other marking machine
