Core Drilling Machine for Mineral Exploration

Core Drilling Machine for Mineral Exploration thumbnail-1
Core Drilling Machine for Mineral Exploration thumbnail-2
Core Drilling Machine for Mineral Exploration thumbnail-3
Core Drilling Machine for Mineral Exploration photo-1
Core Drilling Machine for Mineral Exploration photo-2
Core Drilling Machine for Mineral Exploration photo-3
US$ 5,200 - 5,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Sanhe Hargrand Drilling Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Beijing, China
Brand Name HARGRAND
Model Number XY-1,XY-2B,XY-3B,HY-130,HY-180,HY-200
Usage Other, geotechnical investigation and surveying
Voltage 220v
Power(W) 12.1kw
Dimension(L*W*H) 1640*1030*1440mm
Weight 500kg
Certification ISO-9001
Warranty 6months
After-sales Service Provided Engineers available to service machinery overseas

 XY-1 core rotary drilling rig  Introduction:

XY-1 Core Drilling Rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction survey, blast holes and other drilling operations.

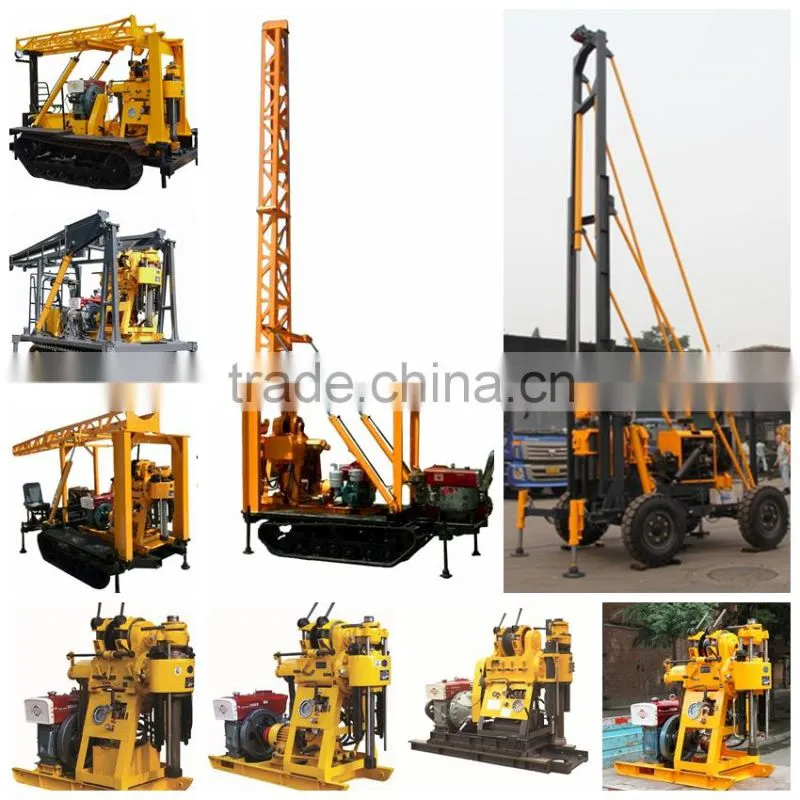

XY-1 type:    track-mounted rig,    trailer mounted rig



Drill Rigs Features:

rotary drilling rig
1.easy operation
2.lightweight to move
3.reasonable price
4.good service



Application:

1. With hydraulic automatic feeding device, elevated drilling efficiency.

2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.

3. Centralized handles, easy operation, safe and reliable.

4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.

5 lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas..



Technological Data of  XY-1 core rotary drilling rig :



Drilling depth                                                                             100m



Drill rod dia.                                                                              42mm



Initial hole dia.                                                                          110mm



Final hole dia.                                                                           75mm



Angle range                                                                              90°-75°



Dimensions(L×W×H)                                                      1640×1030×1440 (mm)



Weight(without power unit)                                                        500kg



Swivel Head



Spindle speed(3-speed)                                                   142/285/570 r/min



Spindle stroke                                                                           450mm



upward displacement speed of idling vertical spindle                0.05m/s



Downward displacement speed of idling vertical spindle           0.067m/s



Spindle pull-down max                                                               15KN



Spindle lifting capacity max                                                        25KN



Hoist



Max .lifting capacity(1-speed,single rope)                                 10KN



Cable volume (number) of hoisting drum                                   27m



Wire rope dia.                                                                           9.3mm



Mud Pump



Model                                                          Horizontal reciprocating single-acting piston pump



Displacement max



Equipped with diesel engine                                                      95L/min



Equipped with motor                                                                  77L/mm



Allowable working pressure max                                                1.2Mpa



Continuous working pressure                                                    0.7Mpa



Suction pipe dia                                                                         32mm



Discharge pipe dia                                                                     25mm

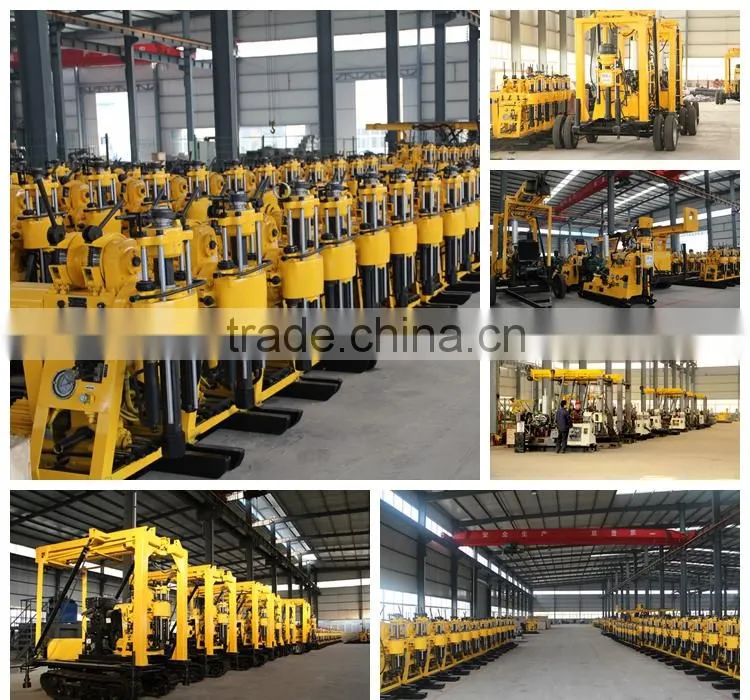

Drill rigs Factory:





XY-1 core rotary drill rig  ware house:









  XY-1 core rotary drill rig  Customer:



Quality Drill rigs Manufacturer In China  -FAQ



Payment terms:100% by TT ,



Delivery time:10 days after deposit



Supply ability:1000 pcs per month.







If you want to get more information,please contact me.



Name:Eric Qin



Skype id:hargrand163
