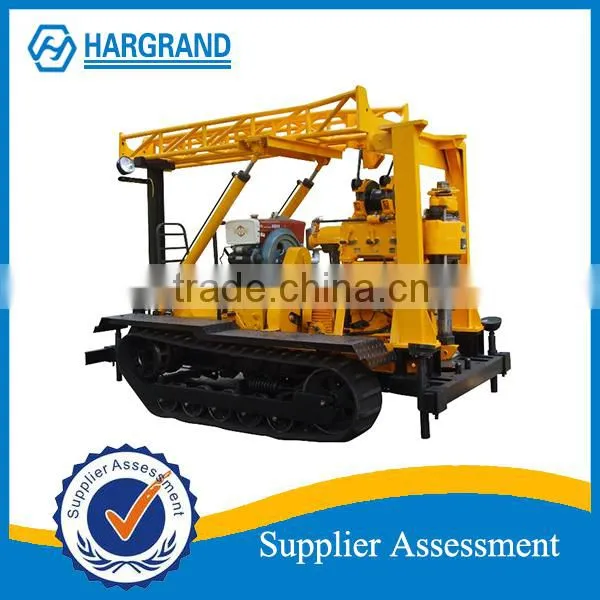

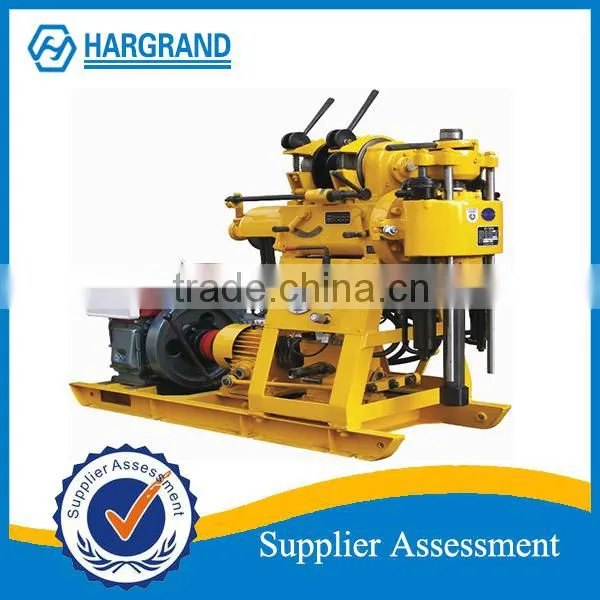

Rock Core Drilling Machine

Rock Core Drilling Machine photo-1
Rock Core Drilling Machine photo-2
Rock Core Drilling Machine photo-3
Rock Core Drilling Machine photo-4
US$ 4,200 - 9,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Beijing, China
Brand Name HARGRAND
Model Number xy-3
Usage Other, geotechnical investigation and surveying
Voltage 220v
Power(W) 12.1kw
Dimension(L*W*H) 1640*1030*1440mm
Weight 6500kg
Certification ISO-9001
Warranty 6months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

XY-3 series drilling rig is a shallow/ medium depth hole spindle type core drilling rig. The machine is mainly used for diamond drilling and able to meet the needs of various drilling technology requests. It adopts electric motor or diesel engine as power unit. The rig owns simple structure and is easy to operate.


Geological general investigation and exploration, road and tall building ground-still exploration, kinds of investigation holes in concrete structure, river levees, sub-grade grouting hole drilling and direct grouting, civil wells and earth central air conditioning wells, swallow and medium depth core drilling.

Main Features


A. The rig is equipped with latest MW525 heavy truck transmission, which owns 10 forward gears and 2 reverse gears. The transmission ensures enough reasonable speed range, and can satisfy needs of different drilling technology.

B. The rig’s spindle inner diameter is 96mm, driven by mechanical system, can output big torque. The winch can lift max. 3000kg with single line.

C. The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.

D. Spindle and winch can be operated separately.

E. Spindle borehole is of big inner diameter, able to change big hexagonal drilling rod.

FAQ

Quality Drilling Rigs Supplier-HARGRAND

Payment terms:100% by TT ,
Delivery time:10 days after deposit


If you want to get more information,please contact us
   Eric Qin
Skype:hargrand163

QQ:2811242572

Packing & Delivery
Packaging
Box
420*300*230mm
Wooden case
600*600*500mm



Packaging Details

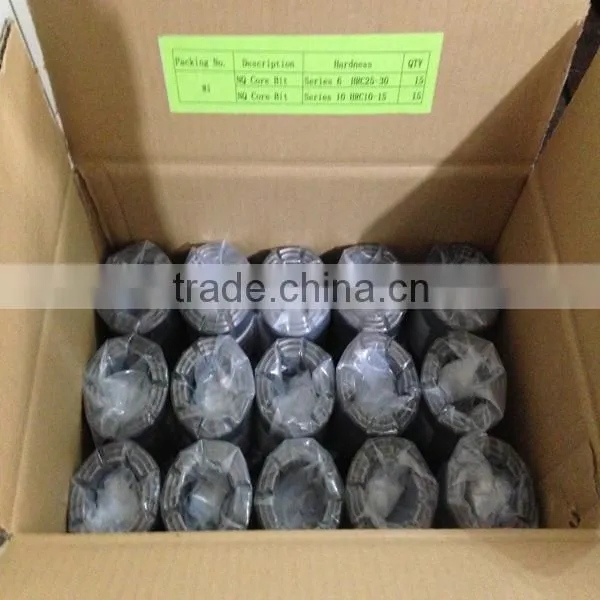

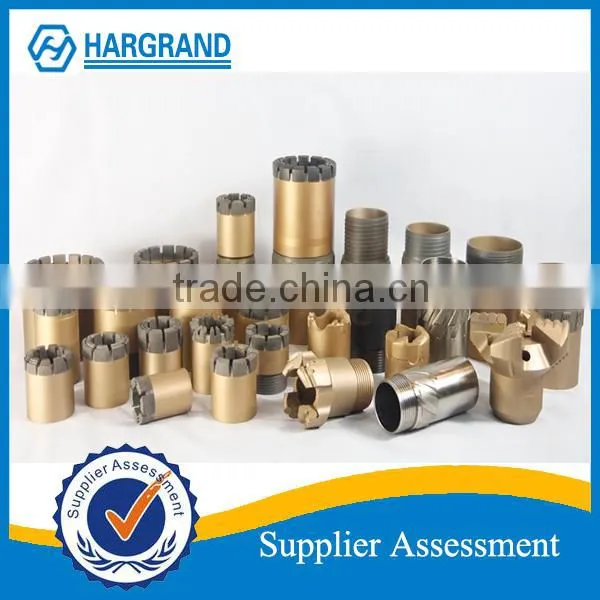

45pcs NQ bits in  Box

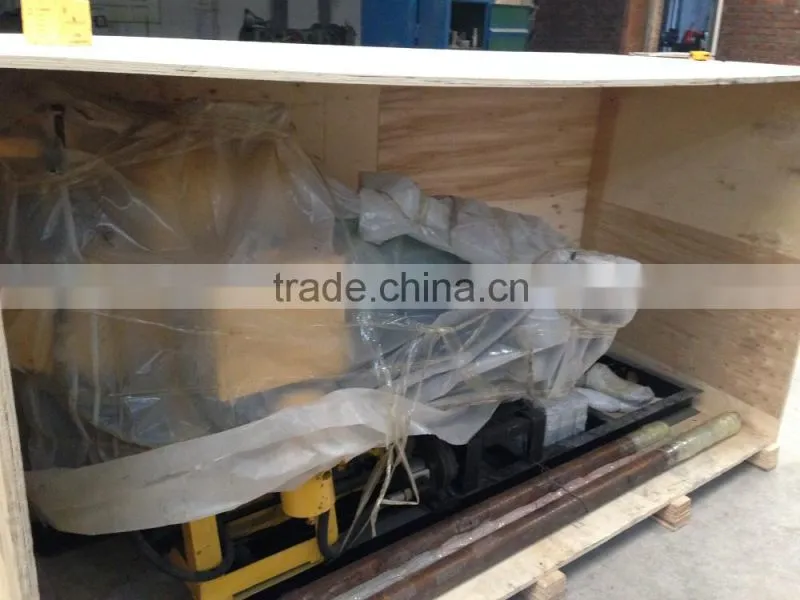

The  package is fumigated wooden box.
Packaging
Package
fumigated wooden box



Packaging Details


the small rigs use fumigated wooden box.

The normal tools and other parts package is fumigated wooden box.
Related Products

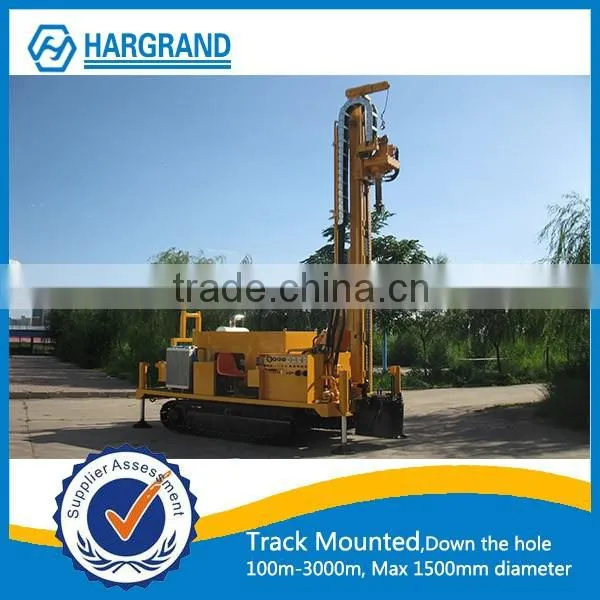

Track mounted water well Rigs

91.8% Response Rate

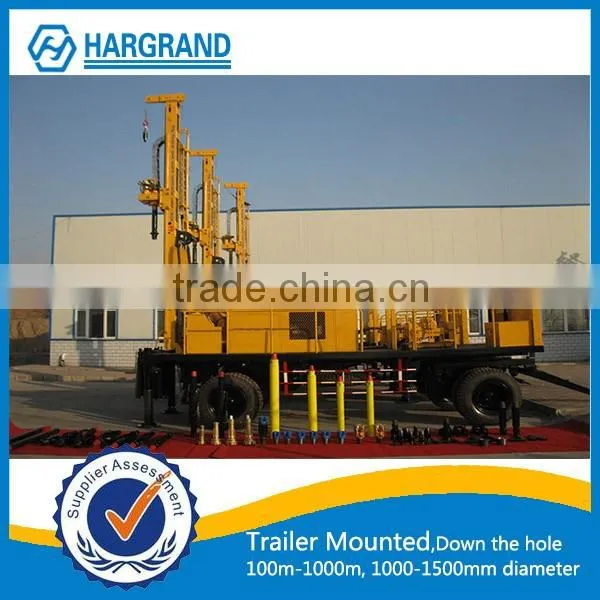

Trailer mounted borehole Rigs
