Specifications
1218 Publicidad cnc router fabricante1. 4 spindles with perfect efficency
2.NcStudio or DSP control
3. CE certificate

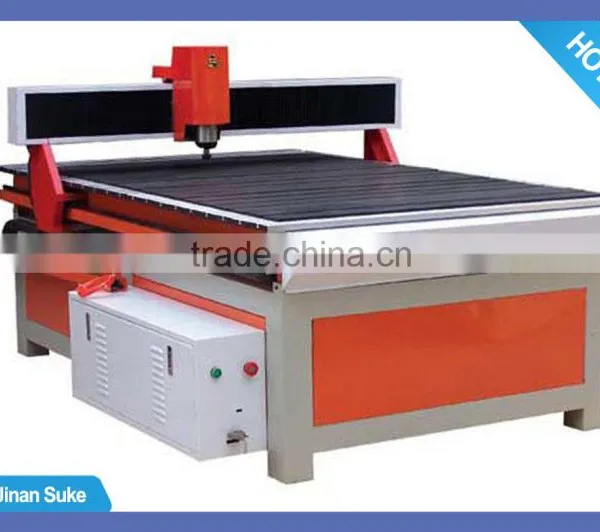

1218 Publicidad cnc router fabricante
Product Overview
Multi-heads CNC routers are suitable for high-volume small workpieces processing. Multiple heads can not only process at the same time to improve efficiency, also work alone. Detached heads or prop plate head is alternative for your need.
Technical Specification
Model |
SK1218 |
Working size (x*y*z mm) |
1200*1800*300 |
Machine Structure |
Steel structure lathe bed, and T-slot table of sectional material |
Working holding |
By clamps |
Precision(mm) |
0.07 |
Positioning Accuracy (mm) |
0.02 |
Repeatability (mm) |
0.02 |
Idling Speed (mm/min) |
9,000 |
Working Speed (mm/min) |
5,000 |
Spindle |
3kw water-cooling (0~24000rpm) |
Available Tools (mm) |
Φ3.175~Φ12.7 |
Drive System |
Stepper motor |
Working Voltage |
AC220V±30V, 50HZ |
Command Code |
G code (*.nc, *.mmg, 8.u00, etc.),*.eng |
Control System |
NcStudio |
Compatible Software |
Compatible with any software generating G code file in Window98/ xp/7 |

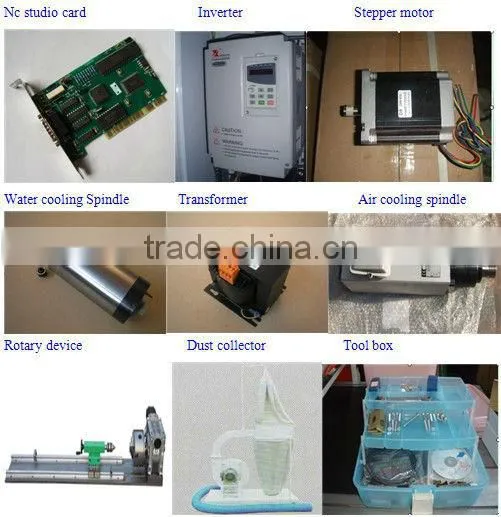

Spare Parts
Product Features
1. Multiple spindles can engrave same design simultaneously to improve processing speed greatly and complete the work of several machines.
2. Products stay in coherence and high quality during mass produce.
3. Single spindle can work independently for small processing volume to control production costs effectively and reasonably.
4. Appropriate and reasonable configuration is adjusted to fit material and work request.
5. Numbers and operate mode of spindle can be customized.
Sample Display

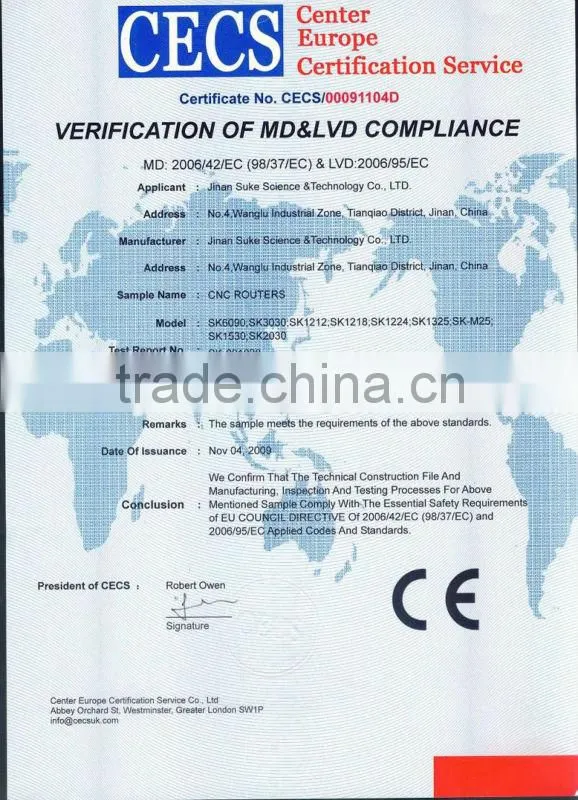

CE Certificate
Scope of application
Furniture Decoration Industry: A large area flat plate engraving, wood, panel furniture carving, wood art murals , wood cabinet doors carving.
Wood Products Processing: Sewing machine table, electrical counter table, sports equipment.
After-sales service
1. One year for whole machine.
2. Small parts will be free for you as replacement, such as common cutter.
3. Lifespan technical support for free.
4. Detailed user manual in English and video to show how to use the machine and maintance.
5. If you meet problem when using machine, will be answered within 24 hours.
We also supply other models as below: cnc router / cnc router machine
Model |
Working size |
Standard spindle power---water cooling |
SK3030-I |
30x3cm |
800w |
SK3030-II |
30x30cm |
800w |
SK6090 |
60x90cm |
1.5kw (1.5kw, 2.2kw is optional) |
SK1212 |
120x120cm |
1.5kw (1.5kw, 2.2kw.3kw is optional) |
SK1218 |
120x180cm |
1.5kw (1.5kw, 2.2kw.3kw is optional) |
SK1224 |
120x240cm |
1.5kw (1.5kw, 2.2kw.3kw is optional) |
SK1325-I |
130x250cm |
2.2kw |
SK1325-II |
130x250cm |
3kw |
SKM25 |
130x250cm |
4.5kw |
SK1530 |
150x300cm |
4.5kw |
SK9015 |
90x150cm |
5.5kw |
SK1318 |
130x180cm |
5.5kw |
SK1325 |
130x250cm |
5.5kw |
|
Note: Vacuum table, rotary axis, water sink, multi-heads are available And customize is accepted according your needs | ||
If you are interesting in any, please do not hesitate to contact me.
I will reply for you within 24 hours.
Wish we can have the chance for supplying our best service for you !
