wood pellet engraving machine CNC Router1.CE
2. Stepper motor
3. Round rail & ball screw

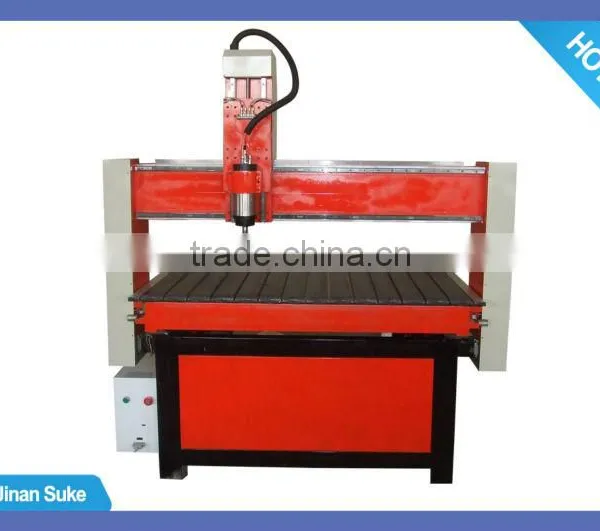

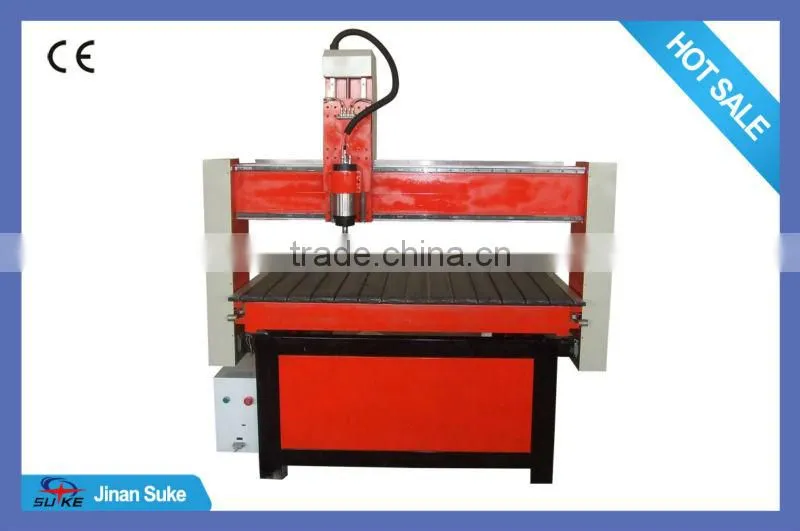

wood pellet engraving machine CNC Router
Features:
1. This machine have four heads and the heads can be work separate and together it is more easy to control and high efficiency.
2. High accuracy ball linear guide rail to ensure the high quality of machine.
3. Imported four line steel ball linear guide rail and can automatic lubrication for slider and when the machine work it will be relax to ensure the accuracy and work strong
4. Machine have breakpoint memory, can be continue work when machine suddenly stop
5., All imported linear square orbit axis.
6.Three-axis full waterproof, dust-proof structure.
7.Imported bearings, constant torque, low-noise high-power water-cooled spindle.
8,Taiwan transducer with stable output signals.
9,With high resistance to bending flexible cable and imported electronic components and durable.
Applicable Material:
Furniture, door , wood.. acrylic, plastic, copper, PVC Boards ,stone and so on.
Applicable Fields:
Advertising, Architectural model, Crafts and gifts, Mold making industry, Crafts and gifts, Mold making industry, Craftwork model, Wood industry, Sign and marks, Metal board cutting, ,Window decoration, Door board, Photo frame, Wave board.
Technical parameters:
Model |
CNC router SK1325 with four heads |
XY working area |
1300*2500mm |
Z working area |
200mm |
Table size |
1400*2800mm |
Working mode |
Spindle |
Spindle power |
1.5KW |
Spindle speed |
0-24000r/min |
Processing precision |
0.05mm |
Repositioning precision |
0.02mm |
Work Table structure |
Aluminum alloy table |
XY structure |
Ball screw |
Transmission |
X,Y axis adopt rack, Z axis adopts high precision ball screw |
Max Moving Speed |
25m/min |
Max, working speed |
12m/min |
Drive System |
Stepper |
Control system |
DSP |
Power Supply |
AC220V/50HZ |
Software Support |
Type3 software, wentai software |
Operation command |
G Code |
Operating System |
Computer |
Operation circumstance |
Temperature: 0°C~45°C |
Some of information:
1.Imported bearing
2.Supporting plate gantry structure

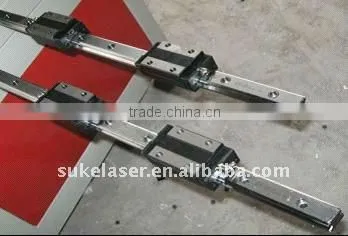

3.Imported linear square guide way
4.Rotary axis
5.DSP offline controlling system with USB interfaces
6. Dust collector
Just contact with me if any interested or question of enquiry.
Thanks!
