Specifications
High quality wood router lathe 1200X1800mmCE certificate
German ball screw & import guide
Breakpoint Memory

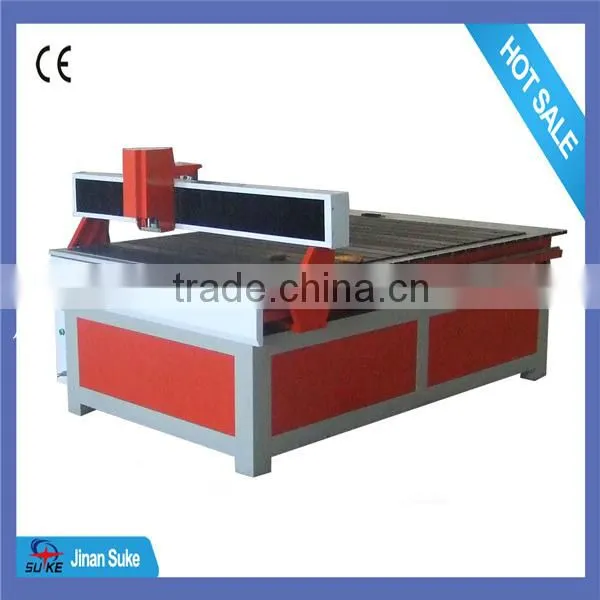

High quality wood router lathe 1200X1800mm
Performance parameter
Model |
SK1218 |
X, Y Working area |
1200mm*1800mm |
Z Working area |
>100mm |
Table size |
1340X2020mm |
Max speed |
5-7m/min |
Max working speed |
3-3.5 m/min |
Working delicacy |
0.005mm |
Repositioning accuracy |
0.05mm |
Command code |
G Code*.u00*.mmg*.plt |
Surroundings for software |
Windows98/2000/XP |
Power (not including the spindle) |
450kw |
Working voltage |
AC220V/50HZ |
Main axle power rate |
1.5kw |
Main axle rotating speed |
0-24000rpm |
Working mode |
Stepper |
Weight |
650kg |
Optional device |
Dust collector Water tank , rotary axis |
Standard features | |
|
1) German high precision ball screw with two nuts and imported guide 2) The CNC router adopt mode of saving the intermittence, it adopt imported linear guide track, so it has high precision, its life is 2200 times longer than the ordinary machine. 3) It adopt high speed driver, which speed is 2 meter quicker than the original models. 4) X axle adopt dustproof structure, it ensure long-term running function of the machine and it is a great change than the primary machine. 5) Performance in continuing engraving after point breaks and blade breaks. Hold more than 9 points. Engrave at discretion. 6) Good compatibility ,Compatible CAD/CAM , such as type 3, Artcarm,castmate, Wentai. Coredraw, etc, it can make fancy embossment,shadow engrave and 3d arts. 7) High power frequency water cooling main spindle can cut 20-30mm organic glass for one time, it is used for advertising, mould gift, architecture, furniture mould and so on. | |
Warranty terms | |
|
1. 1 year for the whole machine 2. Detailed manual and video to guide the uses how to use the machine and maintenance, also supply the specification settings for the speed and power to engrave or cut various material. 3. If you meet the problems, we can solve it with pictures, videos etc . 4. Lifelong and fast technical guide and solution within 24 hours by email and web,msn or skype! | |
