Help Center4 Axis CNC Router 180 Degree Rotatable Spindle Head
Related Products
-
Auto Tool Changer With Four Axis CNC RouterNegotiableMOQ: 1 Set -
Aluminum Panel Cnc Router Machine Double HeadsUS$ 8,000 - 10,000MOQ: 1 Set
-
Italy HSD Spindle ATC Wood Cnc RouterNegotiableMOQ: 1 Set
-
4 Axis Cnc Wood Router Taiwan Syntec ControlUS$ 15,000 - 25,000MOQ: 1 Set
-
Cnc Router With 4 Axis 180 Degree Rotatable Spindle HeadUS$ 15,000 - 25,000MOQ: 1 Set
Specifications
4 axis CNC Router 180 degree rotatable spindle head1. 1300x2500mm size
2. 4.5/6/7.5kw spindle
3. CE certificate

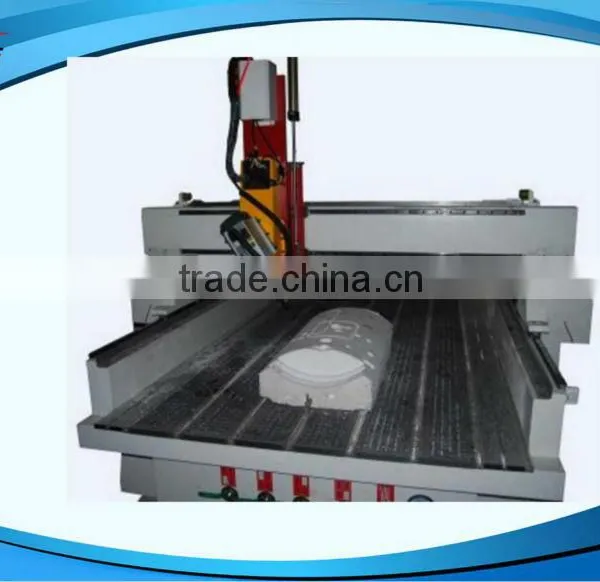

4 axis CNC Router 180 degree rotatable spindle head
Performance Parameter
Working area (x*y*z) |
1300*2500*400mm ±90 degree |
Machine table |
Vacuum absorption table and T-slot Combined |
Machine Structure |
Welded structure |
X,Y,Z Drive system |
X,Y Rack and Pinion, Z Ballscrew |
Max Rapid |
30000mm/min |
Max working speed |
20000mm/min |
Spindle power |
4.5kw (water cooling) |
Spindle speed |
0- 24000rpm |
Driving system |
Japan Yaskawa Servo Motors |
Working voltage |
AC380V, 50/60HZ,3PH |
Command code |
G code (*.nc,*.mmg, 8.u00, etc.),*.eng |
Control system |
Syntec Control |
Compatible Software |
UG, Visual Mill, Power Mill, Master Cam, ArtCAM |
Gross weight |
2000kg |
Feature:
1. The European CE standard production
2. Taiwan Syntec control system
3. 4.5 kw water cooling spindle 0-24000rpm
4.The spindle can rotate ±90 degree, for side milling, drilling, cutting, lock slot, very suitable for processing on different surface carving.
5.Vacuum and T-slot Combined table
6. Tool cooling system with water sink to keep tool cooling when process stone and metal..
7.Taiwan Hiwin 30MM square rails
8. X,Y Rack and Pinion, Z German Ballscrew
9. Japan Yaskawa Servo Motor and Driver.
10. Inverter: Taiwan Delta
11. Auto Lubrication-free lifelong to protect the machine
12.Cable: drag chain specific Cable, anti-jamming, anti-static; with high flexibility, long-term use will not break
13. Limit switch: Japan OMRON
14. Beam: steel beam stiffeners
Application:
1. Woodworking industry: doors, cabinets, office furniture, loudspeaker box, musical instruments, etc.
2. Decoration industry: Acrylic, PVC, MDF, plastic, stone, cooper, aluminum and other soft metal engraving and cutting

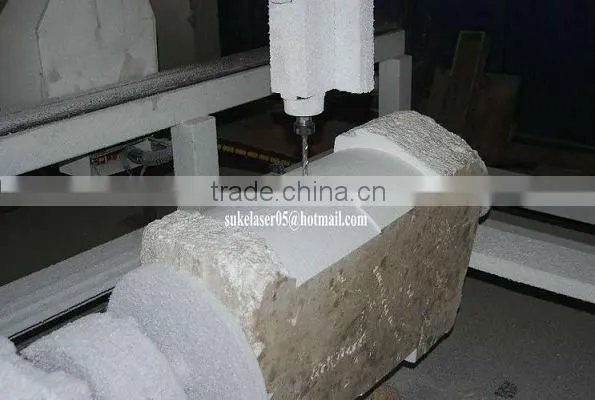

Sample Display:
