Specifications
Italy HSD spindle ATC wood cnc router1.7.5kw Italy air cooling spindle
2.Inverter Taiwan DELTA
3. Japan Panasonic Servo

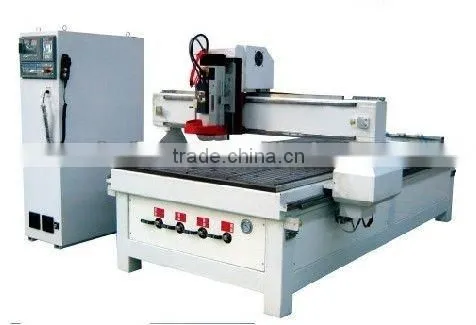

Italy HSD spindle ATC wood cnc router
Detail information:
1. SK1325C is an economical processing center with row type knife library. The main accessories
of our machine are exported from world top brand.
2 It adopts Italian air-cooled spindle, drive system adopts imported servo motor.
3 Vacuum adsorption table, high adsorption power can adsorb different sizes material.
4 Intelligent protection table: to prevent mis-operation or damage to the table caused by software errors.
5. Intelligent processing cross-border protection is to prevent the mechanical impact phenomenon caused by the excessive design layout then processing format.
6 The new generation control systems can do multi-level 3D processing automatically. It can do three-
dimensional processing fast, smoothly, engraving or cutting. And can be realized off-line operation.
7 Besides, 1345C, 1530C, 2030C, 2040C and other variety of models is available to choose.
Specification
NO. |
Performance |
|
Parameter |
1 |
Stroke |
X |
1300mm |
Y |
2500mm |
||
Z |
200mm |
||
2 |
Table size |
1520*2915mm |
|
3 |
Precision |
Process precision |
+/- 0.05mm |
Reposition precision |
+/- 0.05mm |
||
4 |
Structure |
Table structure |
Vacuum suction |
X,Y,Z structure |
X,Y rack , Z ball screw |
||
5 |
Speed |
Max idle speed |
35000mm/min |
Max work speed |
20000mm/min |
||
6 |
Spindle |
Spindle rate |
7.5KW |
Spindle speed |
0-24000r/min |
||
7 |
Run mode |
Servo system |
|
8 |
Work voltage |
AC380V/50Hz |
|
9 |
Run command |
G Code |
|
10 |
Operation system |
Taiwan SYNTEC system |
|
11 |
Net weight |
2800Kg |
|
12 |
Gross weight |
3000Kg |

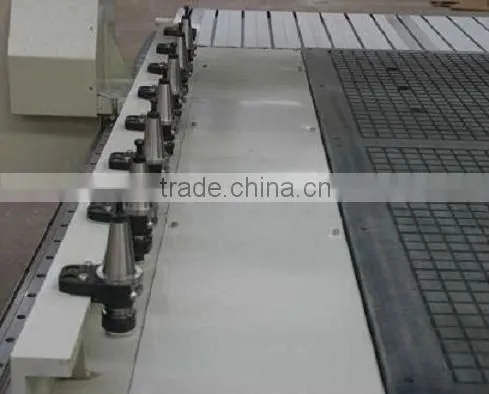

Detail photo:
Sample display
