HDPE Water Tank Blow Molding Machine(5000Liter-2layers)

HDPE Water Tank Blow Molding Machine(5000Liter-2layers) thumbnail-1
HDPE Water Tank Blow Molding Machine(5000Liter-2layers) thumbnail-2
HDPE Water Tank Blow Molding Machine(5000Liter-2layers) thumbnail-3
HDPE Water Tank Blow Molding Machine(5000Liter-2layers) thumbnail-4
HDPE Water Tank Blow Molding Machine(5000Liter-2layers) thumbnail-5
HDPE Water Tank Blow Molding Machine(5000Liter-2layers) thumbnail-6
HDPE Water Tank Blow Molding Machine(5000Liter-2layers) photo-1
HDPE Water Tank Blow Molding Machine(5000Liter-2layers) photo-2
HDPE Water Tank Blow Molding Machine(5000Liter-2layers) photo-3
HDPE Water Tank Blow Molding Machine(5000Liter-2layers) photo-4
HDPE Water Tank Blow Molding Machine(5000Liter-2layers) photo-5
HDPE Water Tank Blow Molding Machine(5000Liter-2layers) photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, water tank,road barrier,IBC tank
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Qingdao Yankang Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, water tank,road barrier,IBC tank
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Shandong, China
Brand Name YANKANG
Model Number YK5000L-2
Certification ISO 9001
Warranty one year
Product Description

A.Production Range

Our blow molding machine is mainly used for making water tank capacity from 200L-10000L ( 2 Layers, 3 Layers, 4 Layers, 5 Layers)

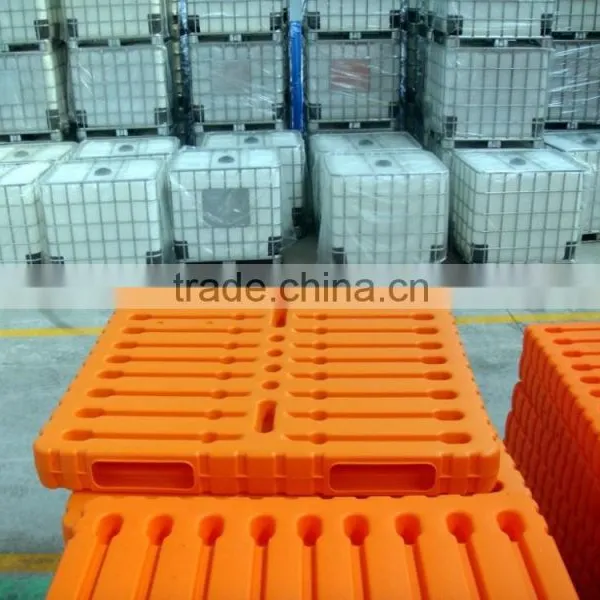

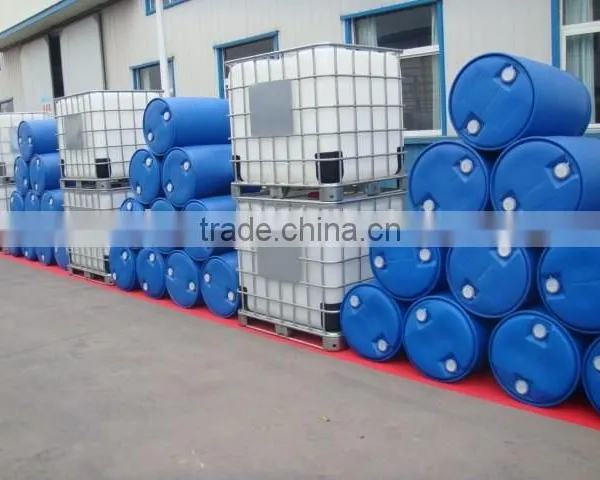

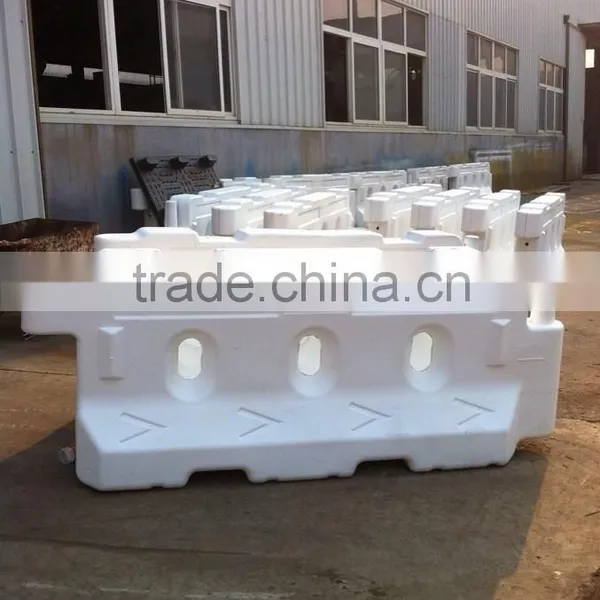

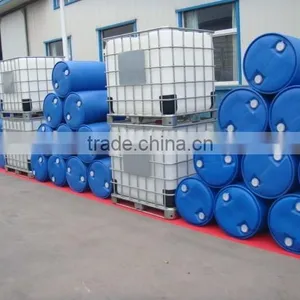

Production range also includes Road barrier, Pallet, IBC tank, Double Ring tank.

HDPE water tank blow molding machine(5000Liter-2layers)

Layers show

HDPE water tank blow molding machine(5000Liter-2layers)



Specification

No



Specifications

5000 Liter





Model No.

2 layers





Processing material

HDPE/HMHDPE

1

Extruders

Screw Diameter (Internal)

120mmgrooved barrel

Screw Diameter (Middle Layer1)



Screw Diameter (Middle Layer2)



Screw Diameter (Outer Layer)

120mmgrooved barrel

Plasticizing Capacity

700kg/h

L/D

L/D32:1

Gear Box Type

Hard surface

Extruder Drive Motor (Inner)

132KW

Extruder Drive Motor (Middle)



Extruder Drive Motor (Middle)



Extruder Drive Motor (Outer )

132KW

Heating Load

145KW

Max Screw Speed

50RPM

2

Accumulator Die Head

Accumulator capacity

180L

Pusher Cylinder

650x6000mm

Heating Load

100kw

Parison Control Cylinder

650X40mm

Die-Core size [ Min / Max]

800MM

Inverter

Siemens

Max. parison weight

150KG

3

Moulding Clamping Unit

Max opening between Clamping Plate

3000mm

Min opening  between Clamping plate

1200mm

CLAMPING PLATEN  Size

2500X2700mm

MAX MOLD SIZE

2350X 2800mm

Mould Clamping Force

3500KN

Mould Thickness

1500-2000

Clamping Pull Bar

180mm

4

Stretching and Blowing Unit

Spreading stroke

400-1200mm

Vertical stroke max.

300mm

5

Electrical Control Panel

Thickness controller

100 points Moog

Main Operation Panel

Siemens

Die Head Control Temperature Control

Siemens

6

Hydraulic System

Hydraulic Drive motor (Main)

55KW

Hydraulic Drive Motor (Parison Control)

11kw

Oil Tank Capacity

1500L*2

7

Gripper

 Gripped stroke

550mm

Discharge Stroke

2400mm

8

Hopper Loader

Loader

800kg /h4pcs

Hopper

50kg 2pcs

9

Production rate

Productivity

5pcs/h

of 1000 ltr.

Product Weight

85-95KG

10

Delivery period



5months

11

Weight of Machine



92Ton



Size of Machine

[L x W x H ]  (M)

15mx13mx8.5m

12

Total power



580KW

13

Average power Consumption



320KW



Configuration

PARISION CONTROL THINCKNESS CONTROL

MOOG

JAPAN

PLC

SEIMENS

GERMANY

TEMPERATURE CONTROL MODULE

SEIMENS

GERMANY

SERVO VALVE & SERVO TRANSDUCER

MIRAN

ITALY

INVERTER

SEIMENS

GERMANY

HYDRAULIC OIL SEAL

DZ

TAIWAN

INTERMEDIATE RELAY

OMRON

JAPAN

PNEUMATIC VALVE

AIRTECH

TAIWAN

HYDRAULIC PUMP & VALVE

YUKEN

JAPAN

PNEUMATIC SWITCH & CONTACTOR

SEIMENS

GERMANY

HYDRAULIC MOTOR & SCREW MOTOR

SEIMENS

GERMANY

REDUCER

GUOMAO

CHINA



Company Information

D.Factory Shows

Yankang have been this line 7 years experience, have their own Die head, hydraulic, oil tank factory to make sure machine in high quality.Yankang insisit puting quality and best service in priority.

HDPE water tank blow molding machine(5000Liter-2layers)HDPE water tank blow molding machine(5000Liter-2layers)
