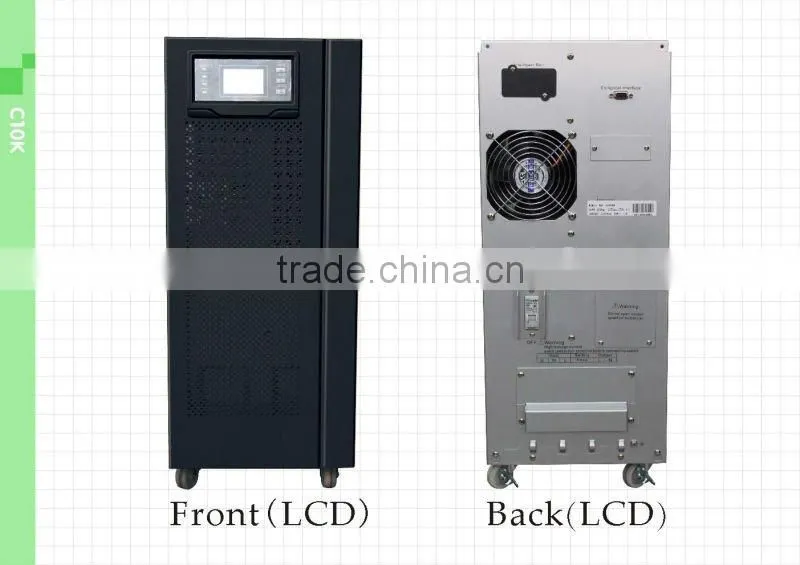

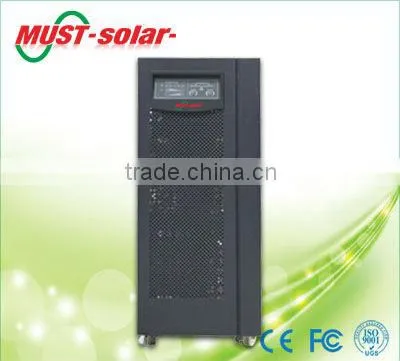

Single Phase Sine Wave Online UPS 10kva Ups Online
US$ 360 - 370
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Must solar
Model Number:
C6KS/4800W
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Frequency Online Ups Rack Mount 3kva Ups Rack MountUS$ 130 - 639.5MOQ: 10 Sets -
<Must Solar> Interactice Ups (EW2150 Ups Series 500va-5000va) LCD Display With CE CertificateUS$ 39.8 - 303MOQ: 1 Piece
-
3 Phase in Single Phase Out Ups 30kvaUS$ 1,979 - 3,675MOQ: 1 Piece
-
3 Phase in 3 Phase Out Ups 60kvaUS$ 1,979 - 3,675MOQ: 1 Piece
-
Three Phase 80KVA Ups Ac 415v Online UpsUS$ 1,979 - 3,675MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Must solar
Model Number
C6KS/4800W
Phase
Single Phase
Protection
Overvoltage
Weight
21kg
Output Voltage
208VAC/220VAC/230VAC/240VAC
Type
On-line
Application
Telecommunications
Specifications
10kva online ups1.LED displayer,0s transfer
2.120-275VAC input
3.192VDC,without battery
4.N+X parallel redundancy
6KVA/4800W pure sine wave online UPS
Features
1.True on-line double conversion technology with advanced microprocessor control
2.Wide input voltage range with high frequency technology
3.Zero transfer time
4.Protection against all type of power problems
5.Self test while start of the UPS,site wiring fault warning
6.On-battery power-on function
7.Smart RS232 communication interface
8.Intelligent slot available
9.Sealed acid battery,free-maintenance battery
10.N+X parallel redundancy
Applications:Servers, Data centers, Critical network devices, Sensitive electronic equipment, Telecom.
Technical specifications:
| Model | C6KVA/C6KS | C10KVA/C10KS | |
| Rated Power | VA/W | 6kVA/4.8kW | 10kVA/8kW |
| Input | Nominal Voltage | 220VAC | |
| Voltage Range | 156 ~ 286VAC | ||
| Frequency Range | 46 ~ 54Hz | ||
| Power Factor | 0.98 | ||
| Connection | Hardwired | ||
| Output | Voltage | 220VAC ±1% | |
| Frequency | 50Hz ±0.1% ( Battery mode) | ||
| Waveform | Sine Wave | ||
| Power factor | 0.8 | ||
| Voltage Distortion | 2% under linear load | ||
| Overload Capability | 105% ~ 130% for 10 min., ³130% for 1 min. | ||
| Current Crest Ratio | 3:1 max. | ||
| Connection | Hardwired | ||
| Battery | Type | Sealed, Maintenance free, Lead-Acid | |
| Quantity | 16 pieces | ||
| Back-up time (full load) | 7 min | 5 min | |
| Recharge time | 8 hrs to 90% of capacity after full load discharge | ||
| Transfer time | 0 ms | ||
| Maintenance Bypass Switch | Yes | ||

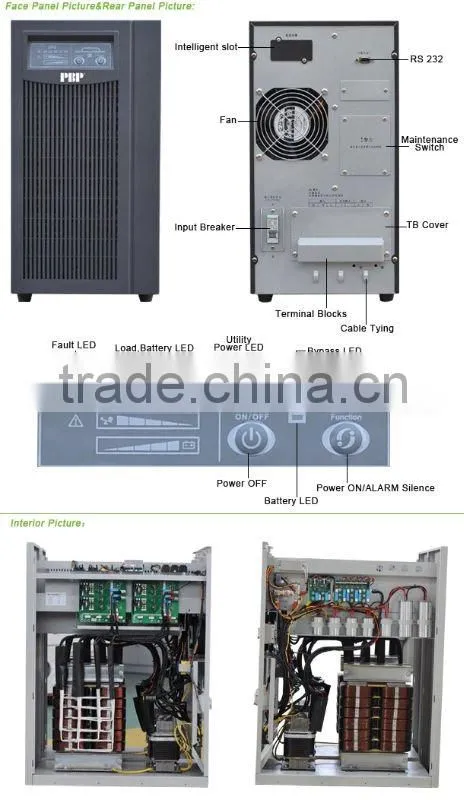

| LED indicators | Status | Load level/Battery level, Battery , Utility power, Inverter, Bypass, Overload, Fault | |
| Audible alarm | Bypass | Alarm beeps every two minutes | |
| Battery discharge | Alarm beeps every four seconds, every second if battery low | ||
| Overload | Alarm beeps two for every second | ||
| Fault | Alarm beeps continuously | ||
| Acoustic noise | At 1 meter distance | £ 55 dBA | |
| Communications | DB-9 Port | RS232 serial interface | |
| Intelligent Slot | Options: WebPower, AS400 or WinPower CMC | ||
| Parallel Port | up to three units in parallel for power redundancy and load sharing | ||
| Environmental | Operating temperature | 0 ~ 40°C | |
| Operating humidity | 20% ~ 90% non-condensing | ||
| Weight | Net (kg) | 57/18 | 67.5/21.5 |
| Dimensions | W x D x H (mm) | 260×570×717mm | |
