<Must Solar> Interactice Ups (EW2150 Ups Series 500va-5000va) LCD Display With CE Certificate

US$ 39.8 - 303 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

PBP

Model Number:

TX-T line interactive ups

Shenzhen Must Solar Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen /Honglong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name PBP

Model Number TX-T line interactive ups

Phase Single Phase

Protection Overvoltage

Weight 7.4KG

Output Voltage 110V/220V/230V/240V

Type Line Interactive

Application Computer

Specifications

1. pure sine wave line interactive ups
2. LCD/LED display
3.warranty 12 month
4. manufacturer
5.CE ISO FCC

Line interactive ups 500va-5000va

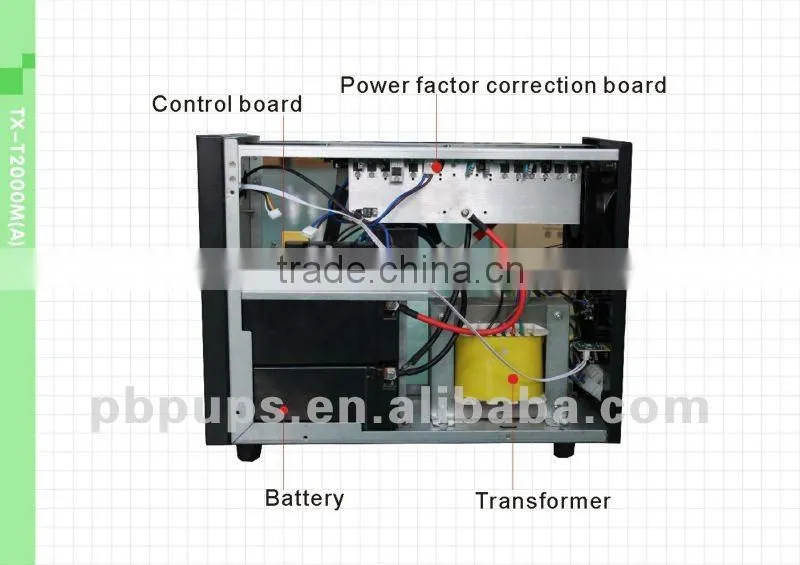

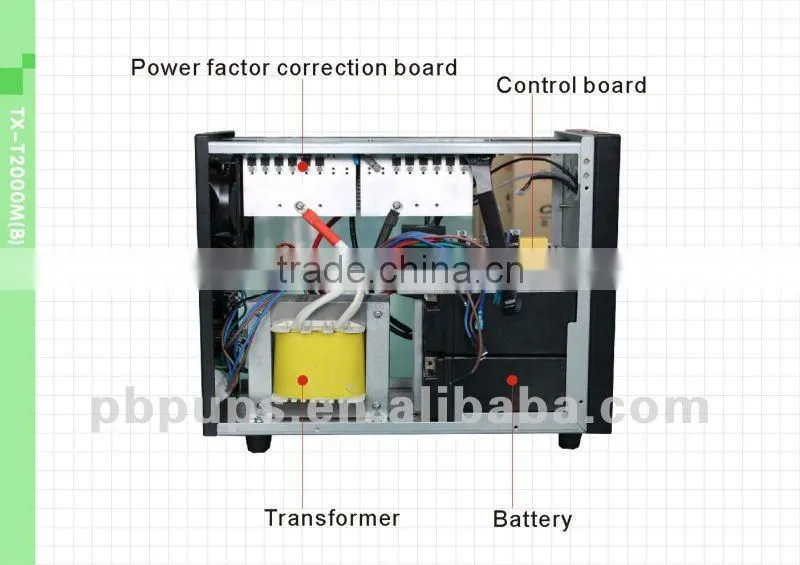

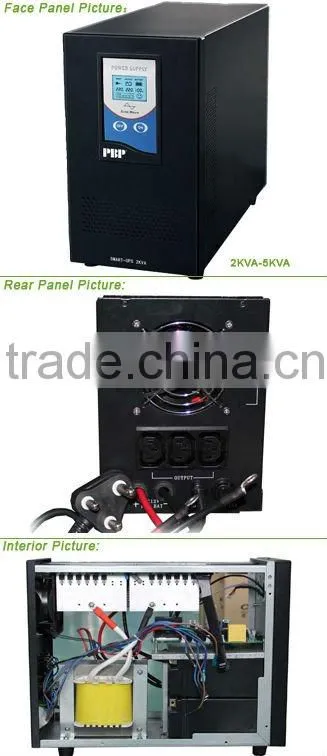

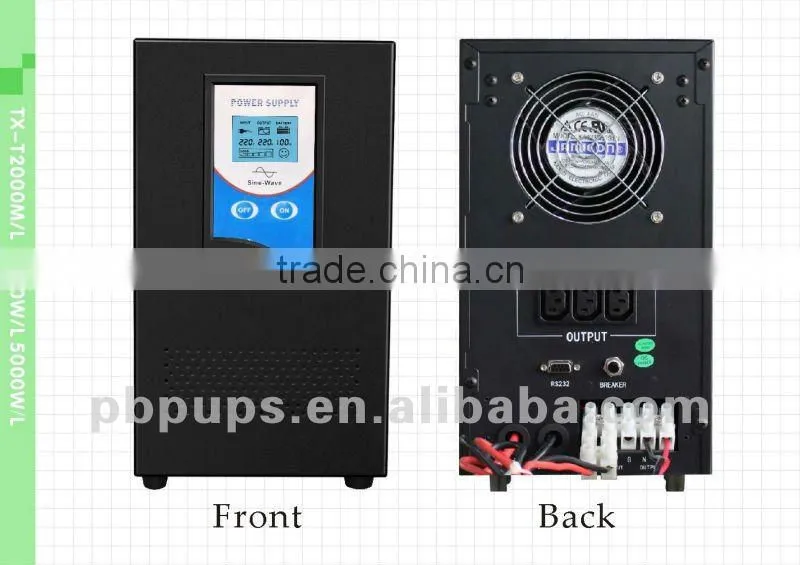

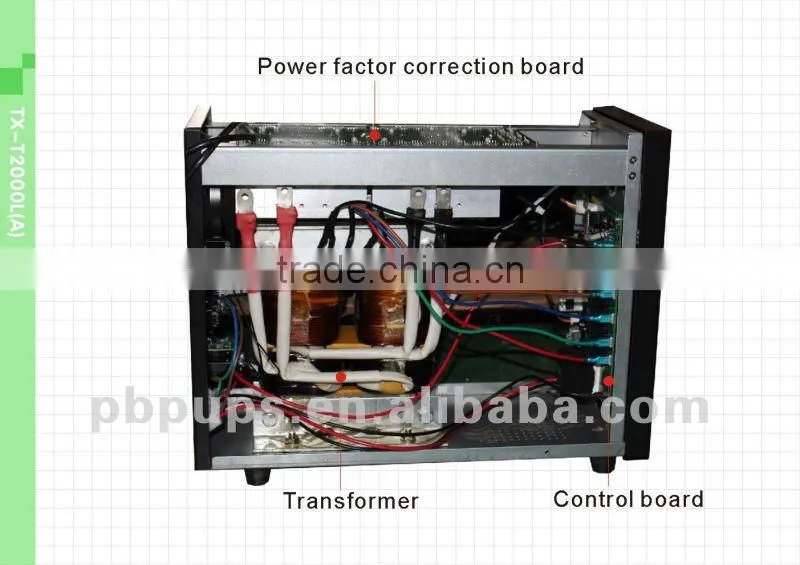

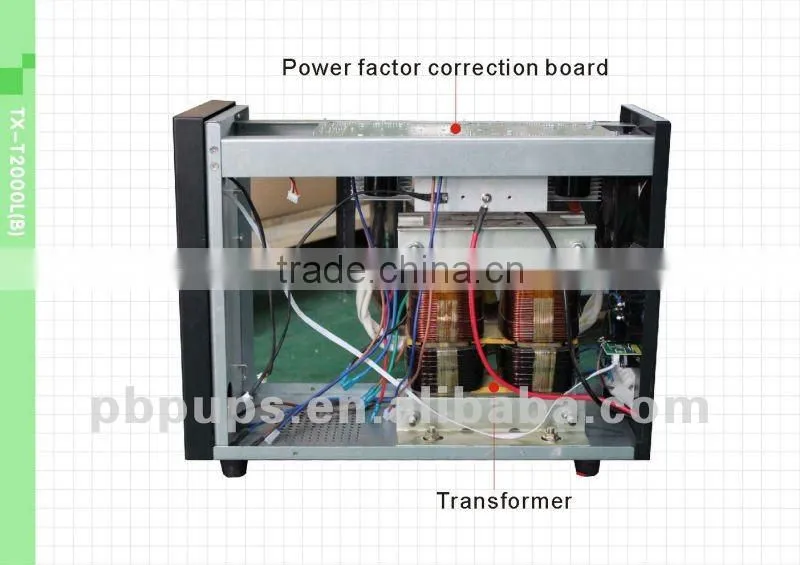

1000va-1500va the outlook is just like the picture shows the front panel is plastic , 2000va -5000va is all metal body .

ups power system 500va -5000va Line Interactive UPS

1. Features:

Accurate pure sine wave output; strong capacity of different load

Smart RS232 communication port (only for model B)

Advanced performance due to the CPU control

Wide range with power input and accurate output AVR

Perfect protection for overload, short circuit, over-voltage, low-voltage and over-heating etc.

LED/LCD display (optional)

Adapt to various of power net well, compatible with generator

UPS start automatically when the main power recover (optional)

Intelligent battery management Optional

2.Specification

MODEL		TX-T500M/L	TX-T1000M/L	TX-T2000M/L	TX-T3000M/L		TX-T5000M/L
CAPACITY	W	500VA(350W)	1KVA(700W)	2KVA(1400W)	3KVA(2100W)		5KVA/3500W
INPUT	Phase	Single
	Voltage	100/110/127/220/230(+25%,-25%)
	Frequency	60/50+/-10%
OUTPUT	Phase	Single
	Voltage range(VAC)	100/110/127/220/230+/-5%
	Frequency	Commercial power supply shared frequency with the commercial inversion state:60/50+/-0.5
	Waveform	Sine wave
Power Factor	P.F.	0.7		0.7			0.7
BATTERY	Battery Type & Number	12V/7AH x 1pcs	12V/7AHX2PCS	12V/17AH x 2pcs		12v/17AHx2pcs	12v/17AHx4pcs
	DC Voltage	12VDC/24VDC		24VDC			48VDC
	Back up Time	Standard model: (halfload)>/=8min
	Recharge current	Long back up model: 15A max, standard model: 3A max
TRANSFER TIME	Typical	Typical: 5ms (Including detection time)
Display	LCD/LED	Optional
PROTECTION	Full Protection	Discharge, overcharge, and overload protection
PHYSICAL	Dimension, DXWXH (mm)	375130190		452192338			452192338
	Out packing Size, DXWXH (mm)	495490320(2pcs/ctn)		584335495(1pcs/ctn)			584335495(1pcs/ctn)
	Net Weight (kgs)	12/7(L)		23/15.6(L)	27/23.7(L)		33.7
ENVIRONMENT	Operating Environment	0~40 Degrees Centigrade, 0~90% relative humidity (non-condensing)
	Noise Level	Less than 40dB
INTERFACE	Smart RS-232	Support Windows family, Linux, Compaq True64,
	USB Option	N / A
