Specifications
1.Wide input voltage range2.Zero transfer time ups
3.Self test
4.uninterruptible power supply
5.CE FCC ISO9001
LCD Display Rack Mount Online UPS 1kva, 2kva, 3kva, 6kva 220V / 230V / 240V

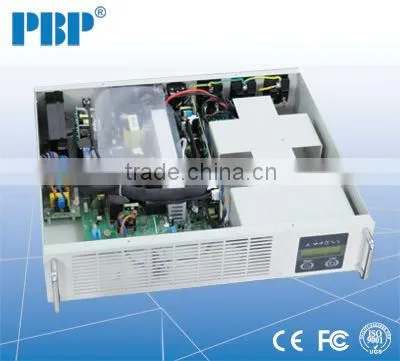

Castle RT features the option of 19 inch rack mounting or tower applications. These compact units are available in 1000 VA to 6000 VA in 2 U''s. The incorporated double conversion with true Isolation technology offers the most complete power protection and highest quality power for all IT applications. The double conversion of the ISO series completely isolates incoming AC power problems converting the power to DC voltage that charges the batteries and provides power to the main transformer. The main transformer delivers constant pure sine wave output AC for all of your most critical applications. The Castle RT series provides many appealing and powerful features including true RS 232 management software, SNMP Slots for remote monitoring and control, extended backup time capacity, load sensing, overload protection, dynamic by-pass, temperature monitoring software for preventative diagnostics.
Main Features :
1. True on-line double conversion technology with advanced microprocessor control
2. Wide input voltage range
3. Zero transfer time
4. Protection against all type of power problems
5. Self test while start of the UPS
6. Site wiring fault warning
7. On-battery power-on function
8. Smart RS232 communication interface
9. Intelligent slot available
10.Sealed lead-acid maintenance free battery.
Applications:
The Rack mount online ups are used for Servers, Data centers, Critical network devices, Sensitive electronic equipment, Telecom etc .
| Product Series | Rack Mount 1KV~6kVA | ||||||
| Model | RT1KR | RT2KR | RT3KR | RT6KR | |||
| RatedPower | VA/W | 1KVA /400W |
2kVA /1400W |
3kVA /2100W |
6kVA /4200W |
||
| Nominal Voltage | 220V / 230V / 240V/AC | ||||||
| Voltage Range | 115 ~ 300VAC | 176 ~ 276VAC | |||||
| Frequency Range | 46 ~ 54Hz(default),user adjustable within 40~60Hz | 46 ~ 54Hz | |||||
| Power Factor | 0.97 | 0.98 | |||||
| Connection | IEC 320-10A inlet | IEC 320-16A inlet | Terminal Block | ||||
| Voltage | 220VAC ± 2% | 220VAC ± 1% | |||||
| Frequency | 46~54Hz or 50Hz ± 0.2Hz(Line mode) 50Hz ± 0.2Hz( Battery mode) |
46~54H(Line mode) 50Hz ± 0.05Hz(Battery mode) |
|||||
| Waveform | Pure Sine Wave | ||||||
| Overload Capability | 108%~150% for 30 sec., ³150% for 300 ms |
105~130% for 10 min., ³130% for 1 min. |
|||||
| Current Crest Ratio | 3:1 | ||||||
| Output | |||||||
| Bypass | Automatic Transfer | on overload and UPS failure | |||||
| Before UPS Power-on |
Default "NO", user adjustable to "YES" |
Yes | |||||
| Voltage Range |
80~264VAC (Default), user adjustable within 80~286VAC |
176 ~ 261VAC | |||||

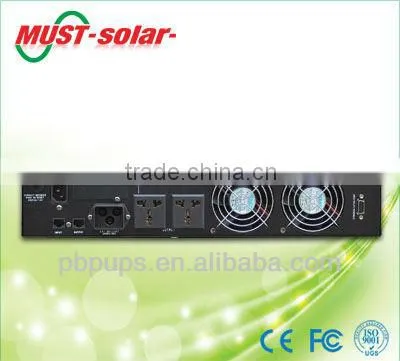

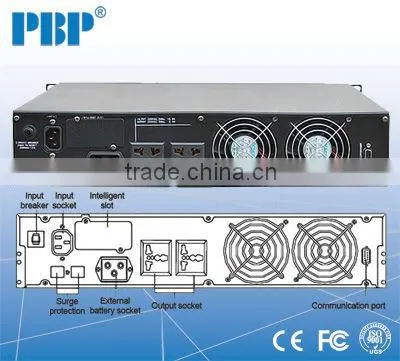

| Output Connections |
IEC 320 -10A * 4 |
IEC 320-10A * 4 | IEC 320-10A and Terminal Block |
IEC 320-10A * 4 and Terminal Block |
|||
| Transfer Time | 0 ms; less than 4 ms from inverter to bypass and vice versa |
Zero | |||||

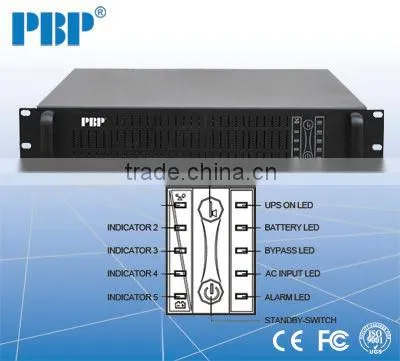

| LED/LCD Indicators |
Load level / Battery level, Battery , Utility Power, Inverter, Bypass,Overload, Fault |
||||||
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault |
||||||
| Communications | RS-232 Serial Interface | ||||||
Intelligent Slot;OPTIONS: | |||||||
Network Surge Protection |
RJ45 I/O port available for;network or Fax/Modem | ||||||
| Operating Temperature | 0 ~ 40°C | ||||||
| Operating Humidity | 20 ~ 90% non-condensing | ||||||
| Main Unit |
N.G(Kg) | 11.5 | 14.5 | 15.3 | 24.5 | ||
| Dimensions (W x D x H)mm |
482.6 x 450 x 88(2U) | 482.6 x 600 x 130 (3U) |
|||||
| Type | Internal Batteries | External Battery Pack | |||||
| Nominal DC Voltage | 36VDC | 96VDC | 192VDC | ||||
| Backup Time(Full load) | 5 min | 9 min (with 1BP) |
5 min (with 1BP) |
7 min (with 1BP) |
|||
| Net Weight (Kg) | -- | 30.8 | 69.2 | ||||
| Dimensions(W x D x H) mm |
-- | 482.6 x 450 x 88 (2U) |
482.6 x 600 x 130 (3U) |
||||
LCD Display Rack Mount Online UPS 1kva, 2kva, 3kva, 6kva 220V / 230V / 240V
