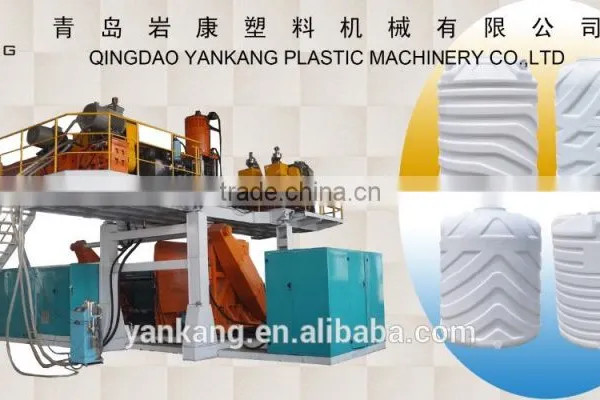

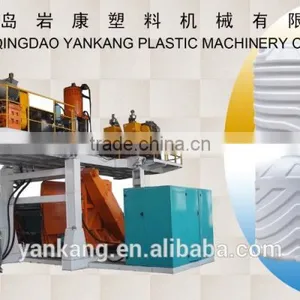

Help Center1000L 4layers Blow Molding Machine
Related Products
-
Fully Automatic Stretch Blow Molding Machine //Water Tank Making MachineryNegotiableMOQ: 1 Set -
Multi Layer Large 1000L Extrusion Blow Molding Machine With New TechnologyNegotiableMOQ: 1 Set
-
YANKANG1000L Water Tank Blow Molding MachineNegotiableMOQ: 1 Set
-
1000L Blow Molding Machine For Water Storage Tank ProductsNegotiableMOQ: 1 Set
-
Blow Moulding Machine for 200L~1000L Water Tanks//2015 Hot SaleNegotiableMOQ: 1 Set
1.Machine Series
Style Number |
1000L Four Layers Blow Molding Machine(YK1000L-4) |
Type |
4 Layers (Four layers, four extruders) |
|
Product range
|
200 L—1000 L water tank |
|
Material process
|
HDPE/ HMWHDPE |
|
Output
|
12PC/H for 1000 L water storage tank
|
3.Payment terms
FOB Qingdao port, China
30% deposit against the contract by T/T should be paid before the order;
70% balance should be paid off by T/T after inspection before delivery;
4. Configuration
Parison Control Thickness Control |
MOOG |
Japan |
PLC |
SEIMENS |
Germany |
Temperature Control Module |
SEIMENS |
Germany |
Servo Valve & Servo Transducer |
MIRAN |
Italy |
Inverter |
SEIMENS |
Germany |
Hydraulic Oil Seal |
DZ |
Taiwan |
Intermediate Relay |
OMRON |
Japan |
Pneumatic Valve |
AIRTECH |
Taiwan |
Hydraulic Pump & Valve |
YUKEN |
Japan |
Pneumatic Switch & Contactor |
SEIMENS |
Germany |
Screw Motor |
SEIMENS |
Germany |
Reducer |
GUOMAO |
China |
5.Parameters
No |
Specifications |
1000 Liter |
|
Model No. |
4 layers |
||
|
Processing material |
HDPE/HMHDPE |
|
1 |
Extruders |
Screw Diameter (Internal) |
80mmgrooved barrel |
Screw Diameter (Middle Layer1) |
80mmgrooved barrel |
||
Screw Diameter (Middle Layer2) |
80mmgrooved barrel |
||
Screw Diameter (Outer Layer) |
80mmgrooved barrel |
||
Plasticizing Capacity |
350kg/h |
||
L/D |
L/D30:1 |
||
Gear Box Type |
Hard surface |
||
Extruder Drive Motor (Inner) |
37KW |
||
Extruder Drive Motor (Middle) |
37KW |
||
Extruder Drive Motor (Middle) |
37KW |
||
Extruder Drive Motor (Outer ) |
37KW |
||
Heating Load |
95KW |
||
Max Screw Speed |
60RPM |
||
2 |
Accumulator Die Head |
Accumulator capacity |
50 L |
Pusher Cylinder |
420x320mm |
||
Heating Load |
40KW |
||
Parison Control Cylinder |
420X50mm |
||
Die-Core size [ Min / Max] |
360mm,450mm |
||
Inverter |
Siemens |
||
Max. parison weight |
36KG |
||
3 |
Moulding Clamping Unit |
Max opening between Clamping Plate |
2550mm |
Min opening between Clamping plate |
950mm |
||
Clamping Size W x H |
1600mmx1500mm |
||
Max Mold SizeW x H |
1400mmX1600mm |
||
Mould Clamping Force |
800KN |
||
Mould Thickness |
950-1200 |
||
Clamping Pull Bar |
110mm |
||
4 |
Stretching and Blowing Unit |
Spreading stroke |
400-800mm |
Vertical stroke max. |
300mm |
||
5 |
Electrical Control Panel |
Thickness controller |
100 points Moog |
Main Operation Panel |
Siemens |
||
Die Head Control Temperature Control |
Siemens |
||
6 |
Hydraulic System |
Hydraulic Drive motor (Main) |
37 kw |
Hydraulic Drive Motor (Parison Control) |
7.5kw |
||
Oil Tank Capacity |
1000L |
||
7 |
Hopper Loader |
Loader |
100kg 4pcs |
Hopper |
800kg 4pcs |
||
8 |
Production rate |
Productivity |
13pcs/h |
of 1000 ltr. |
Product Weight |
18-20kg |
|
9 |
Delivery period |
4months |
|
10 |
Weight of Machine |
36Ton |
|
Size of Machine |
[L x W x H ] (M) |
11mx10mx6m |
|
11 |
Total power |
360KW |
|
12 |
Average power Consumption |
200KW |
6. Auxiliary Machinery ( This is excluded in the machine price).
Sr |
Items |
Capacity |
1 |
Air Tank Receiver |
2 M³ |
2 |
Air Compressor |
18.5 KW |
3 |
Chilller |
30 HP |
4 |
Grinder |
15 KW |
5 |
Mixer |
150 KG |
7. Output:
Commodity |
Output |
Unit |
Weight |
Unit |
200 L Tank |
20 |
PC/H |
3-4 |
KG |
300 L Tank |
18 |
PC/H |
5-6 |
KG |
500 L Tank |
15 |
PC/H |
9 |
KG |
750 L Tank |
14 |
PC/H |
13 |
KG |
1000 L tank |
12 |
PC/H |
18 |
KG |
8.Delivery Time
4 months after the down payment;
9.Training
The Buyer could send their operators to the Seller’s factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller’s technician will train the Buyer’s operators in the Buyer’s factory in the periods of installing & adjusting;
The training is free of charge;
10. Installation & Adjustment
The Seller will send an engineer against the requests of the Buyer to install and adjust the machines for one week in the Buyer’s factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should afford the engineer’s visa application cost, round air tickets, and accommodation.
11.Guarantee
The guarantee time is one year after the machines normally works in the Buyer’s factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won’t be listed in guarantee coverage.
