Professional Bluetooth Mixer Amplifier

Professional Bluetooth Mixer Amplifier photo-1
US$ 138 - 138 MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
ITC
Model Number:
TS-2060W TS-2120W
Type:
Professional Amplifier
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ITC
Model Number TS-2060W TS-2120W
Type Professional Amplifier
Channels 3 (2.1)
Place of Origin Guangdong, China
Product Features
Professional bluetooth Mixer Amplifier

With 2 audio input; support switching;

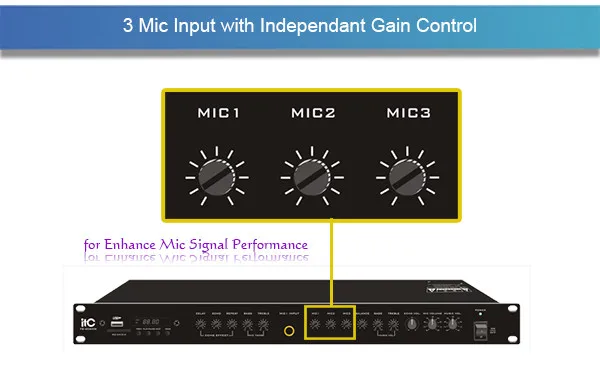

With 3 Mic input; they’re with individual gain control;

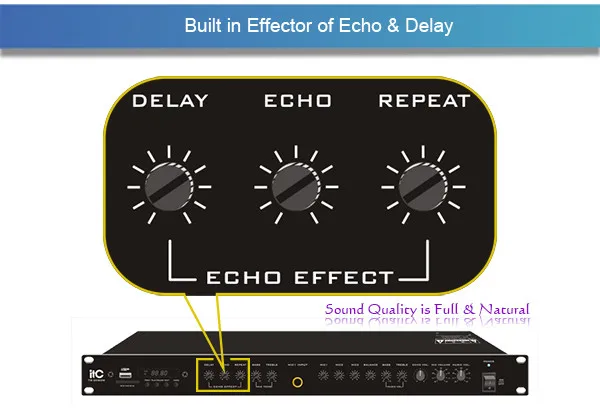

With professional digital circuit for echo and delay to make sound fuller;

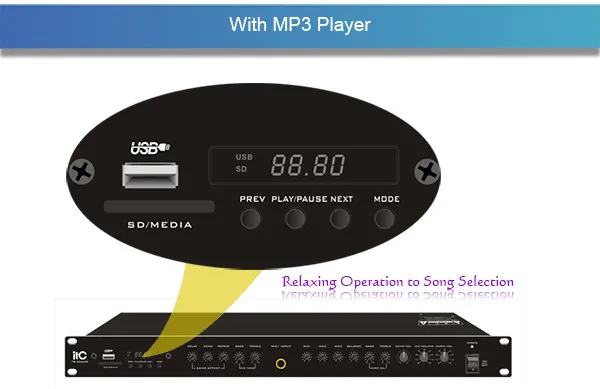

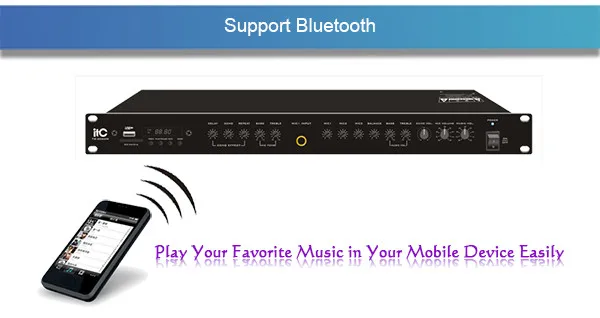

With internal MP3 player; it’s with USB port and SD slot; it support Bluetooth and is with LED to display status
Support recording;
Rated power output is 60W x2 and 120W x2; Could be linked with 2 speakers at 8 ohm;
The volume control and the effect use hidden type adjustment to ensure reliable operation;
Using forced cooling fan to ensure heat dissipation in order to prolong the working life;
The case is in 1U; Using the switching power and the chips combination of class D amplifiers; higher efficiency and lighter.
Technical Parameters
Model
TS-2060W
TS-2120W
Rated Power Output
2 x60W
2 x120W
Impedance of Output
4 to 8 ohm
Sensitivity & Impedance of Input
Mic 1/2/3: ±350mV/600 ohm (unbalanced input)
AUX: 350mV/10 Kohm (unbalanced input)
VCD: 350mV/10 Kohm (unbalanced input)
Effect In: 350mV/10 Kohm (unbalanced input)
Front Output
Effect Out: 350mV/470 ohm
Audio Out: 1V ±50mV/470 ohm
Tone of Mic
Bass: ±10dB at 100Hz
Treble: ±10dB at 100Hz
Tone of Music
Bass: ±10dB at 100Hz
Treble: ±10dB at 100Hz
Effector
Delay: 80ms to 240ms; Echo: 1 to 12
Repeat: 0.1s to 2s
Frequency Response
AUX, VCD: 20Hz (±3dB) to 20KHz (±3dB)
Mic: 50Hz (±3dB) to 16KHz (±3dB)
S/N Ratio
Mic: ≥65dB
Music: ≥70dB
T.H.D.
≤1%
Indicator
To show power status
Cooling Way
Air-cooled
Detailed Images
Packing & Delivery

Full-sealing package of Products:

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted
