New Arrival Professional Full Range Line Array Speaker for Sound System

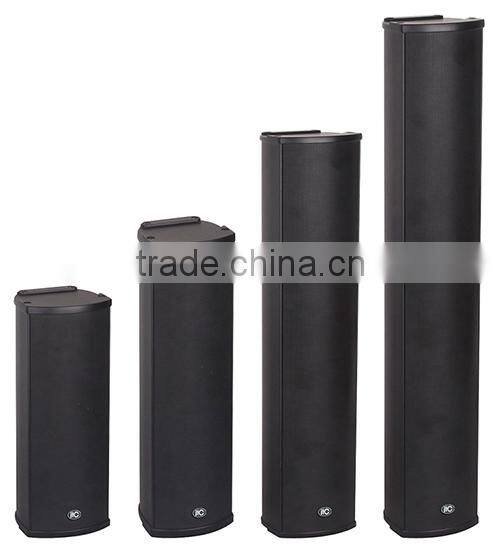

New arrival professional full range line array speaker for sound system
1. Using a lot of 3 inch full-range neodymium unit (TS-2A03, TS-4A03 match 1 inch tweeter);
2. Line array appearance, box made by 3mm aluminum, wear paint treatment;
3. Accurate design of frequency division point optimizes power response, high fidelity reduction vocals.
4. Mosaic arrangement speaker design, with fewer speakers to achieve a wider range of sound field coverage.
Scope of application: apply to large conference room, banquet hall and multifunction room, large auditorium and other main PA using.
Model | TS-2A03 | TS-4A03 | TS-8A03 | TS-12A03 |
Impedance | 8Ω | 8Ω | 8Ω | 8Ω |
Frequency response | 80Hz-20KHz | 80Hz-20KHz | 100Hz-20KHz | 100Hz-20KHz |
Rated power | 100W | 200W | 300W | 400W |
Sensitivity | 94dB/W/M | 95dB/W/M | 96dB/W/M | 97dB/W/M |
Bass | 3" full-range×2/1" High pitch×1 | 3"full-range×4/1" high pitch×1 | 3" full-range×8 | 3" full-range×12 |
Size(H x W x D) | 320×105×98mm | 500×105×98 mm | 750×105×98 mm | 1110×105×98 mm |
Weight | 1.5Kg | 2.7Kg | 4.6Kg | 6.8Kg |
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
ITC Office Building& Factory

Exhibition
Certification
