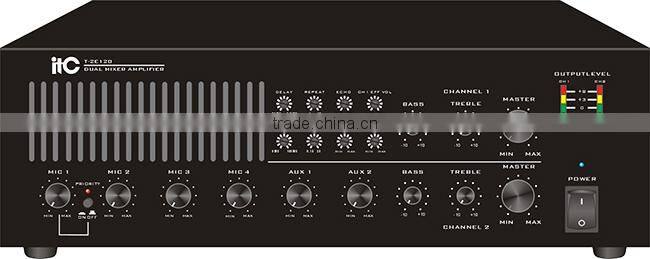

ITC T-2E240
Two Channel Mixer Amplifier with 4 Microphone Inputs by XLR & Phone Jack
* 2 Channel Amplifier 120 & 240 Watts Output
* Built-in 20 bytes DSP
* Built-in delay/ repeat/ Echo & Reverb Features
* 4 Microphone Inputs by XLR & Phone Jack
* 2 Aux inputs

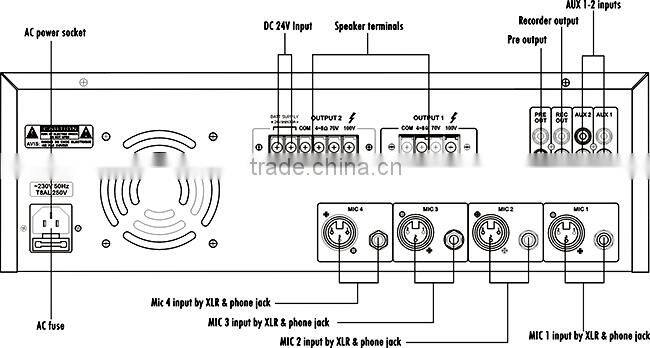

* REC Output, Pre Output and Boost Input
* 70V-100V-8ohms Speaker Terminal by Two Channels
* Mic1 with VOX Priority
* Echo & Reverb with separate volume control
* Output Level Meter for 2 Channels
* Extensive Protection for High Temp, Short-circuit & Overload
Model | T-2E120 | T-2E240 |
Rated Power Output | 2x120W | 2x240W |
Speaker Outputs | 70V, 100V & 4~16Ω | |
Input | MIC1, 2, 3, 4: 5mV/600Ω, Unbalanced MIC1, 2, 3, 4: ±2.5mV/600Ω, Balanced AUX1, 2: 350mV/10KΩ, Unbalanced | |
Output | REC: 200mV/470Ω PRE: 1000mV/470Ω | |
Tone | Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz | |
Effect | ECHO DELAY: 80ms-240ms, ECHO REPEAT: 1-12 REVERB DELAY: 0ms-100ms, REVERB REPEAT: 0.1s-2s | |
Frequency Response | 80Hz~16KHz(+1,-3dB) | |
S/N Ratio | MIC1, 2, 3, 4: 66dB AUX1, 2: 80dB | |
THD | Less than 0.1% at 1KHz, 1/3 rated power | |
Indicators | Power LED, Output level meter | |
Power Supply | ~110V/60Hz or~230V/50Hz & DC 24V | |
Power Consumption | 400W | 700W |
Dimensions | 430x399x132mm | |
Weight | 15.94Kg | 20.4Kg |
Finish | Panel: aluminum plate, black Case: steel plate, black | |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Packaging |
1)Bubble+Carbon+Wooden 2) Your request. (a plastic bag and foam for product protection, then brown master carton outside.)
|
Shipping |
1) Main port: Guangzhou, Shenzhen & HK 2) FOB/ EXW or CIF. Our sales team are capable enough to arrange the shipment if you want. 3) All the cargoes under inspection before shipment. |
