4 Zone Class d Professional Power Amplifier

US$ 47 - 888 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ITC

Model Number:

T-4D240

Contact Supplier Request Quote Chat Now

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen & Honhkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ITC

Model Number T-4D240

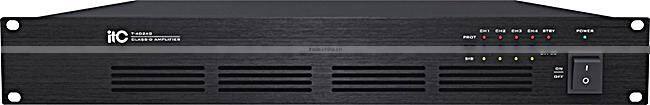

4 zone class d Professional power amplifier

Product Description

4 zone class d Professional power amplifier

This range of 4 channel power amplifiers are class D amplifier of digital signal transmission. With four separate amplifier in a single chassis and rated power ranges from 120W and 240W of rack mount and tabletop types in 2U height.

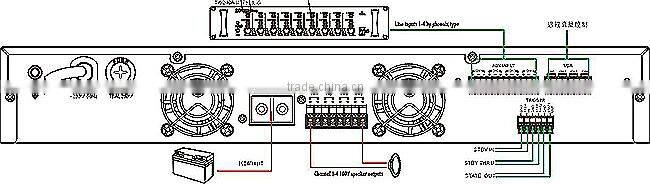

Balanced phoenix type line inputs, channel2 input with channel1 priority input, while channel3 with channel2 priority input and channel4 with channel 3 priority input. The phoenix type 100V, 70V and 4-16ohm speaker outputs for each channel are convenient for installation when selection different speaker matching. Master volume controls for each control are included. Complete protection includes peak, short circuit, high temp and overload. Indications for power, signal, peak and protection.

Features

* 4 separate amplifier into one chassis

* Class D amplifier of rack mounted type in 2U

* Rated power from 120W to 240W per channel

* 100V, 70Vand 4-16ohm speaker outputs for each channel by phoenix types

* Big brother channel input priority

* Isolated transformer for human safety operation

* Balanced phoenix type line input for each channel

* Reliable protection of peak, short circuit, high temp and overload.

* Indications for power, signal, peak, and protection

* Excellent device of radiator cooling fanner that ensures working effectively.

* AC 115V and 230V voltage selector

Optional

* DC 24V input available on less than but not included 240W models

* Panel with/without handhold

* Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier switch (Except for 1000W and 1500W).

Specification

Model	T-4D120	T-4D240
Rated Power Output	4 x 120W	4 x 240W
Speaker Outputs	70V, 100V & 4~16Ω
Input	775mV/0dB
Frequency Response	80Hz~18KHz (±2dB)
S.N. Ratio	Better than 85dB
THD	Less than 0.1% at 1KHz, 1/3 rated power
Controls	Power switch, volume control
Indicators	Power, clip, signal, protect
Protection	AC fuse, short-circuit, clip and high temp
Power Supply	~110V/60Hz or ~230V/50Hz
Weight	10.5Kg	13.5Kg
Dimensions	484x450x88mm

Guarantee & Warranty

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.

Technical Support

Well-trained sales team for sales and basic technical service.
New product promotion and seminar for all employees.
Two English spoken technician provide online after sales service.
Online system software demo and configuration is available.
30 system consultants and 10 designers to make drawing and BOQ for each tender.
Design and BOQ response to customer within 48 hours.
PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
Technical documents could be downloaded from website

Packaging & Shipping

Full-sealing package of Products:

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
