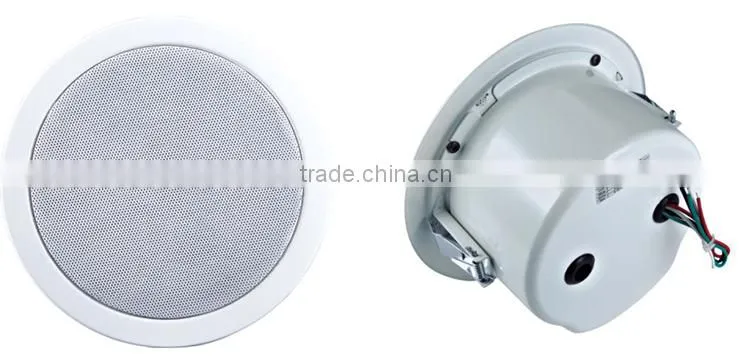

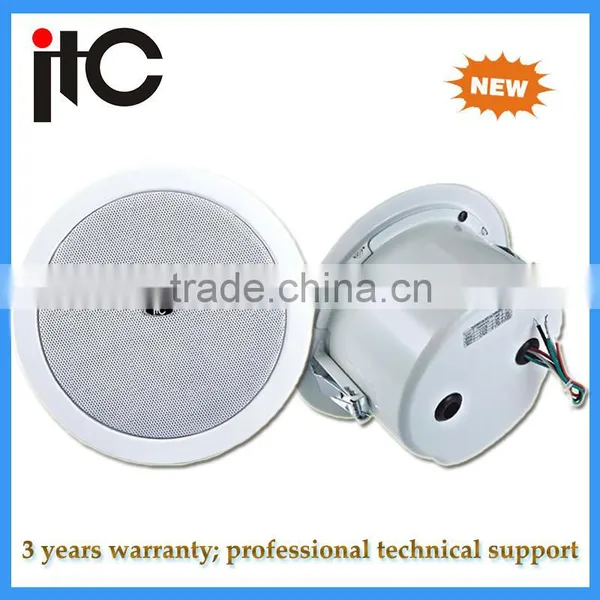

T-108M Fire Retardant lron cover smallpax horn PA ceiling speaker
Features
l Built-in 100v/70v transformer
l In-ceiling type loudspeaker
l 8” speaker unit
l Power taps 1.87W, 3.75W, 7.5W & 15W @100V
l Metal grille, metal baffle and metal back cover
l Paint in white color

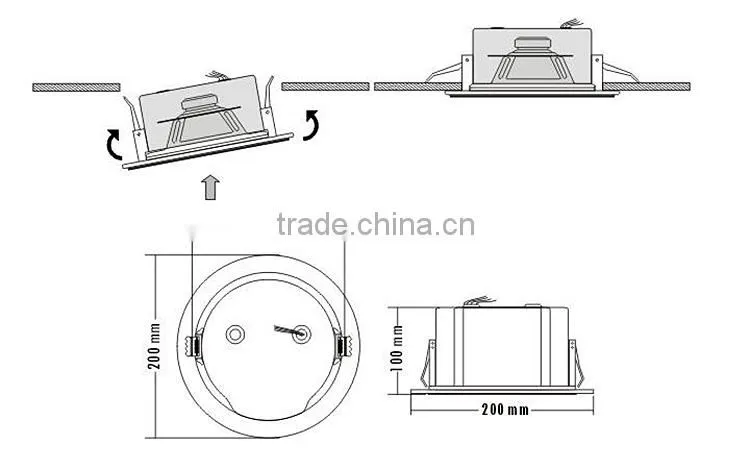

l Spring clip clamp installation type
Description
The T-108M is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 8” speaker driver is designed of wide frequency response 90-20KHz, the multiple power taps 1.87W, 3.75W, 7.5W & 15W are helpful for different applications varies from room size and ambient noise surroundings. The metal grille, metal baffle and metal back cover are painted in attractive white color. Its spring clip clamp makes the easy and secure installation.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Model |
T-108M |
Rated power (100V) |
1.87W, 3.75W, 7.5W, 15W |
Maximum power |
30W |
sensitivity |
90dB |
Impedance |
black-COM blue-5.3KΩ red-2.7KΩ |
Frequency response |
white-1.3KΩ green-0.67KΩ |
speaker unit |
90-20KHz |
Size of mounting hole |
8" x 1 1" x 1 |
Dimensions |
230mm |
weight |
265 x 110mm |
Material |
1.6Kg |

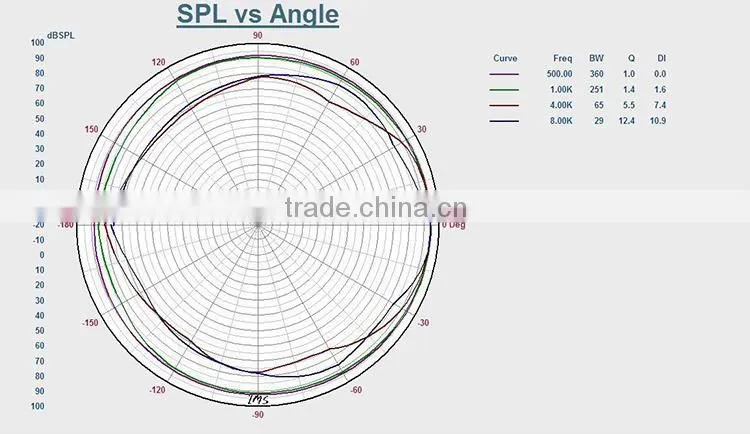

Direction Diagram:

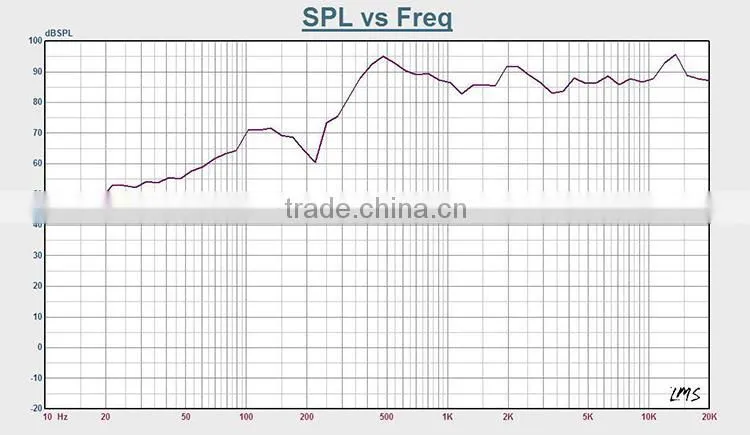

Frequency Response:
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
