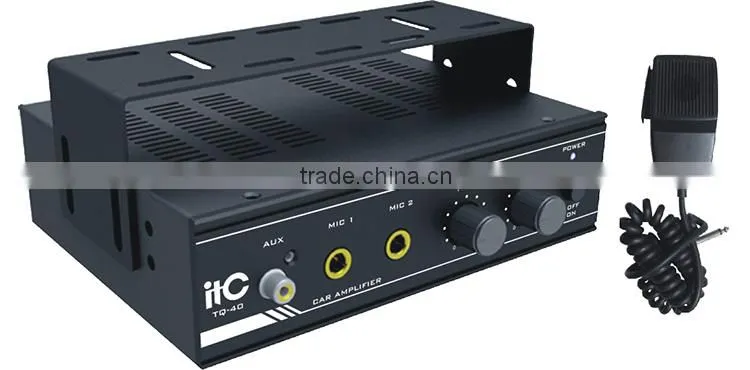

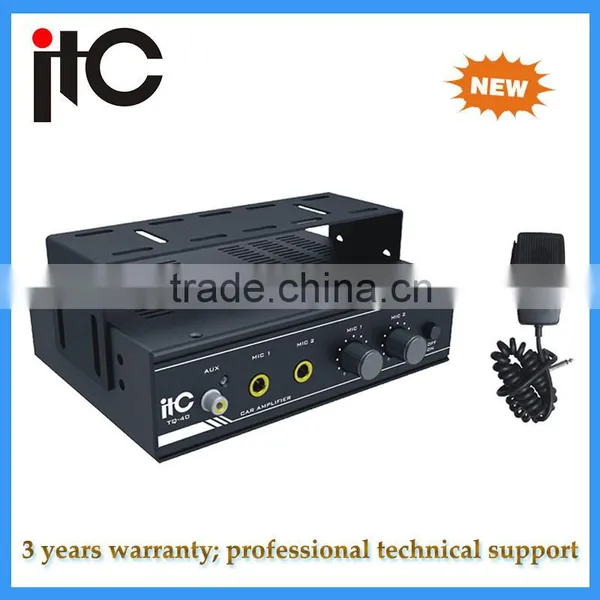

TQ-40 Professional audio Mini Car Amplifier
* Special audio equipment - automobile;
* 40W mini amplifier , economical, simple and stylish appearance .
* A clever small volume of structure design, easy embedded installation;
* With MIC1, MIC2 input and a AUX auxiliary input;
* MIC1, MIC2 input sensitivity of 5MV and can be connected with dynamic microphone;
* AUX input sensitivity of 350MV and can be connected with CD, FM etc. other audio;
* MIC1, MIC2 volume can be adjusted independently;
* Power for 12-16 v DC battery power directly, is equipped with power indicator;
* Internal power output is 4Ω, 2 × 20W;
* Overload, overheating protection function automatically detects ;
Model |
TQ-40 |
Rated output power |
2×20W |
Output Impedance |
4Ω |
Line input sensitivity |
350mV/10KΩ |
Microphone input sensitivity |
5mV/600Ω |
Frequency Response |
80Hz~16KHz(±3dB) |
SNR( noise-signal ratio) |
70dB |
Harmonic Distortion |
≤0.1% at 1KHz,1/3 Rated power |
Efficiency |
85% |
Control |
The power switch and volume control |
Instruction |
The power supply |
Protection |
Overload, overheating |
Power Supply |
~110V/60Hz or ~230V/50Hz |
Specification |
178x144x50mm |
Weight |
1.50Kg |

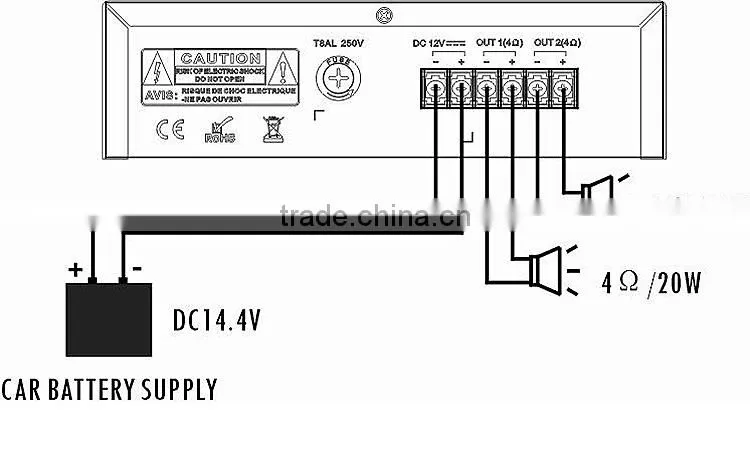

Rear Panel

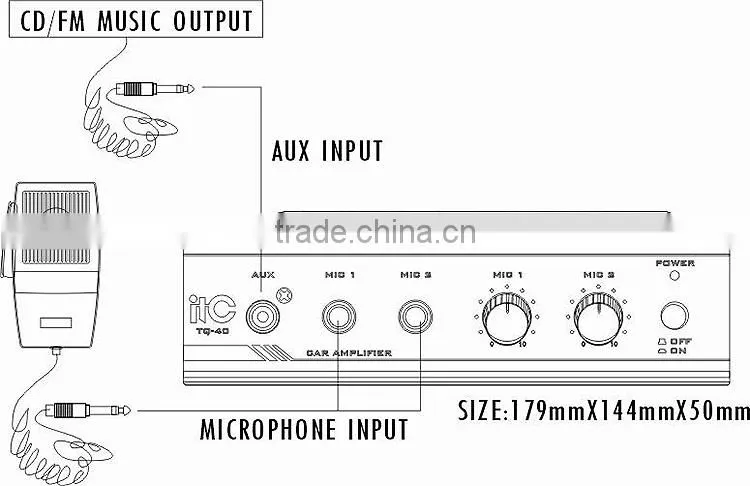

Connections
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
