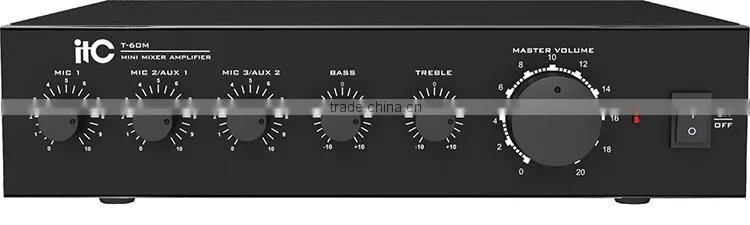

T-35M 35W Phone Jack MIC Inputpa mini power mixer amplifier
* 3 MIC inputs, 2 AUX inputs
* 3 MIC volume control, 2 AUX volume control
* With priority, MIC1 input is prior to other audio input
* There is a separate treble and bass adjustment knob
* One MIC2 / AUX1 selector switch, one MIC3 / AUX2 selector switch
* Two types of power output: 4 ohms constant resistance, 8 ohms output and constant voltage 70V, 100V output
* Single-channel rated power 35W / 60W output
Model |
T-35M |
T-60M |
Rated Power Output |
35W |
60W |
Speaker Outputs |
70V, 100V & 4~8Ω |
|
Input Sensitivity & Impedance |
MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input |
|
|
MIC2: 775mV/10KΩ, Unbalanced phone jack input |
|
|
AUX2: 350mV/10KΩ, Unbalanced RCA input |
|
Output Sensitivity & Impedance |
MIX OUT: 1V/470Ω, Unbalanced RCA output |
|
Tone |
Bass: ±10dB at 100Hz |
|
|
Treble: ±10dB at 10KHz |
|
Frequency Response |
50Hz~16KHz(+1dB, -3dB) |
|
S/N Ratio |
MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB |
|
THD |
Less than 0.5% at 1KHz, 1/3 rated power |
|
Crosstalk |
≤50dB |
|
Cooling |
Fan automatically start up when temp reaches 55℃ |
|
Protection |
High temp, overload & short-circuit |
|
Power Supply |
~110V/60Hz or ~230V/50Hz |
|
Power Consumption |
60W |
100W |
Weight |
3Kg |
3.5Kg |
Dimensions |
484 x 335x88mm |
|
Finish |
Panel: steel plate, black Case: steel plate, black |
|

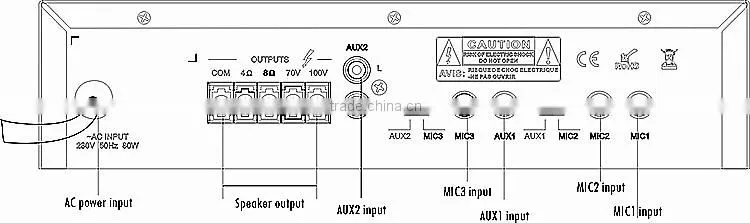

Rear Panel
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
