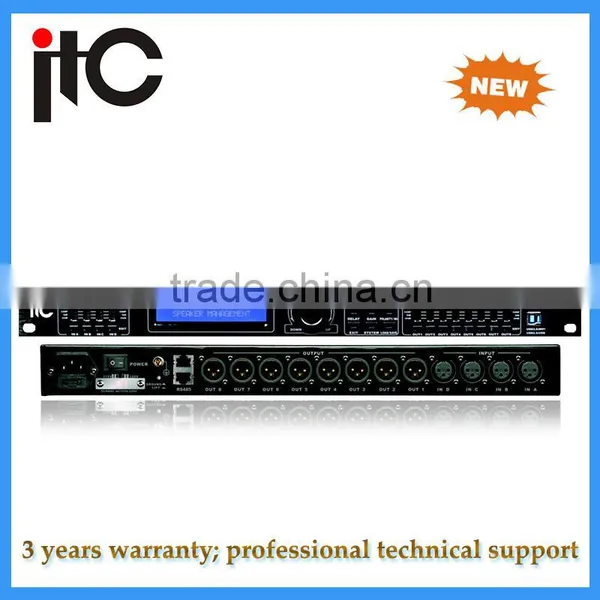

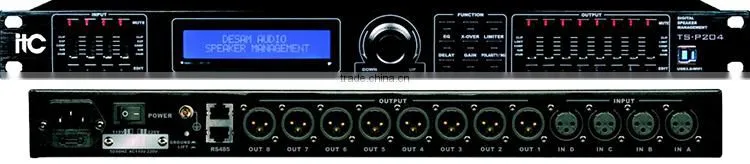

TS-P408 4 channel XLR female Audio Processor

Model

TS-P204

TS-P206

TS-P306

TS-P406

TS-P208

TS-P408

Input Channel & Socket

2 channel XLR female

2 channel XLR female

2 channel XLR female

3 channel XLR female

4 channel XLR female

4 channel XLR female

Output Channel & Socket

4 channel XLR male

6 channel XLR male

8 channel XLR male

6 channel XLR male

6 channel XLR male

8 channel XLR male

Input impedance

20KΩ balanced

Output impedance

100KΩ balanced

PC interface

Front Panel:1 USB,(USB3.0 control interface can be extended to WIFI control interface), Real Panel: 2 Rs485 (RJ-45)

CMRR

>78dB (1KHz)

Input Range

≤+25dBu

Frequency Response

20Hz-20KHz (-0.5dB)

SNR

≥100dB@1KHz0dBu

THD

<0.002% OUTPUT=0dBu/1KHz

Channel separation

>88dB (1KHz)

Input Channel Function

Input Mute

Separate mute control on each channel

Input volume

Adjustment range: -80dB-+12dB, step is 0.2dB

Input delay

Each input channel has a separate delay control, adjustment range is 0-1000ms, less than 10ms, step is 21us; 10ms-20ms, step is 84us; greater than 20ms, step is

0.5ms;

Input phase

inverting (+)/reverse (-)

Input Equalization

Each input channel has six parametric equalizer, adjustment parameters is: center frequency: 20Hz-20KHz, 239 frequency points Bandwidth in total: 0.05oct-3oct, step

to 0.05oct gain: -20dB-+20 dB, step is 0.1dB

Input compression

Threshold: -40dBu ~ + 20dBu, step is 0.5dBu; Compression ratio: 1.0:1~20:1; <2.0:1, step is 0.1; > 2.0: 1, step is 0.5; Response time: 0.3ms ~ 200ms, <1ms, step is

0.1ms; > 1ms, step is 1ms; release time: 50ms ~ 5000ms, steps is 1ms

Input Expansion

Threshold: -40dBu~+20dBu, step is 0.5dBu; Compression ratio: 1:1.0~1:20; <1:2.0, step is 0.1; >1:2.0, step is 0.5; Response time: 50ms~5000ms,

steps is 1ms, Release time:0.3ms~200ms; <1ms, step is 0.1ms; >1ms, step is 1ms

Output Channel Function

Output Mute

Separate mute control on each channel

Output Selection

The output can individually select different input channels

Output Volume

Adjustment range: -80dB-+12dB, step is 0.2dB

Output delay

Each output channel has a separate delay control, adjustment range 0-1000ms, less than 10ms, step is 21us; 10ms-20ms, step is 84us; greater than 20ms, step is 0.5ms

Output phase

Inverting (+)/reverse (-)

Frequency Divider Setting

Each output channel can set low pass filter (LPF) and high-pass filter (HPF) separately; adjustable parameters: Filter Type: Linkwitz-Riley/Bessel / frequency turning

point: 20Hz-20KHz, 239 a frequency attenuation slope: 12dB/oct, 18dB/oct, 24dB/oct, 30 dB / oct, 36 dB / oct, 42 dB / oct, 48dB/oct

Compression Settings

Threshold: -40dBu~+20dBu, step is 0.5dBu; Compression ratio: 1.0:1~20:1; <2.0:1, step is 0.1; >2.0:1,step is 0.5; Response time: 0.3ms~200ms;

<1ms, step is 0.1ms; >1ms, step is 1ms, release time: 50ms~5000ms, step is 1ms.

Limiter Setting

Each output channel can set limiter separately; adjustable parameters: threshold :-40dBu-+20 dBu, step to 0.5dBu start time: 0.3ms-200ms, less than 1ms, step 0.1 ms;

greater than 1ms, in steps of 1ms release time: 50ms-5000ms

Output Equalization

Each output channel has six parametric equalizers; equalization mode has Parameter/Lo-Shelf/Hi-Shelf, Adjustable parameter under Parameter Status: center frequency,

20Hz-20KHz, a total of 239 frequency points Bandwidth: 0.05oct-3oct, step is 0.05oct gain: -20dB-+20 dB, step is 0.1dB, Adjustable parameter under Lo-Shelf and Hi-

Shelf status: center frequency: 20Hz-20KHz, 239 frequency points slope in total: 6dB/12dB, gain: -20dB-+20 dB, steps is 0.1dB

Processor

96KHz sampling frequency, 32-bit DSP processor, 24-bit A / D and D / A conversion

Display

2 x 24 LCD displays setting menu, 6-segment LED display input / output precision digital level meter, mute and editing status

Power consumption

≤25W

Power Supply

AC110V/220V 50/60Hz

Dimension ( W x D x H )

482 x 228 x 44mm

Net Weight

4.1Kg

Transport dimensions ( W x D x H )

555 x 325 x 98mm

Gross Weight

5Kg
