Square Wave Power Inverter 1000va

Square Wave Power Inverter 1000va thumbnail-1
Square Wave Power Inverter 1000va photo-1
US$ 51.5 - 54.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Must Solar
Model Number:
PG1000va
Contact Supplier Request Quote Chat Now
Shenzhen Must Solar Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Must Solar
Model Number PG1000va
Output Power 500 - 1000W
Output Type Single
Size 2.3KG
Weight 355*130*230
Input Voltage 12V/24V
Output Voltage 220v/230v/240v
Type DC/DC Converters
Output Frequency 50/60HZ
Output Current 10amp

Specifications

selectable for accepting wider input voltage.
Full automatic and silent operation.
Rack Tower design.
High Frequency.

 12v 220v digital power inverter 1000va with 10A 20A battery charger adjustable



1.Main Features:



a).Micro Processsor Control

b).User selectable for accepting wider input voltage

c).Full automatic and silient operation
d).Automatic Line-to-Battery Switch over
e).Intelligent Automatic Charging Technology
f).Rack and Tower design
g).Automatic charge while AC recovery(off model charging)
h).High Efficient DC-to-AC conversion.minimizing energy loss
i).Over load,short circuit protection
j).Low battery protection
k).Cool start
l).Isolated output
m).Selectable charge current
n).Compatibility with generators
o).Multi-function  LED&LCD Display Design and buzzer alarms.
p).Application for Fan, light ,TV and office Appliances





2. Description:



PG Series Power Inverter 500va /1000va /2000VA  LCD Display

Rated Capacity

500VA/300W

1000VA/600W

2000VA/1200W

1. Input

Models

120V Models

230V Models

Nominal Voltage

110V/115V/120V Selectable

220V/230V/240V Selectable

Input Frequency

47Hz ~ 65Hz,  50/60Hz Auto-Sensing

Efficiency

95%(Normal Mode)

Over Current Protection

By Re-Settable Over Current Protector

Voltage Range

90 - 145VAC Or 170-280VAC ( Narrow Range ) 50-145VAC / 90 280VAC (Wide Range)

Surge Protection

324 Joules

2. Output

Rated Power

500va/300w

1000VA/600W

2000VA/12000W

Output Voltage

100V/110V/115V/120V Selectable

200V/220V/230V/240v selectable

Voltage Waveform

Modified Sine Wave

Crest Factor

3:1

Output Frequency
(Synchronized To Mains)

Auto Select For 50/60Hz
47Hz ~ 55Hz For 50Hz Nominal
56Hz ~ 65Hz For 60Hz Nominal

Regulation (Battery Mode)

10% -18%

Transfer Time

15ms Typical 50ms Max

Protection

Over Load, Discharge, Overcharged




Battery Type

Lead-Acid 12V 25Ah  ~ 250Ah

Voltage

500VA/1000VA :DC12V ; 2000VA :DC24V

Backup Time

Depend On Battery

Charging Method

3 Steps Super Charge Mode

Charging Current

10A At Normal Line And Normal Temperature

Protection

Over Current Protection Over Charging Voltage Protection  (No More Than 15V) Deep Discharge,  Overload Protection

3. Communications & Management

Control Panel(LED Indicator )

Ac Mode

Green Lighting

Battery Model

Yellow Lighting

Battery Charging  Mode

Green Flashing Every 2 Seconds

Over Load

Red Flashing Every 0.5 Second

Fault

Red Lighting

Audible Alarm

Low Battery

Sounding Every 2 Seconds

Overload

Sounding Every 0.5 Second

Fault

Continuously Sounding

4. Environment And Safety

Operating Environment

0~40 Degrees Centigrade, 0 - 90% Non Condensing

Transit/Storage Temperature

-15°C To 55°C (5°F To 131°F)

Operating Altitude

0 ~ 3000 Meters

Audible Noise

Less than 50dba

Safety Markings

CE.FCC

Quality Control System

ISO 9001,CE,FCC

5. Physical

Dimensions(H×D×W)

355*130*230mm

N.W / G.W(Kg)

1.6  / 2 (Kg)

2 / 2.3 (Kg)

2.2 / 2.6 (Kg)

Packing

6pcs/Carton

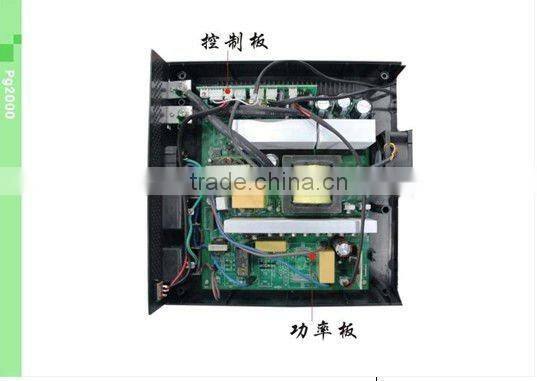

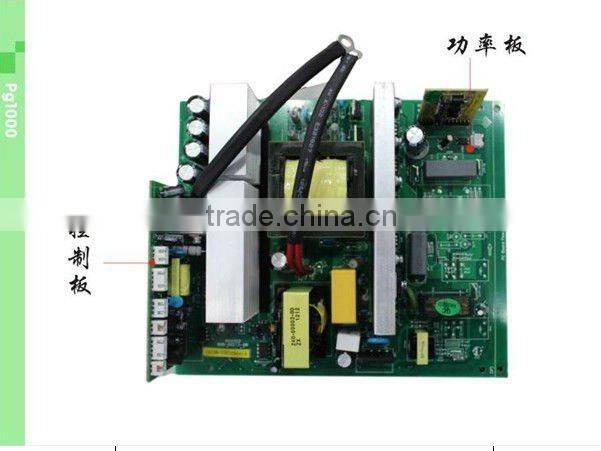

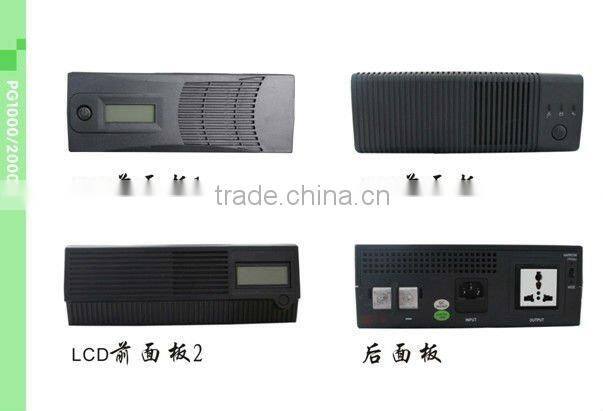

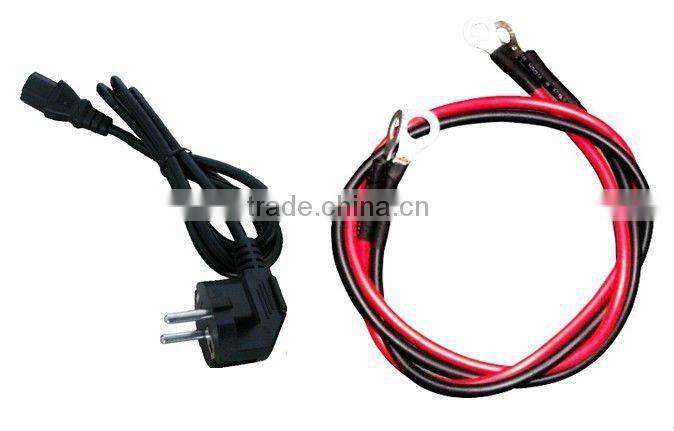

3. Pictures :



Square wave power inverter 1000vaSquare wave power inverter 1000vaSquare wave power inverter 1000vaSquare wave power inverter 1000vaSquare wave power inverter 1000va



4.Typical Applications



Main for home and office Appliance,TV,refrigerator,fan,air conditioner,induction cooker,computer etc.



 Square wave power inverter 1000va
