MUST Solar-DC12V 600w LCD Inverter Charger

MUST Solar-DC12V 600w LCD Inverter Charger thumbnail-1
MUST Solar-DC12V 600w LCD Inverter Charger photo-1
US$ 52 - 60 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MUST Solar-
Model Number:
PG Series inverter with charger
Contact Supplier Request Quote Chat Now
Shenzhen Must Solar Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MUST Solar-
Model Number PG Series inverter with charger
Output Power 500 - 1000W
Output Type Single
Size 224*255*80mm
Weight 2.3kgs
Input Voltage 110v/120v/220v/230v
Output Voltage 110v/120v/220v/230v
Type DC/AC Inverters
Output Frequency 50Hz/60Hz
Output Current 10A

Specifications

DC12V 600w LCD inverter charger
1.Wide input range 90-280VAC
2.Rack Town Design
3.Home use
4.High Frequency

DC12V 600w LCD inverter charger







Typical Application.







  Main for home and office Appliance such ad computer,TV,lights ,fan etc.





  Product Feature.









User selectable for accepting wider input voltage.


Rack Tower design, high Frequency, off mode charging..


Small scale and cost effective inverter for home appliances and office equipments Three - steps intelligent charging control to recharging time.

Compact size for convenient use and storage. Built-in from 10Amp super charger up to 100Ah battery.





MUST Solar-DC12V 600w LCD inverter charger

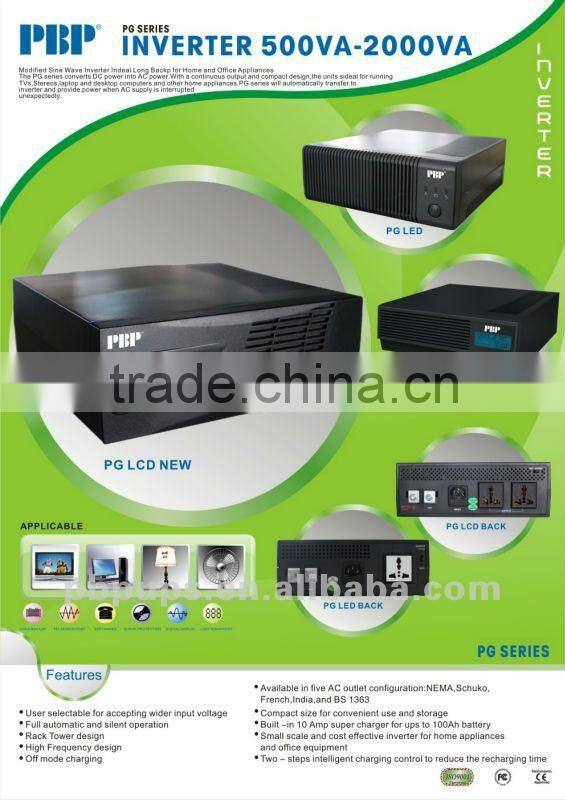

PG Series Power Inverter 500va /1000va /2000VA  LED Display

Rated Capacity 500VA/300W 1000VA/600W 2000VA/1200W

1.Input

Models 120V Models 230V Models
Nominal Voltage 110V/115V/120V Selectable 220V/230V/240V Selectable
Input Frequency 47Hz ~ 65Hz,  50/60Hz Auto-Sensing
Efficiency 95%(Normal Mode)
Noise Filtering Full Time EMI/RFI Filtering
Over Current Protection By Re-Settable Over Current Protector
Voltage Range 90 - 145VAC Or 170-280VAC ( Narrow Range ) 50-145VAC / 90 280VAC (Wide Range)
Surge Protection 324 Joules

2.Output

Rated Power 500va/300w 1000VA/600W 2000VA/12000W
Output Voltage 100V/110V/115V/120V Selectable 200V/220V/230V/240v selectable
Voltage Waveform Modified Sine Wave
Crest Factor 3:1
Output Frequency
(Synchronized To Mains)		 Auto Select For 50/60Hz
47Hz ~ 55Hz For 50Hz Nominal
56Hz ~ 65Hz For 60Hz Nominal
Regulation (Battery Mode) 10% -18%
Transfer Time 15ms Typical 50ms Max
Protection Over Load, Discharge, Overcharged
Battery Type Lead-Acid 12V 25Ah  ~ 250Ah
Voltage 500VA/1000VA :DC12V ; 2000VA :DC24V
Backup Time Depend On Battery
Charging Method 3 Steps Super Charge Mode
Charging Current 10A At Normal Line And Normal Temperature
Protection Over Current Protection Over Charging Voltage Protection  (No More Than 15V) Deep Discharge,  Overload Protection

3.Communications & Management

Control Panel(LED Indicator ) Ac Mode Green Lighting
Battery Model Yellow Lighting
Battery Charging  Mode Green Flashing Every 2 Seconds
Over Load Red Flashing Every 0.5 Second
Fault Red Lighting
Audible Alarm Low Battery Sounding Every 2 Seconds
Overload Sounding Every 0.5 Second
Fault Continuously Sounding

4.Environment And Safety

Operating Environment 0~40 Degrees Centigrade, 0 - 90% Non Condensing
Transit/Storage Temperature -15°C To 55°C (5°F To 131°F)
Operating Altitude 0 ~ 3000 Meters
Audible Noise 50dba
Safety Markings CE.FCC
Quality Control System ISO 9001

5.Physical

Dimensions(H×D×W) 355*130*230mm
N.W / G.W(Kg) 1.6  / 2 (Kg)  2 / 2.3 (Kg) 2.2 / 2.6 (Kg)
Packing 6pcs/Carton









3.Inside:



MUST Solar-DC12V 600w LCD inverter charger



MUST Solar-DC12V 600w LCD inverter charger

 MUST Solar-DC12V 600w LCD inverter chargerMUST Solar-DC12V 600w LCD inverter charger





 MUST Solar-DC12V 600w LCD inverter charger
