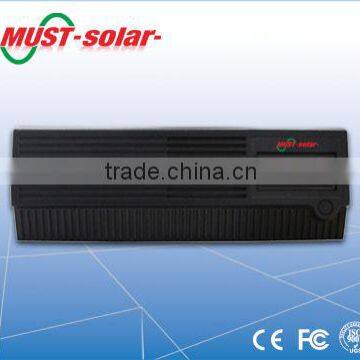

<MUST Solar>2000W 12VDC-220VAC power home inverter 2KVA

Specifications

*high frequency transformer
*double PCB boards
*20A/10Amp battery charger
*LCD display(new mould)
*OEM service







NEW FUNCTION 10A/20A CHARGING CURRENT ADJUSTABLE









PG Series Home Inverter NEW Panel:



PG Series 1KVA 2kVA 10A/20A Battery Charging Current  DC to AC Mini Home Inverter







10A/20A Charging Current 1000VA 2000VA DC to AC Home Power Inverter

PG modified sine wave inverter is a combination of an inverter and a charge. It offers a smart, convenient and economic way to get AC power supply from DC source for most electrical equipment. When the AC input is available, it will switch to AC power supply and starts charging on the batteries.

The PG series converts DC power into AC power. With a continuous output and compact design, the units is ideal for running TVs, Stereos, Laptop and computers and other home appliances .PG series will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.



Home Power Inverter Features:Wide Input range 90-280VAC





Home Power Main Feature:



1.Automatic line-to-battery switchover
2.selectable input voltage ranges, power inverter has wide input range:90-280Vac



narrow input range:170-280Vac
3.small power inverter has high efficient DC-to-AC conversion, minimizing energy loss



4.Rack Tower design for flexible placement
5.small power inverter built-in enhanced charger 8Amps for up to 100Ah battery
6.Intelligent 2-stage charger control for efficient charging and preventing overcharge
7.overload protection
8.auto restart while AC recovery
9.Multi-function LED indications and buzzer alarms



10.small scale and cost effective inverter for home appliance and office equipment



11.LED indicator of power inverter for the battery mode, AC mode, battery charging mode, overload mode and fault warning



12. over 95% efficiency in AC to AC mode



13. audible alarm for the low battery, overload, overcharge and fault



14. full protection of power inverter against deep discharge, overcharge, overload protection, short circuit, overvoltage and under voltage (compact power inverter)





Home Power Inverter Applications:
Main for home and office Appliance such ad computer, TV, lights, fan etc.





1.Home Power Inverter Specifications:



PG Series Power Inverter 500va /1000va /2000VA  LCD Display

Rated Capacity

500VA/300W

1000VA/600W

2000VA/1200W

1.Input

Models	120V Models		230V Models
Nominal Voltage	110V/115V/120V Selectable	220V/230V/240V Selectable
Input Frequency	47Hz ~ 65Hz,  50/60Hz Auto-Sensing
Efficiency	95%(Normal Mode)
Noise Filtering	Full Time EMI/RFI Filtering
Over Current Protection	By Re-Settable Over Current Protector
Voltage Range	90 - 145VAC Or 170-280VAC ( Narrow Range ) 50-145VAC / 90 280VAC (Wide Range)
Surge Protection	324 Joules

2.Output

Rated Power	500va/300w	1000VA/600W		2000VA/12000W
Output Voltage	100V/110V/115V/120V Selectable		200V/220V/230V/240v selectable
Voltage Waveform	Modified Sine Wave
Crest Factor	3:1
Output Frequency (Synchronized To Mains)	Auto Select For 50/60Hz 47Hz ~ 55Hz For 50Hz Nominal 56Hz ~ 65Hz For 60Hz Nominal
Regulation (Battery Mode)	10% -18%
Transfer Time	15ms Typical 50ms Max
Protection	Over Load, Discharge, Overcharged



Battery Type	Lead-Acid 12V 25Ah  ~ 250Ah
Voltage	500VA/1000VA :DC12V ; 2000VA :DC24V
Backup Time	Depend On Battery
Charging Method	3 Steps Super Charge Mode
Charging Current	10A At Normal Line And Normal Temperature
Protection	Over Current Protection Over Charging Voltage Protection  (No More Than 15V) Deep Discharge,  Overload Protection

3.Communications & Management

Control Panel (LED Indicator )	Ac Mode	Green Lighting
	Battery Model	Yellow Lighting
	Battery Charging  Mode	Green Flashing Every 2 Seconds
	Over Load	Red Flashing Every 0.5 Second
	Fault	Red Lighting
Audible Alarm	Low Battery	Sounding Every 2 Seconds
	Overload	Sounding Every 0.5 Second
	Fault	Continuously Sounding

4.Environment And Safety

Operating Environment	0~40 Degrees Centigrade, 0 - 90% Non Condensing
Transit/Storage Temperature	-15°C To 55°C (5°F To 131°F)
Operating Altitude	0 ~ 3000 Meters
Audible Noise	50dba
Safety Markings	CE.FCC
Quality Control System	ISO 9001

5.Physical

Dimensions(H×D×W)	355*130*230mm
N.W / G.W(Kg)	1.6  / 2 (Kg)	2 / 2.3 (Kg)	2.2 / 2.6 (Kg)
Packing	6pcs/Carton



2.PG Home Power inverter Data Sheet:



NEW:







DC to AC Home Power Inverter LCD display:









 3.Home Power Inverter PG Series Inside:







4.Home power inverter PG Series 1000VA-2000VA Packing:





Home Power Inverter With Battery Cable:















PG Home power Inverter Socket And Cable:











5.Home Power Inverter Production Line:







Home Power Inverter Test Machine:







HongKong Electronice Fair:





  PG Series 1KVA 2kVA 10A/20A Battery Charging Current  DC to AC Mini Home Inverter
