Specifications
1.10-20A charger inverter2. double PCB board
3.with big transformer
4. dc to ac inverter
5. computers 1kva inverter
NEW FUNCTION 10A/20A CHARGING CURRENT ADJUSTABLE
PG Series Home Inverter NEW Panel:

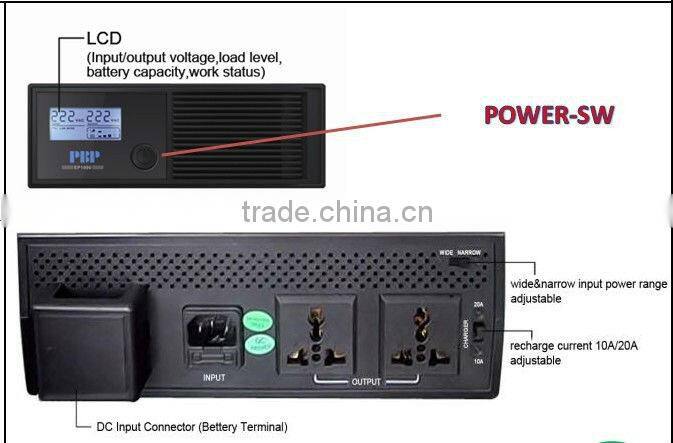

Computers ups inverter with Battery Connect Cable 1kva
PG modified sine wave inverter is a combination of an inverter and a charge. It offers a smart, convenient and economic way to get AC power supply from DC source for most electrical equipment. When the AC input is available, it will switch to AC power supply and starts charging on the batteries.
The PG series converts DC power into AC power. With a continuous output and compact design, the units is ideal for running TVs, Stereos, Laptop and computers and other home appliances .PG series will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.
Features:Wide Input range 90-280VAC
Main Feature:
1.Automatic line-to-battery switchover
2.selectable input voltage ranges, power inverter has wide input range:90-280Vac
narrow input range:170-280Vac
3.small power inverter has high efficient DC-to-AC conversion, minimizing energy loss
4.Rack Tower design for flexible placement
5.small power inverter built-in enhanced charger 8Amps for up to 100Ah battery
6.Intelligent 2-stage charger control for efficient charging and preventing overcharge
7.overload protection
8.auto restart while AC recovery
9.Multi-function LED indications and buzzer alarms
10.small scale and cost effective inverter for home appliance and office equipment
11.LED indicator of power inverter for the battery mode, AC mode, battery charging mode, overload mode and fault warning
12. over 95% efficiency in AC to AC mode
13. audible alarm for the low battery, overload, overcharge and fault
14. full protection of power inverter against deep discharge, overcharge, overload protection, short circuit, overvoltage and under voltage (compact power inverter)
Applications:
Main for home and office Appliance such ad computer, TV, lights, fan etc.
1.Home Inverter Specifications:
PG Series Power Inverter 500va /1000va /2000VA LCD Display
| Rated Capacity | 500VA/300W | 1000VA/600W | 2000VA/1200W |
1.Input
| Models | 120V Models | 230V Models | |
| Nominal Voltage | 110V/115V/120V Selectable | 220V/230V/240V Selectable | |
| Input Frequency | 47Hz ~ 65Hz, 50/60Hz Auto-Sensing | ||
| Efficiency | 95%(Normal Mode) | ||
| Noise Filtering | Full Time EMI/RFI Filtering | ||
| Over Current Protection | By Re-Settable Over Current Protector | ||
| Voltage Range | 90 - 145VAC Or 170-280VAC ( Narrow Range ) 50-145VAC / 90 280VAC (Wide Range) | ||
| Surge Protection | 324 Joules | ||
2.Output
| Rated Power | 500va/300w | 1000VA/600W | 2000VA/12000W | |
| Output Voltage | 100V/110V/115V/120V Selectable | 200V/220V/230V/240v selectable | ||
| Voltage Waveform | Modified Sine Wave | |||
| Crest Factor | 3:1 | |||
| Output Frequency (Synchronized To Mains) | Auto Select For 50/60Hz 47Hz ~ 55Hz For 50Hz Nominal 56Hz ~ 65Hz For 60Hz Nominal | |||
| Regulation (Battery Mode) | 10% -18% | |||
| Transfer Time | 15ms Typical 50ms Max | |||
| Protection | Over Load, Discharge, Overcharged | |||
| Battery Type | Lead-Acid 12V 25Ah ~ 250Ah |
| Voltage | 500VA/1000VA :DC12V ; 2000VA :DC24V |
| Backup Time | Depend On Battery |
| Charging Method | 3 Steps Super Charge Mode |
| Charging Current | 10A At Normal Line And Normal Temperature |
| Protection | Over Current Protection Over Charging Voltage Protection (No More Than 15V) Deep Discharge, Overload Protection |
3.Communications & Management
| Control Panel (LED Indicator ) | Ac Mode | Green Lighting |
| Battery Model | Yellow Lighting | |
| Battery Charging Mode | Green Flashing Every 2 Seconds | |
| Over Load | Red Flashing Every 0.5 Second | |
| Fault | Red Lighting | |
| Audible Alarm | Low Battery | Sounding Every 2 Seconds |
| Overload | Sounding Every 0.5 Second | |
| Fault | Continuously Sounding |
4.Environment And Safety
| Operating Environment | 0~40 Degrees Centigrade, 0 - 90% Non Condensing |
| Transit/Storage Temperature | -15°C To 55°C (5°F To 131°F) |
| Operating Altitude | 0 ~ 3000 Meters |
| Audible Noise | 50dba |
| Safety Markings | CE.FCC |
| Quality Control System | ISO 9001 |
5.Physical
| Dimensions(H×D×W) | 355*130*230mm | ||
| N.W / G.W(Kg) | 1.6 / 2 (Kg) | 2 / 2.3 (Kg) | 2.2 / 2.6 (Kg) |
| Packing | 6pcs/Carton | ||

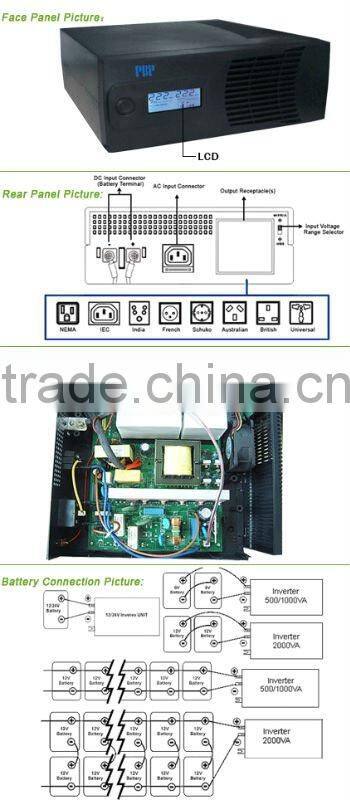

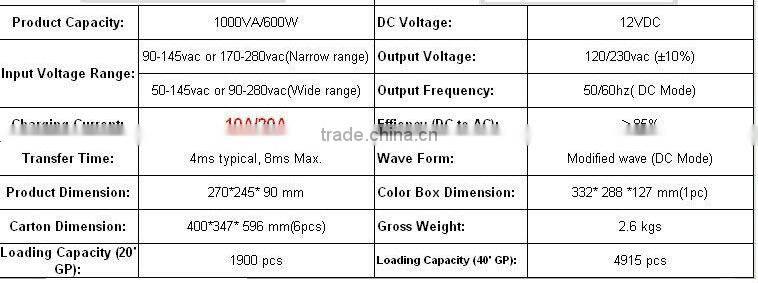

2.PG inverter Data Sheet:
NEW:

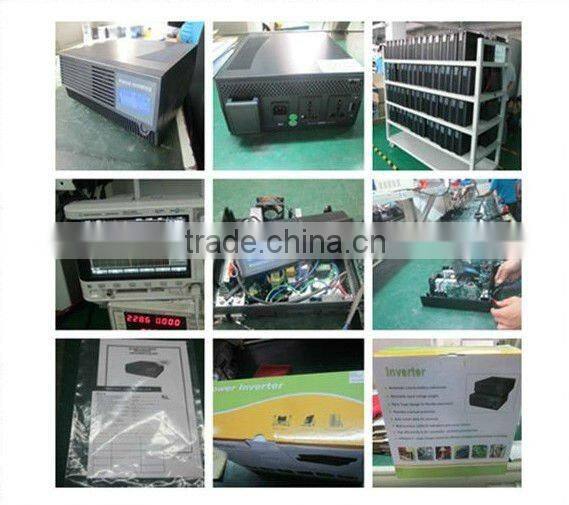

3.Home Inverter Inside:
4.Home inverter Packing:
Socket And Cable:

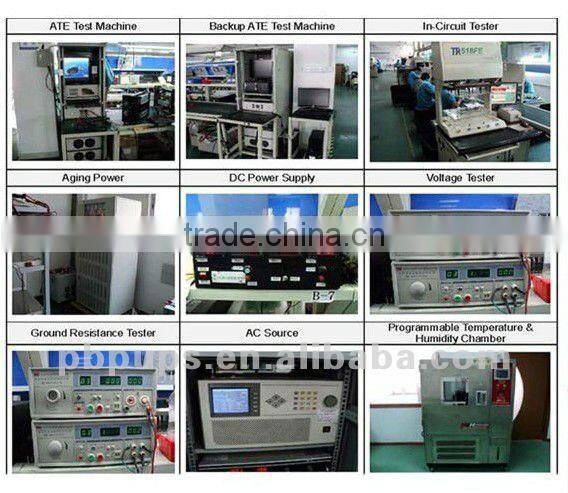

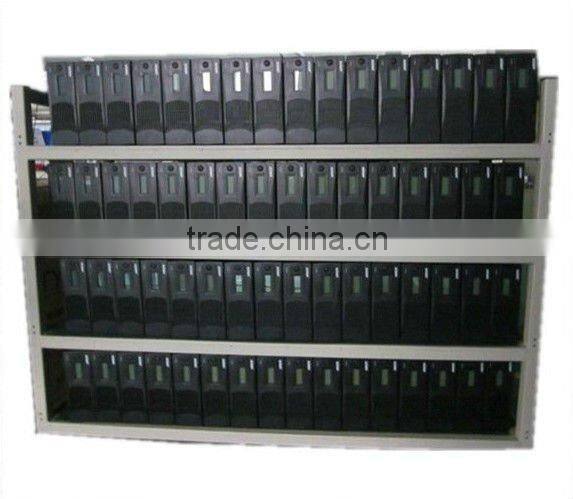

5.Production Line:
Computers ups inverter with Battery Connect Cable 1kva
