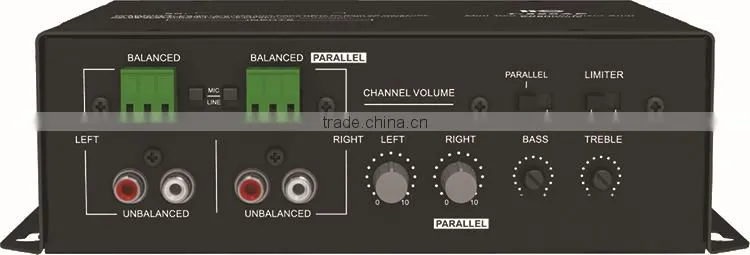

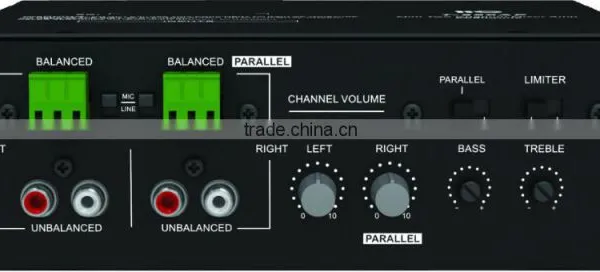

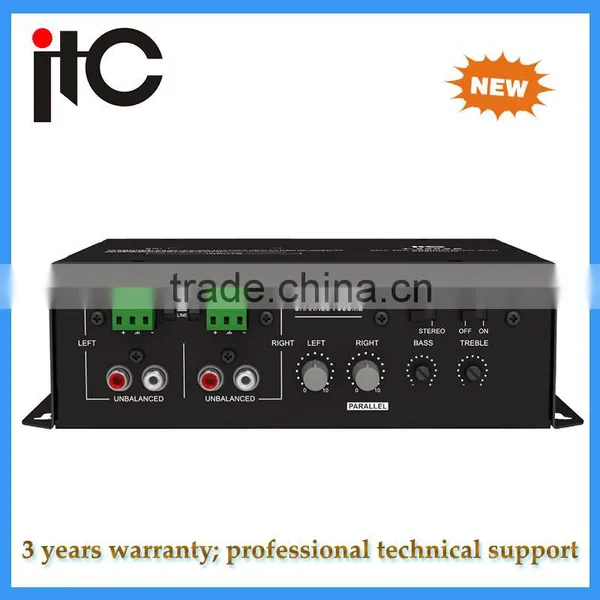

T-260AP Digital tabletop mini class d stereo amplifier
* It’s designed in desktop or wall mount..
* High efficiency class D mini amplifier.
* 2 stereo output in 60W and parallel connection output in 120W.
* With 2 switchable Mic/line input and 2 unbalanced AUX input.
* Left and right master volume controls over Mic and music , bass and treble tone controls.
* Output is in type of phoenix; With switcher to choose parallel or stereo output.
* 2 stereo output at impedance of 4 ohm or 8 ohm and parallel connection output at 8 ohm.
* Built in limiter for noise, and it’s with switcher of on/off, which make it suitable for laptop and iphone input.
mini class d stereo amplifier
Model |
T-260AP |
Rated Power Output |
2x60W (THD10% @ 4Ω1KHz) |
Speaker Outputs |
4Ω or 8Ω |
Input |
2 AUX inputs by RCA and 2 MIC/Line inputs by phoenix connectors |
LINE |
350mV/10KΩ |
MIC Input |
5mV/600Ω |
Frequency Response |
50Hz~18KHz (±2dB) |
S/N Ratio(line) |
Better than 85dB |
THD |
Less than 0.5% at 1KHz, 1/3 rated power |
Efficiency |
85% |
Controls |
Power switch, volume control |
Indicators |
Power |
Protection |
AC fuse, clipping, high temp & short-circuit |
Power Supply |
~110V/60Hz or ~230V/50Hz |
Dimensions |
230x115x56.5mm |
Finish |
Panel: steel, black Case: steel, black |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
