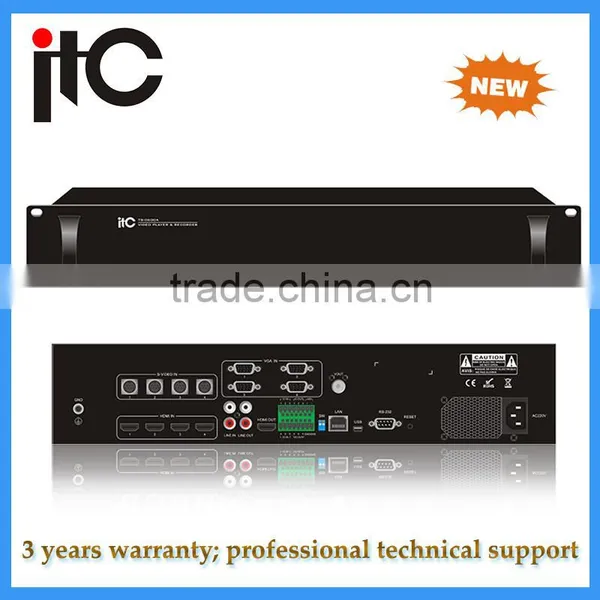

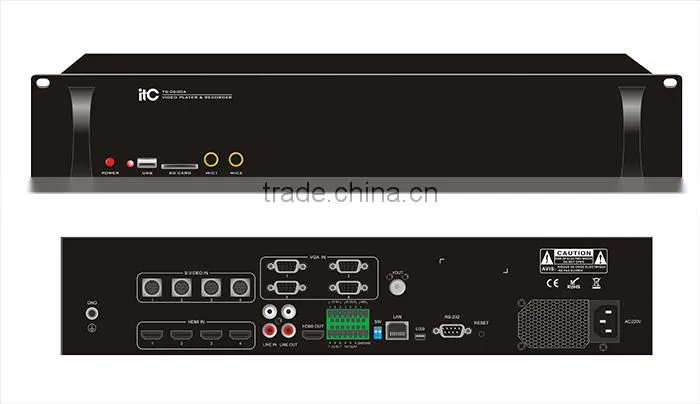

Auto HD recording and broadcasting host
TS-0600A is a fully automated high-definition recording and broadcasting host for video conferencing industry, video conferences, training, education and other needs of independent research and development of the latest generation of multimedia information recording and communication devices, embedded integrated design, using high-performance SOC processor, host integrated signal acquisition, image processing, video and audio encoding, recording, directed, publishing and other functions.
It supports YPbPr, VGA, HDMI high-definition video signals and a stereo audio signals input simultaneously.
It supports any combination of recording, live, on-demand storage, local preview, local playback.
It supports a high definition HDMI1080P video signal and a stereo audio signal output to meet the full HD video recording and playback needs.
Host uses B / S architecture, without having to install special player plug-in, and supports for multi-kinds browser multi-terminal online live and on-demand;
Video features
- Standard H.264, MPEG-4, M-JPEG video compression format;
- coding size 1920 X 1080, 720 X 480, support 1080P @ 60 frame coding;
- 4-channel HDMI, 4- channel YPbPr, 4- channel VGA signal input, 1 channel HDMI, 1 channel composite video signal output
- Video Input Support 1080P @ 50HZ: 1920 X 1080; 1080P @ 60HZ: 1920 X 1080; 720P @ 50HZ: 1280 X 720; 720P @ 60HZ: 1280 X 720; VGA @ 60HZ: 1024 X 768; SVGA @ 60HZ: 800 X 600; XGA @ 60HZ: 1024 X 768; WXGA @ 60HZ: 1280 X 800; SXGA @ 60HZ: 1280 X 1024; WXGA + @ 60HZ: 1440 X 900 @ 60HZ; 1366 X 768 @ 60HZ; 1600 X 1200 @ 60HZ format;
- Video output supports 1920 X 1080 / HDMI interface, 720 X 480 / BNC interface;
- Video bit rate 384Kbps ~ 12Mbps continuously adjustable;
- Screen latency is less than 300 milliseconds (LAN);
- Supports multi-stream real-time transmission, support different resolution video streams in real-time transmission;
Audio Features
- Standard G.711, AAC audio compression format;
- compression rate 32Kbps, 48Kbps, 64Kbps;
- 2- channel microphone input, 1 channel LINE IN XLR input, 1 channel LINE OUT XLR output;
- Support for intercom;
Network Features
- 1-channel RJ45 10M / 100M / 1000M adaptive Ethernet port
- Support for TCP / IP, HTTP, UDP, RTP / RTCP, RTSP, DHCP, PPPOE, UPNP, SMTP, FTP, SIP, DDNS, DNS and other protocols
- Embedded WEB server, support IE browser, configure, upgrade;
- Support DDNS, LAN, WAN access
Taped feature
- support multicast;
- support image capture, video;
- Support Screen intelligent switching technology;
- The menu screen, PIP, PBP seven kinds of screen display mode;
- Each input channel brightness, saturation, contrast is adjustable;
- PIP transparency adjustable, integrated suspension PIP display;
- Support for remote viewing, downloading video files;
- Support local hard disk storage, U disk storage, network storage;
- Support phone online viewing;
- unique multi-screen smart switch mode
Maintenance Management
- support network or RS232 port upgrade software
- Multi-level password system;
Model |
TS-0600A |
Control Interface |
6-channel IO input (Semaphore) |
6-channel IO output (switch) | |
Communication Interface |
One RS232 port, One RS485 port |
Storage / Configuration Interface |
1 SATA HDD (optional), a USB port, an SD card interface |
Operating voltage |
AC220V |
Operating Frequency |
50HZ / 60HZ |
Maximum power consumption |
30W |
Operating temperature |
25 ~ 60 ℃ |
Operating humidity |
85% RH or less |
Weight |
5.7KG |
Dimensions (LWH) |
428mm X 300mm X 88.5mm |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
