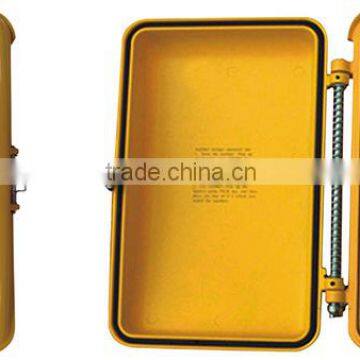

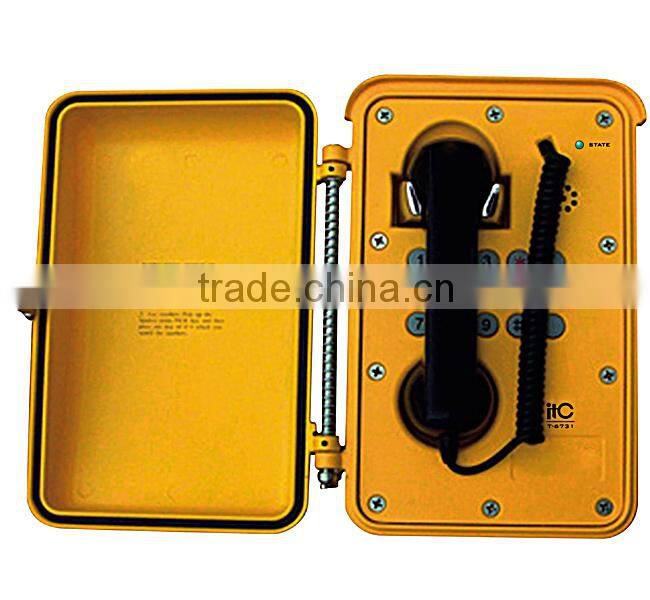

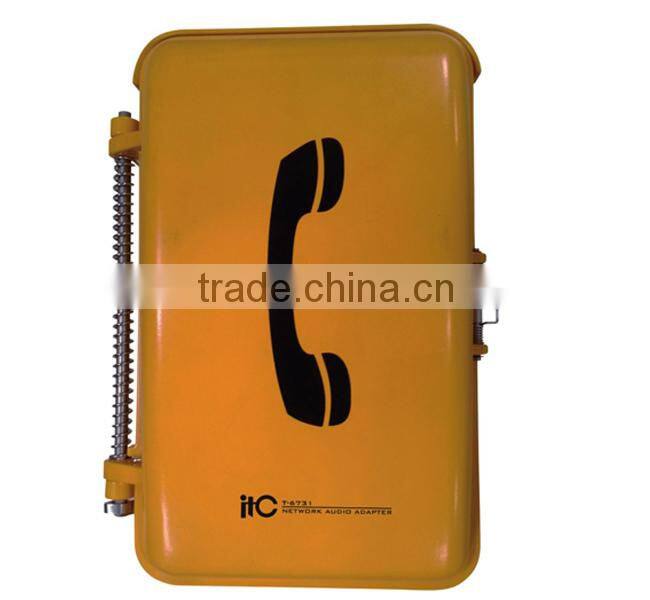

China Professional Manufacturer Industrial Emergency Waterproof IP Intercom System
T-6731
China professional manufacturer Industrial Emergency Waterproof IP Intercom System

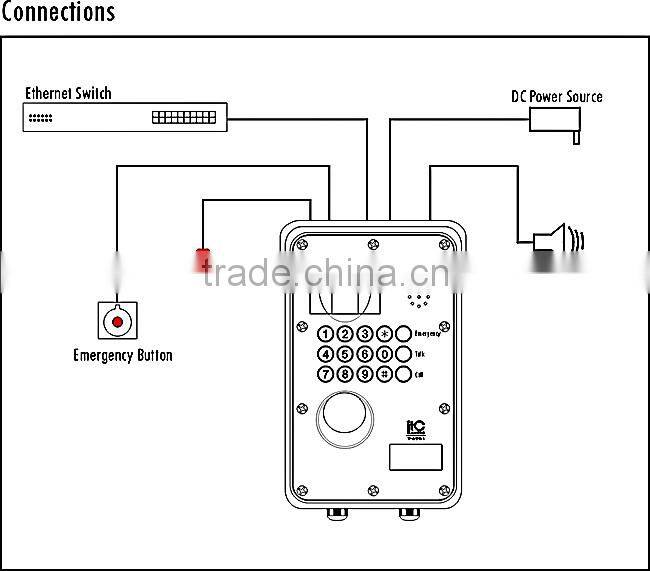

* Two way communication panel with button of capacity communicate with intercom station and other intercom panels.
* Ideal communication system for bank, prison, hospital, school, mining plant, transportation center, airport, metro or subway.
* Full IP/TCP network audio system which could be set up over non-dedicated network system.
* Embed PC technology, built-in DSP and high speed industrial chip to ensure start time less than 1 second.
* Ring call to intercom station microphone and automatically transfer function when no answer or busy.
* Built-in 20W class-D amplifier to power external 8 speaker.
* Built-in high sensitivity microphone for long distance voice pick.
* Intercom station microphone and PC server center can broadcast music or voice message directly.
* Hand free communication system.
* One dry contact output to inter-work with third party system.
* One dry contact input to be controlled by third party system.
* Safe DC24V power adapter supplied.
* Minimum data delay and no echo noise.
* Full aluminum alloy body of 5mm thickness for weatherproof IP66 level and explosive-proof design.
* Aluminum alloy mounting box supplied with both surface mount and in-wall mount design.
* Special anti-dismounting screw is supplied for fix up.
* Support WAN, LAN, span gateway and cross router.

Model | T-6731 |
Network Interface | Standard RJ45 input |
Communication Protocol | TCP/IP, UDP, IGMP |
Audio Format | MP3/MP2 |
Sampling Rate | 8K~48KHz |
Transmission Speed | 10/100Mbps |
Audio Mode | 16-bit stereo CD sound level |
Frequency Response | 20-16kHz (+1dB, -3dB) |
T.H.D. | ≤0.3% |
S/N Ratio | >70dB |
Speaker Output & Impedance | 20W, 8ohm |
Woking Temp | 5°C -40°C |
Humidity | 20%-80% |
Power Consumption | ≤30W |
IP Rate | IP66 |
Power Supply | DC 24V |
Dimensions | 320x205x120mm |
Weight | 5.5Kg |
