ITC T-7801 Network IP based PA system Terminal for audio sound system
1) Professional cabinet type 1 channel network audio decoder ;
2) Installed in low voltage room or sub-control room of PA management area, which could be connected to 2 power amplifier and control the power supply of amplifiers.
1) Standard 19-inch rack design, black brushed alumina panel;
2) Based on Luna cloud; with excellent security and stability; support continuously working of 7x24 hours;
3) Built-in 4.3 inch LCD screen, and using 21 industrial-grade metal buttons;
4) With 2Gbyte SSD; support remote server management; support background download in limited bandwidth and auto download in free time to decrease the loan of the network; the media library supports the function of offline auto playback;
5) With USB port to read USB storage device in capacity of up to 4T ,which could play audio files;
6) With Micro SD(TF) slot to read SDXC in capacity of up to 128G, support 128G/SDXC card, for user-friendly audio program changing;
7) With the function of IP audio decoding to achieve high-quality digital audio transmission; 2 power output to be connected to amplifiers; the interface with the function of intelligent management, when no signal input, it would cut off the power supply of the amplifier; with the function of programmable pre-open;
8) 2 channel 3-wire forced switching output, to realize 3-wire volume control switch for alarm mode without having DC 24V forced switching power and the quantity of volume control is unlimited;
9) With 2 network port to support exchange expansion mode and redundant backup mode and the speed is up to 1000M;
10) Various network access method, including DHCP access, ADSL access, fixed IP address access, etc;
11) Built-in 24Bit professional sound card to realize hi-fi playing, and the audio stream is up to 768Kbps;
12) With 2 Line input, 1 Mic input, and 1 EMC input; with internal digital preamplifier; support user-customized priority; With 1 monitoring Mic to realize multiple function, such as self-detection, working ambient monitoring, attendance checking for duty officer, etc;
13) Built-in 2 independent Line output to be linked with external power amplifier; connecting outer PA; with standard headset jack to monitor audio and reinforce sound;
14) With 2 short input and 2 short output which could be user-customized; could realize short signal collection, alarm trigger, and the linkage with the third-party fire alarm or monitoring system;
15) With 2 power output which supports intelligent power-saving and pre-open management to ensure reliable and energy-saving working;
16) With 2 forced switching output; volume control could be switched forcibly when paging and emergency happens;
17) With 1 button to restore factory settings;
18) With a group of RJ45 expansion port to achieve expansion for functions and operation;
19) Powered by electric supply and seamlessly switching backup power at DC 24V to support continuously working of 7x24 hours.

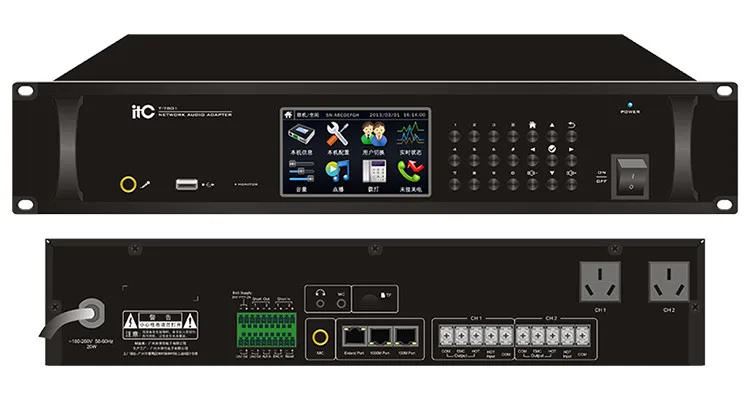

T-7801 IP Network Audio Sound System Rack-Mount Terminal

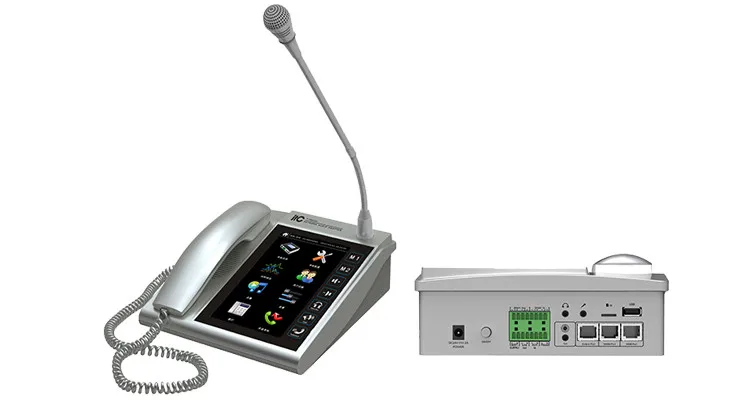

T-7802 Desktop Intercom Paging Microphone

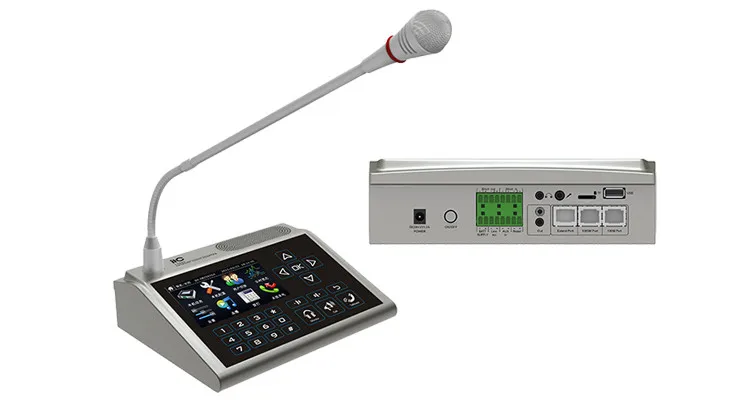

T-7802U Desktop Network Branch Control Paging Microphone
Full-sealing package of Products
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
