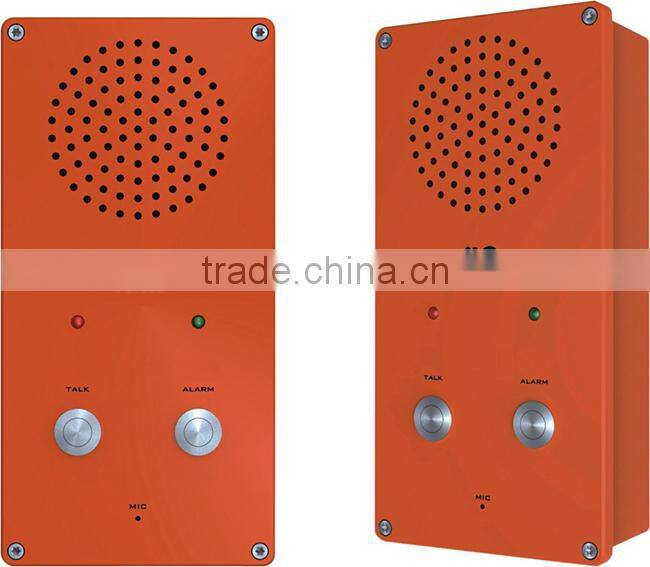

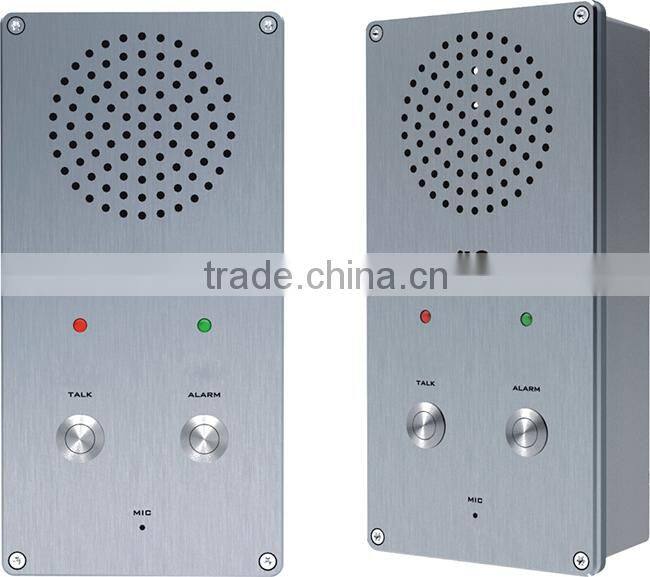

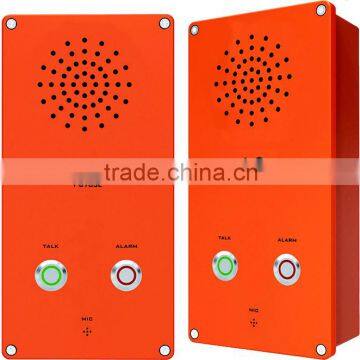

T-6703E Weatherproof Emergency Call ip based audio intercom system
Professional two way communication IP network panel with Call & Service two buttons press. Suitable for indoor and outdoor, waterproof & explosion-proof; initiate an emergency signal and intercom communication with one button press.
* Simple appearance, beautiful lines, high-grade brushed aluminum panel, durable, both in-wall mount and surface mount design (with bottom box).
* Embed PC technology, built-in DSP and high speed industrial chip to ensure start time less than 1 second.
* One button call for help to duty room intercom microphone, the other to achieve the emergency function of relevant region, fast links, simple and quick operation.
* Built-in high sensitivity microphone for long distance voice pick up, high reducibility tone.
* Built-in a 5W full range monitor speaker of excellent voice restoration.
* Built-in 10W class-D amplifier to power 4Ω& 10W speaker.
* Hand free communication system.
* Support local electronic door locks, local alarm indicator (1 out of 2)
* Support local emergency signal input.
* Safe DC 11.5V~24.5V power adapter supplied.

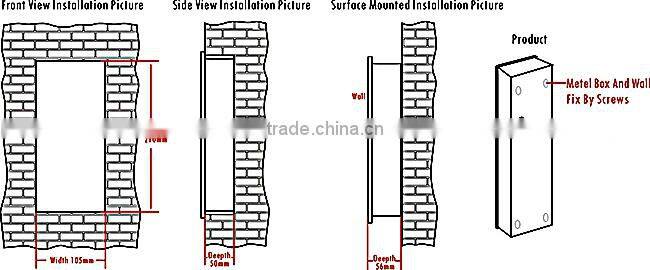

* Aluminum mounting box supplied with both surface mount and in-wall mount design.
* Full aluminum body for weatherproof IP55 level and explosive-proof design.
* Support WAN, LAN, Span gateway and cross router.
Model | T-6703E |
Network Interface | Standard RJ45 input |
Communication Protocal | TCP/IP,UDP,IGMP |
Audio Format | MP3/MP2 |
Sampling Rate | 8K~48KHz |
Transmission Speed | 10/100Mbps |
Audio Mode | 16-bit stereo CD sound level |
Frequency Output | 20Hz~16KHz |
T.H.D. | ≤0.3% |
S/N Ratio | >70dB |
Aux Input | 350mV (Industrial standard Volt line terminals) |
Built-in Speaker Power & Impedance | 8Ω/5W |
Speaker Output & Impedance | 4Ω,10W (Industrial standard Volt line terminals) |
Line Output | 1V (Industrial standard Volt line terminals) |
Working Temp | 5°C~40°C |
Humidity | 20%~80% |
Power Consumption | ≤20W |
Power Supply | DC 12V~DC 24V |
Weatherproof Level | IP55 |
Dimensions | 210×105×56mm |
Weight | 1Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
