T-6717 IP Intercom Emergency Call Service bank intercom system
It’s in design of double 86 bottom box; Easy installation
2 option: 1-key (for alarm) or 2-key (1 for alarm, the other for business dialogue);

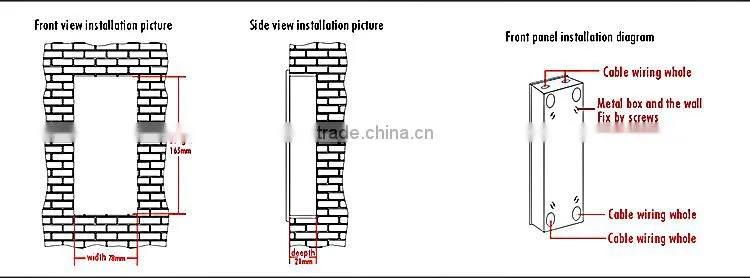

2 modes of install: 1 Unfold install; 2 Concealed install
Just to press 1 key to call the target terminal; Full-duplex communication
Connection way is hand-in-hand, which is up to 15; The distance is up to 1.2Km
Built in nonpolar mic and amplifier circuit to achieve high sensitive pick-up
With 2W hi-fi full range speaker
It’s in high degree of protection design; To adopt aluminum alloy case and anti-demolition screw; And it’s waterproof.
Model |
T-6717 |
Network Interface |
Standard RJ45 input |
Communication Protocol |
RS485 |
Frequency Response |
80Hz~16KHz (+1dB,-3dB) |
T.H.D. |
≤0.01% |
S/N Ratio |
≥85dB |
Mic Input |
10mV |
Speaker Power & Impedance |
2W,4Ω |
Power |
≤3W |
Power Supply |
Within 300 meters direct power supply from T-6715, external DC 24V is needed when distance is more, max 1.2kms |
Dimensions |
172x86x23mm |
Weight |
0.2Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
