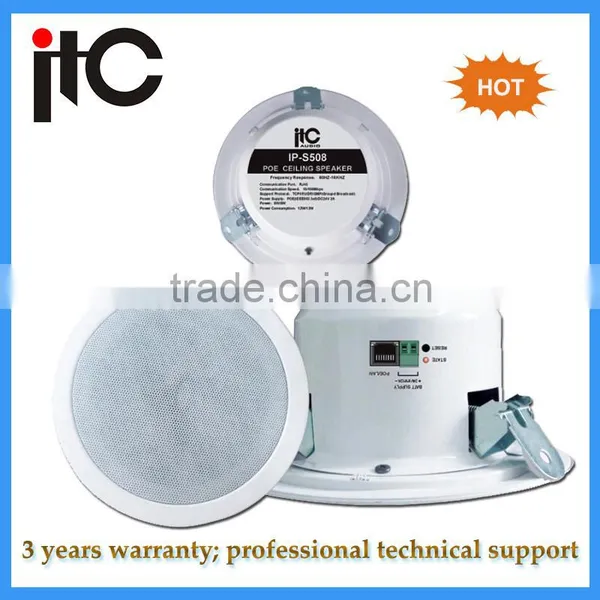

IP network poe active ip ceiling mount speaker
( IP Network Audio System & Intercom Communicaiton System)
It’s in professional all in one design. It’s ceiling speaker with tech. of IP audio codec. It’s built in digital amplifier of constant impedance output and hifi speaker.
It’s suitable for office, conference room, etc where need sentinel play.
It adopts DSP that make its startup time is less than 1s.
Power supply supports the method of IEEE802.3af which only needs a network cable so that it’s cost-effective and easy to be installed. The transmission distance is up to 80m.
It’s also with port for DC power, in case the power demand is higher than 10W.
Internal digital amplifier is with auto. gain adjustment, adaptive power supply and auto. amp adjustment
Therefore, it’s always in the status of high performance.
The speaker driver is in full band and highly sensitive.
It’s with retardant cover.

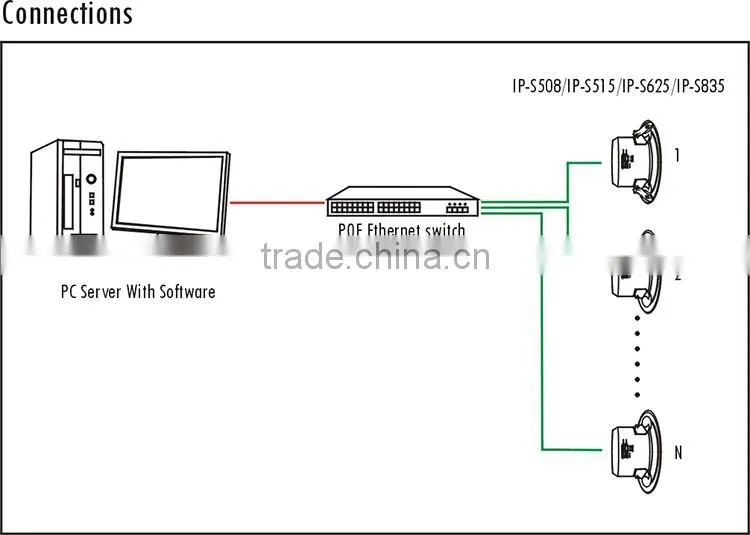

It should work with POE switcher.
It could start to work wherever there’s Ethernet port. And it support cross-segment and cross route.
Model |
IP-S508 |
IP-S515 |
IP-S625 |
IP-S835 |
Power supply |
POE or DC12V |
POE or DC24V |
||
Power Consumption |
12W |
24W |
36W |
48W |
LAN Connector |
RJ45 |
|||
Transmission Speed |
10/100Mbps |
|||
Communication Protocol |
TCP/IP, UDP, IGMP (Group Broadcast) |
|||
Aux Format |
MP3/MP2 |
|||
Aux Mode |
16digit stereo CD level |
|||
Sampling Rate |
8K~48K |
|||
Bit Rate |
8K~512Kbps |
|||
Rated Power |
8W |
15W |
25W |
35W |
Max Power |
10W |
20W |
30W |
40W |
Sensitivity |
92dB |
|||
Frequency response |
100Hz ~16KHz+1/-3dB |
80Hz ~18KHz+1/-3dB |
||
THD |
≤0.1% |
|||
S/N Ratio |
≥85dB |
|||
Dimension |
200x106mm |
200x110mm |
202x152mm |
233x165mm |
Cutout Size |
Φ170mm |
Φ170mm |
Φ171mm |
Φ202mm |
Weight |
1.15Kg |
1.15Kg |
1.65Kg |
1.65Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
