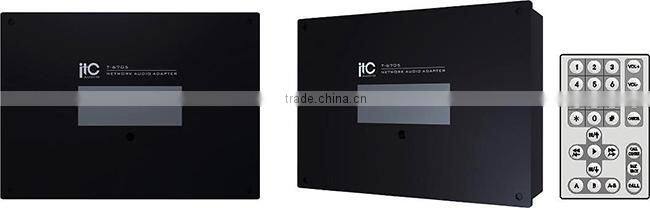

T-6705 IP LAN Network Audio Adapter PA System IP Amplifier
(IP digital amplifier, IP audio decoder, sound system over internet, voip sound system, IP addressable pa system, digital ip audio system, digital ip audio amplifier)
- The IP system, TCP system, IP PA system, Internet PA system are suitable for background music system, paging system and fire alarm system
- The public address system based on IP, it is easy to identify each amplifier and speaker
- The system is fully Digital PA system to make sure hi-fi sound quality
- The IP addressable PA system is fully digital link with intercom, CCTV, security and fire alarm system
- 4.3 inches LCD screen English display
- With remote control to write in and select
- Built-in 10W+10W stereo power amplifier
- Aux output for larger power amplifier
- Built-in time program collecting module to have real time broadcasting
- Expandable HUB module to realize hand-in-hand connection
- Support IR remote control to select program freely
- Support local MIC, line input and volume adjustment
- Remote priority forced insertion.
Model |
T-6705 |
Network Input |
Standard RJ45x3, 1 Input, 2 Output |
Protocol Support |
TCP/IP, UDP, IGMP (group broadcasting) |
Audio Formats |
MP3/MP2 |
Sampling Rate |
8K~48KHz |
Transmit Speed |
10Mbps |
Audio Format |
16 digit stereo CD tone |
Frequency Output |
20Hz~16KHz |
THD |
≤0.3% |
S/N |
≥70dB |
|
Speaker Output Impedance And Rated Power Output |
4ohm , 2x10W Industrial Standard Screw terminals |
Aux Line Voltage Input |
2x400mV Industrial Standard Screw terminals |
Sources Voltage Output |
2x775mV Industrial Standard Screw terminals |
Source Impedance Output |
0V Industrial standard screw terminals |
Mandatory Input |
1k ohm |
MIC Input S/N |
10mV |
Working Temperature |
5 ℃~+40℃ |
Working Humidity |
10%~90% |
Power Consumption |
≤40W |
Power Supply |
~110V/60Hz or~230V/50Hz |
Dimensions |
259x187x70mm |
Weight |
3.02Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
