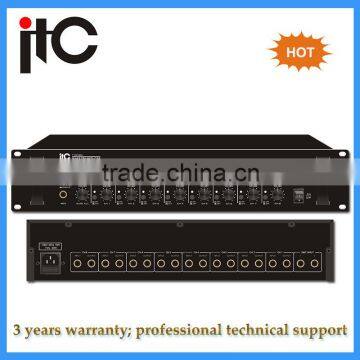

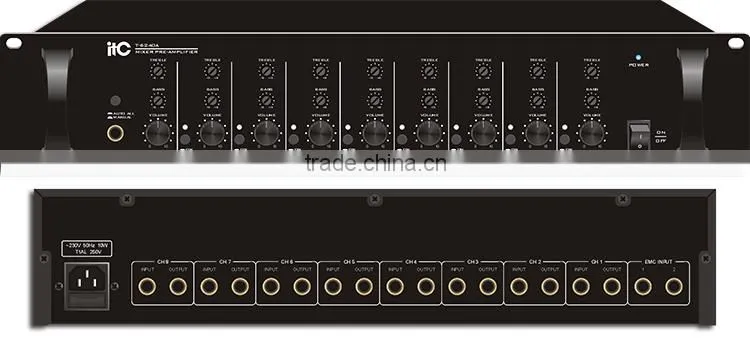

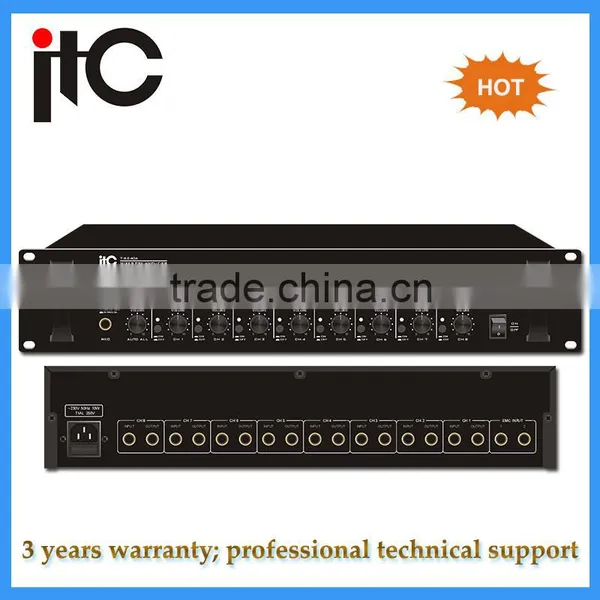

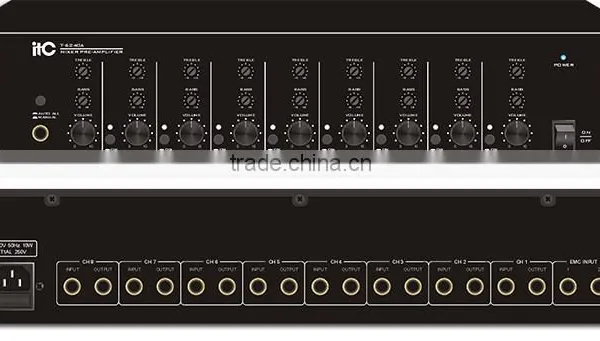

High quailty 2U aluminum pa system stereo integrated preamplifier
The T-6240 is a public address pre-amplifier with eight line level inputs, one unbalanced MIC input and two EMC(priority) level inputs. Each of the eight input channels can be selected via front panel push buttons for use with the MIC input, in this way the T-6240 can be used to page individual channel. Priority muting is achieved via EMC1-2 inputs for overriding other inputs except Mic1. Individual gain controls are provided for each channel and MIC inputs

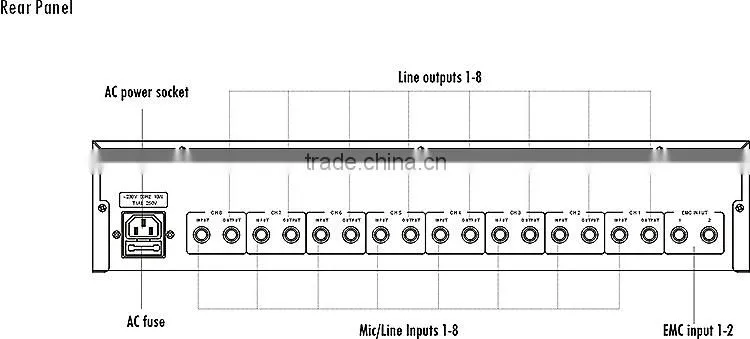

* 8 unbalanced line/Mic inputs by phone jack
* 8 unbalanced line outputs
* One Mic input with VOX priority
* Two EMC priority inputs
* EMC1 has priority over all inputs(Except MIC 1)
* 2U rack-mount chassis
Model |
T-6240 |
Input |
MIC: 70mV/600Ω, unbalanced CH1-CH8: 350mV/10KΩ, unbalanced EMC: 1.2V/10KΩ, unbalanced |
Output |
1V, 600Ω |
Frequency Response |
50Hz~18KHz(±2dB) |
S/N Ratio |
MIC: 66dB, LINE: 80dB |
THD |
0.01% |
Crosstalk |
MIC: 80dB, LINE: 85dB |
Muting Function |
EMC1, 2 overrides other input signals exception MIC1 With 0-30dB attenuation |
Controls |
LINE, MIC votume controls, channel selectors, power switch |
Indicators |
Power LED, MIC channel LED |
Protection |
AC fuse: 1A |
Power Supply |
~110V/60Hz or ~230V/50Hz |
Power Consumption |
35W |
Weight |
4.6Kg |
Dimensions |
484x303x88mm |
Finish |
Panel: aluminum plate, balck Case: steel plate, black |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
