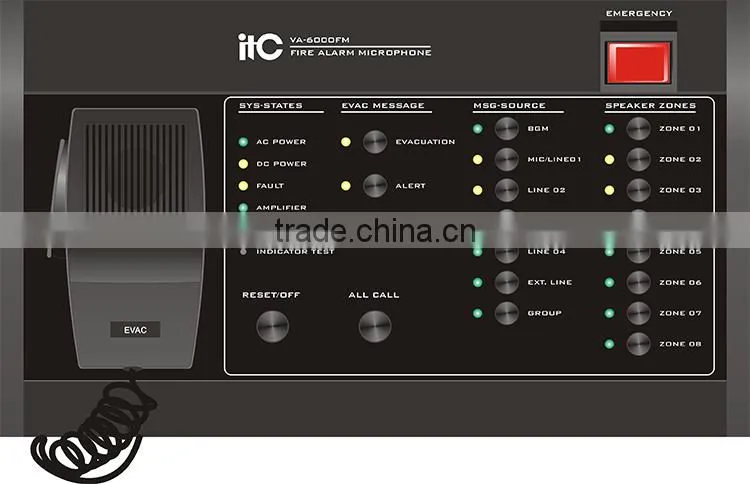

VA-6000FM Digital Fireman Microphone Addressable Fire Alarm Control Panel
VA-6000FM could control emergency voice alarm system remotely. It allows users to select the voice message and do zoning paging. It supports 8 zones/groups and it could be expanded via expansion unit. It could do cascade with up to 7 expansion units and each unit support 8 zones so that the Max. Quantity of zone is 64.
Easy operation.
It’s connected to the host via CAT5 so that the transmission distance is much longer.
Complete indication to display the system fault and the status of main modules.
Support zone expansion.
With line input and it has volume control.
Support spare line.
Could be powered up by phantom power at 24V.
Function:
Mic output is with volume control.
Its priority could be adjusted by the matching software VA-6000ST.
Built in Hifi speaker to do monitoring.
A hot key to trigger emergency PA status
With earphone jack to do monitoring and recording.
DC Supply | |
Power Supply |
24V DC, ±20% |
Maximum Current |
0.1 A(including extension unit) |
Power Comsumption |
2.4W(including extension unit) |
Perfermance | |
Parallel Signal Output | |
THD |
<1%(rated output power),1kHz |
Frequency |
80Hz~16kHz |
Sensitivity |
500mV |
Impedance |
10kΩ |
S/N Ratio |
>70dB |
Line In | |
THD |
<1%(rated output power),1kHz |
Frequency |
80Hz~16kHz |
Sensitivity |
350mV |
Impedance |
10kΩ |
S/N Ratio |
>70dB |
Microphone | |
Sensitivity |
5mV |
Impedance |
600Ω |
Machine | |
Demension( L×W×D ) |
256×52×149mm |
Net Weight |
1.5kg |
Mounting |
Desktop or 18 inch cabinet |
Color |
Black |
Environment | |
Operation Temperature |
+5℃ ~ +40℃ |
Storage Temperature |
-20℃ ~ +70℃ |
Relative temperature |
<95%(no condensation) |

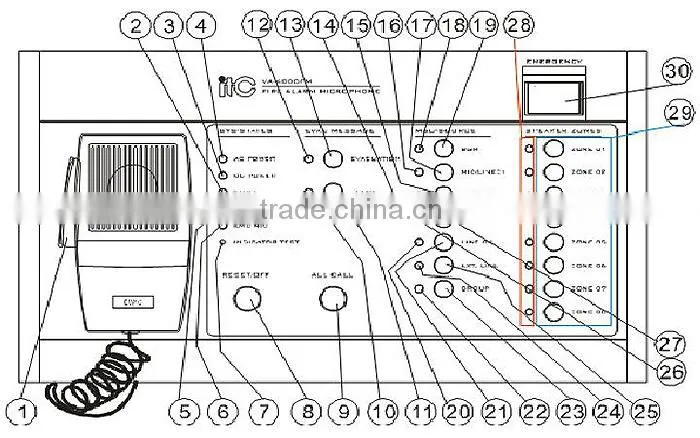

(1)(6) ——Handset PTT(push to talk)microphone call switch and work status indicator light
1, Off——PTT microphone normal;
2, Yellow——PTT microphone fault;
3, Flash Green——Microphone priority is replaced by the audio which has higher priority than it;
(2) ——System status indicator light (Note: not the microphone status display):
1, Off——All devices and module spare power normal;
2, Yellow——one or more devices and spare power fault;
(3) ——DC power status indicator light of the devices (System will ignore the working status if no configuration and display normal by default):
1, Off——Some or all of the devices DC power supply fault;
2, Yellow——All devices DC power supply normal(display normal even there is fault if no configuration);
(4) ——Main power status indicatorlight of the devices:
3, Off——All the devices or modules power supply normal;
4, Yellow——Some or all devices or module power supply fault;
(5)——Working status indicator light of the amplifier:
1, Off——All amplifier working normally including spare amplifier;
2, Yellow——Some or all amplifier fault;
(7) ——Indicator light of test button: After press the test button, all indicator light color will change from green to red to yellow and last to normal. System main power state indicator light:
1, Green——All devices and modules power supply normal;
2, Yellow——Some or all devices and modules main power supply fault;
(8) ——Fault resetting/ close zones;
(9) ——All zones selection button;
(10) ——Alarm voice status indicator light and control button;
1, Off——Alarm voice player and memory card audio file normal;
2, Green——Alarm voice is playing;
3, Yellow——Alarm voice lost or player fault;
(11)(12) ——Evacuation voice status indicator light and control button;
1, Off——Evacuation voice player and memory card audio file normal;
2, Green——Evacuation voice is playing;
3, Yellow——Evacuation voice or player fault;
(18)(19) ——BGM status indicator light and control button;
1, Off——BGM player and memory card audio file normal;
2, Green——BGM is playing;
3, Yellow——BGM or player fault;
(16)(17)(14)(15)(26)(27)(20)(21)——Main controller line input control and status indicator light;
1, Off——Current line input is not working;
2, Green——Current line input is working;
(24)(25)——Microphone and line input selection button, green means current input:
(22)(23)——zone and group control mode selection button:
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
