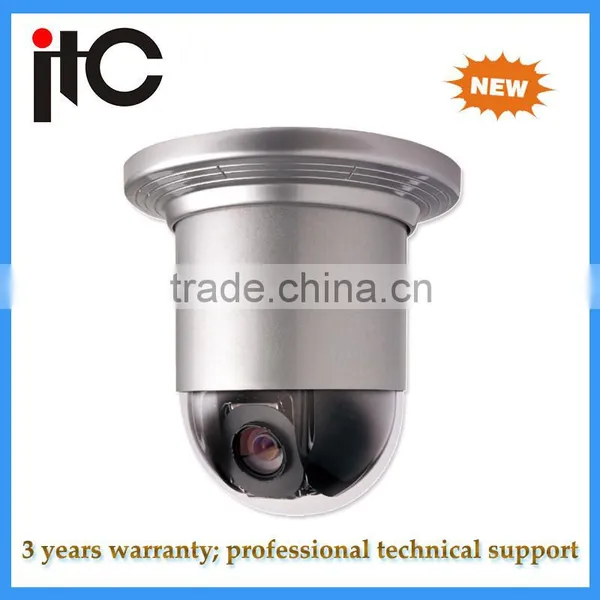

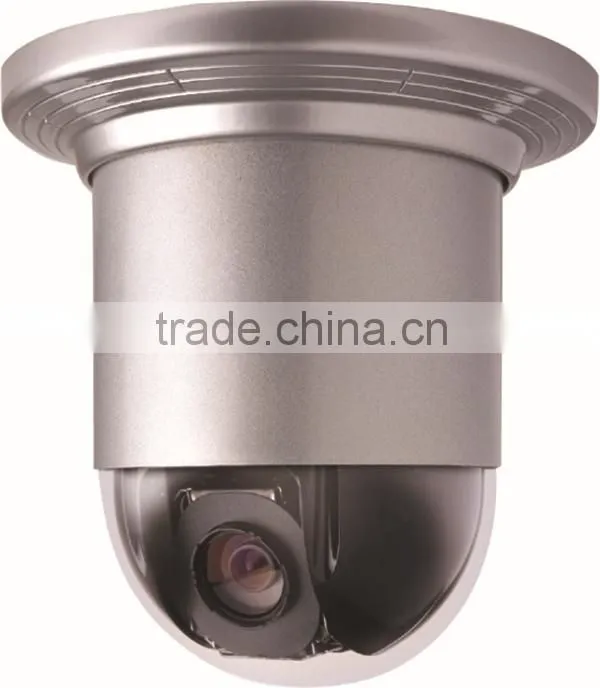

Ceiling Mount High Speed conference system camera
1)1/4" SONY SUPER HAD CCD.
2)18 times optical zoom, f=4.1mm(wide)-73.8mm(tele),F=1.4-F3.0.
3)480TVL.
4)High strength double glazed aluminium lunkerite bottom canopy, high temperature resistance and resistant to
corrosion.
5)the Ceiling Mount High Speed conference system camera has 360°continuous rotation, the max speed 300°/s.
6)4 roads alarm input and one road alarm output.
7)6 roads programmable tour check, 128 pre-points, with self-learning function.
8)OSD display English menu, pre-point title and camera address, etc. displayable.
9)Integrated multi protocols, baud rate optional, multi-cameras self-adaptation and standard RS-485 control.
10)Packed ports, with hot plug function, convenient for aloft working.
11)Zone hidden selection function (max 8 programmable hidden zones).
12)Built in 3KV lightning protection, surge protection and instant over voltage protection.
13)Adopt all-weather shield, built in automatic thermostatic apparatus.
14)Adopt AC24V power and line lock available.
15)About forty four hundred thousand pixel, 12 times digital zoom.
16)Lowest illumination: 1.0LX(standard) (F1.4,5OIRE).
Model |
TS-0691 |
Horizontal Turning |
0°~300°/s |
Vertical Rotation |
0°~120°/s |
Level Angle |
360°Infinite place |
Vertically Angle |
90°(180°automatic rolling-over) |
Pre-points |
128 Pieces (max) |
Control method multi protocol |
RS485 |
Relative Humidity |
90% |
Working Temperature |
0°C~50°C |
Power |
AC 24V |
Power Consumption |
20VA |
Dimensions |
205x195mm |
Weight |
2kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
