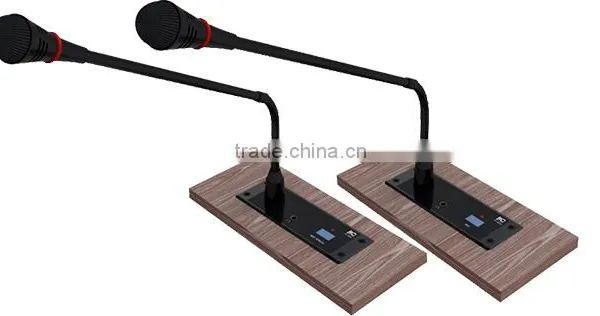

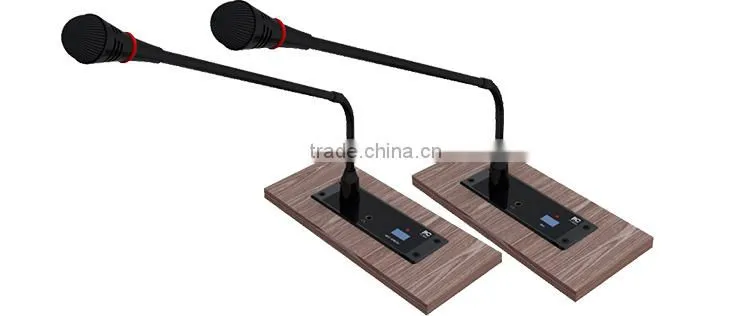

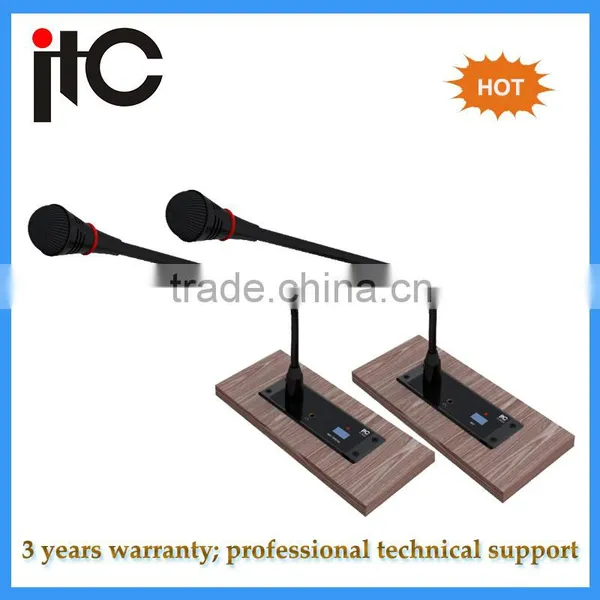

TS-0624 Embedded Chairman Discussion Audio conference mic system
* Embedded design, simple and bright appearance.
* Cardioid pickup pattern condenser microphone.
* With speech and apply dual-colored indicator, speech in red and apply in green.
* Screw fixed gooseneck microphone for easy installation and reliable connection.
* With earphone output for monitoring.
* Chairman unit with highest priority to control and management the whole system.
* Chairman unit could deny or approve the apply for speech from delegate unit.
* Chairman unit could be connected to anywhere of the system.
* Both of the microphone units are directly powered by human safe level DC24V from the controller.
* Expansion could be available through the connection box TS-0626 and TS-0626A.
* Frequency response 20-20,000Hz.
Model |
TS-0624/ TS-0624A |
Power Supply |
DC24V by controller |
Cable Connector |
8Pin |
Earphone Output |
9dBu, 8-32Ω, 3.5mmphone jack |
Microphone Type |
Condenser microphone |
Frequency Response |
20-20KHz |
S/N Ratio |
>90dB |
Distortion |
<0.1% |
Direction |
Cardioid pickup pattern |
Dimension |
129x45x35mm |
Cutout Size |
103x41x45mm |
Weight |
0.18Kg |
Color |
Black |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
