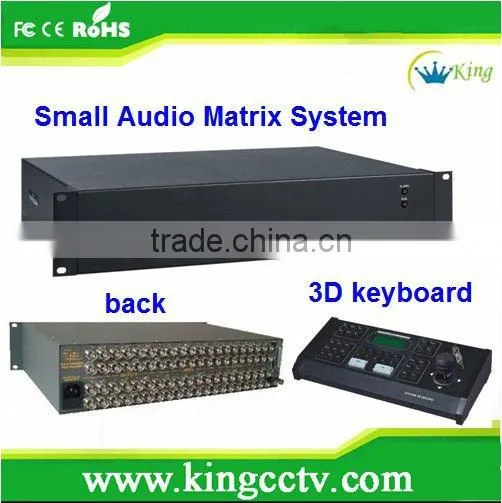

Small Audio Matrix (with Character-overlapping):HK-SA6416L

Name: Small Audio Matrix (with Character-overlapping):HK-SA6416L
Brand: Hyking
SKU: 127996785

US$ 475 - 1,118 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Hyking

Model Number:

HK-SA6416

Shenzhen KingCCTV Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Hyking

Model Number HK-SA6416

Specifications

64CH Small Audio Matix:HK-SV3216L
*Strong network
*with character-overlapping
*2U Matrix system
*Digital Audio Matrix

Small Audio Matrix (with character-overlapping):HK-SA6416L

1. Moduled computer; High Density Design;

2. Up to 64ch cameras and 16 monitors in one Standalone DVR;

3. Integrated menu design with English and Chinese option;

4. Keyboard password input and operation priority;

5. partitioned management ;

6. Process, synchronization, group multiple switch modes;

7. Video switch, audio switch and alarm control simultaneously

8. Control constant speed / variable speed PTZ camera;

9. Build in 16ch alarm input and 2ch alarm output;

10. Alarm trigger with video switch;

11. Programmable alarm output;

12. RS485 protocol, RS232 protocol; RS422 protocol

13. Up to 16 sub-control keyboards control; Up to 16 host matrix cascade;

14. Strong network control

power	<50WAC220V +10% / 50Hz
signal input	1Vp-p (75 ohm negative, unbalanced)
video output	1Vp-p (75 ohm negative, unbalanced)
video signal to noise ratio	50dB (weighted)
Video isolation	50dB (weighted)
video bandwidth	25MHz (-3dB)
differential phase typical value	2%
Differential gain typical value	2%
interface	BNC interface
video format	CCIR and PAL system
audio input value	0-2Vp-p
Audio output power	0.5W (8W)
audio signal to noise ratio	48dB (weighted)
Audio isolation	48dB (weighted)
audio bandwidth	30KHz (-3dB)
switching time	<10 ms
audio interface	RCA socket
ambient temperature	-10 °C ~ -55 °C
ambient temperature	< 90% RH (non-condensing)
size	485mm (L) × 310mm (W) × 90mm (H) to 2U examp
