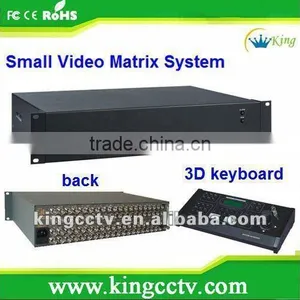

Small CCTV Matrix switcher

Specifications

video matrix system video matrix switcher
64ch input, 16ch output
16ch in, 2ch out (alarm)
RS485, RS232 & RS422
network

video matrix system video matrix switcher





Small CCTV Matrix





1. Moduled computer; High Density Design;



2. Up to 64ch cameras and 16 monitors in one Standalone DVR;



3. Integrated menu design with English and Chinese option;



4. Keyboard password input and operation priority;



5. partitioned management ;



6. Process, synchronization, group multiple switch modes;



7. Video switch, audio switch and alarm control simultaneously



8. Control constant speed / variable speed PTZ camera;



9. Build in 16ch alarm input and 2ch alarm output;



10. Alarm trigger with video switch;



11. Programmable alarm output;



12. RS485 protocol, RS232 protocol; RS422 protocol



13. Up to 16 sub-control keyboards control; Up to 16 host matrix cascade;



14. Strong network control



Technical Index


output can be expanded to 16 video output, input can be expanded to 64-way video input, input with loop-through design
the first video with text overlay feature title
the use of matching built-in IP control module and the design of video servers, IP networks can operate on the matrix host and switch the video image browsing, and remote cameras and systems to control access
the use of high-density 2U module card portfolio structure, portfolio expansion
to set the keyboard on the monitor, the camera powers; system partition set
hot backup host matching the design of more secure the stability of the host
audio / video input and output ports and communication interfaces are surge lightning protection measures and anti-interference design
audio / video switching cards, alarm input card, follow the control card can be inserted into one to form an integrated monitoring console
16 minutes to control an external keyboard
carrying the whole of Chinese and English menu, the matrix can be pre-set function, input with loop-through design
alarm can be linked to automatically open the camera and lighting, automatic image switch preset point and start the video
can be preset in any way Standoff warning: regular, manual, often cloth / a garrison and police record inquiries



power	<50WAC220V +10% / 50Hz
signal input	1Vp-p (75 ohm negative, unbalanced)
video output	1Vp-p (75 ohm negative, unbalanced)
video signal to noise ratio	50dB (weighted)
Video isolation	50dB (weighted)
video bandwidth	25MHz (-3dB)
differential phase typical value	2%
Differential gain typical value	2%
interface	BNC interface
video format	CCIR and PAL system
audio input value	0-2Vp-p
Audio output power	0.5W (8W)
audio signal to noise ratio	48dB (weighted)
Audio isolation	48dB (weighted)
audio bandwidth	30KHz (-3dB)
switching time	<10 ms
audio interface	RCA socket
ambient temperature	-10 °C ~ -55 °C
ambient temperature	<90% RH (non-condensing)
size	485mm (L) × 310mm (W) × 90mm (H) to 2U examp
